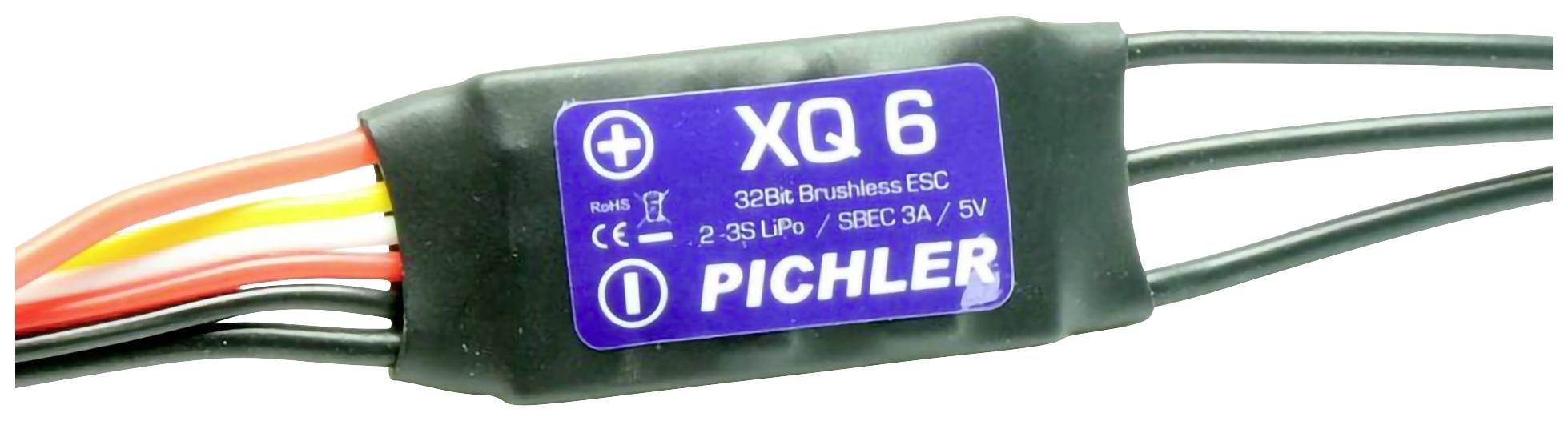

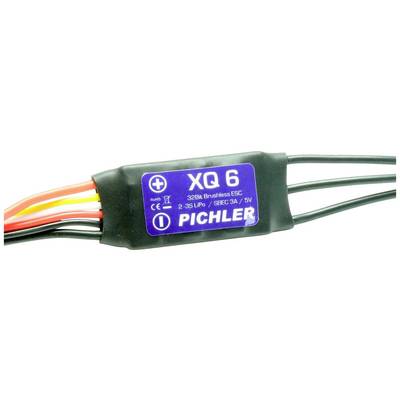

Pichler Modellbau XQ+ 6 Model aircraft brushless motor controller Load (Amp max.): 10 A
EAN:
Part number:
Item no:
Highlights & Details
Brushless regulator XQ+ 6
- Forward/reverse operation can be switched via your remote control transmitter
- Easy programming via new programming box or via Bluetooth / mobile phone APP
- Ready to connect, with XT30 battery plug and JR/Uni signal cable
Technical specifications
- Cells LiPo / NiXX = 2 -3 / 5 -10
- Plug = XT30 + JR/Uni
- Product type
Model aircraft brushless motor controller
- Permanent current
6 A
- Dim
(L x W x H) 32 x 15 x 11 mm
- Load (max.)
10 A
- Weight
9 g
- BEC data
3 A (5 V)
- No. of LiPo cells
2 -3
- No. of NiCd/NiMH batteries
5 -10
- Width
15 mm
- Height
11 mm
- Length
32 mm
- Connector system
XT30
- Plug-in battery
XT30
- Motor connector system
Uni (Graupner / JR / Futaba)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3014618 Pichler Modellbau XQ+ 6 Model aircraft brushless motor controller Load (Amp max.): 10 A
Description
The running behavior is equally good with all the common external motors as well as inner motors. Non-critical operation even in partial load range. All settings such as direction of rotation, battery type, start-up and cut-off voltage, timing, brake, etc. can be easily carried out.
Setting Options
Brake
Timing
Rotation direction
Forward/reverse (SMR)
Active free wheel (SR)
Battery type
Low-voltage switch-off
Start-up behavior
Switch-off behavior
This text is machine translated.
Setting Options
Brake
Timing
Rotation direction
Forward/reverse (SMR)
Active free wheel (SR)
Battery type
Low-voltage switch-off
Start-up behavior
Switch-off behavior
This text is machine translated.
Features
- Ideal for flight models
- 32-bit microprocessor
- Extremely sensitive control behavior
- Selected, high-quality MOSFET transistors
- Powerful, integrated BEC receiver power supply
- For all common brushless motors (external rotor or internal rotor)
- 1000-fold proven top quality
- Special accessories (recommended)
- Programming box, # 15966
- Bluetooth module ESC, # 15932
