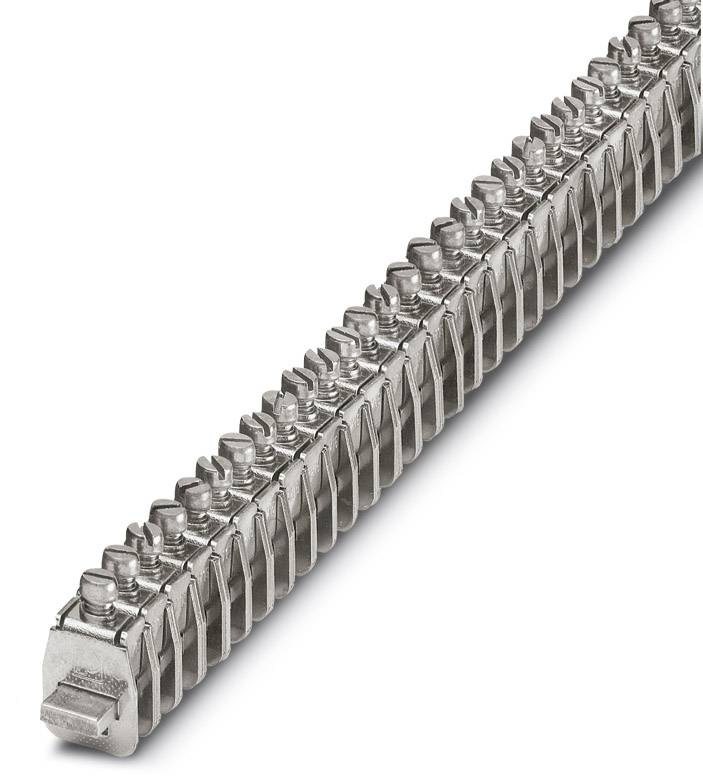

Image similar

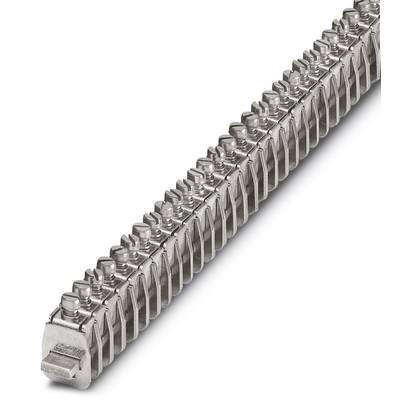

Image similar
Pick-off terminal block AK 16 0404033 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Terminal
Connection
Screws
Cross section (flexible) (max.)
16 mm²
Cross section (inflexible) (max.)
16 mm²
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 0.74 / piece)
€ 45.37
-19 %
€ 36.97
plus VAT.
Only 3 Set(s) available
Highlights & Details
Pick-off terminal block AK 16
- AK 16
Technical specifications
- Packaging type
Piece
- Product type
Terminal
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
1.5 mm²
- Cross section (flexible) (max.)
16 mm²
- Cross section (inflexible) (min.)
1.5 mm²
- Cross section (inflexible) (max.)
16 mm²
- AWG (min.)
16
- AWG max.
6
- Clamp width
9.8 mm
- Factory colour
Silver
- Nominal current
76 A
- Nominal current - rounded value
76 A
- Stripping length (max.)
16 mm
- Manufacturer part #
0404033
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
AK 16
- Dim
(L x W) 16 mm x 9.8 mm
- Width
9.8 mm
- Length
16 mm
- Flammability rating
V2
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 716651 Pick-off terminal block AK 16 0404033 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 716651 Pick-off terminal block AK 16 0404033 Phoenix Contact
Description
Pick-off terminal block, Connection method Screw connection, Load current : 76 A, Cross section: 1.5 mm² - 16 mm², Width: 9.8 mm, Color: silver
