Name: Picotronic 70107982 DOE lens (Ø x H) 11 mm x 4 mm
Brand: Picotronic
SKU: 2987361

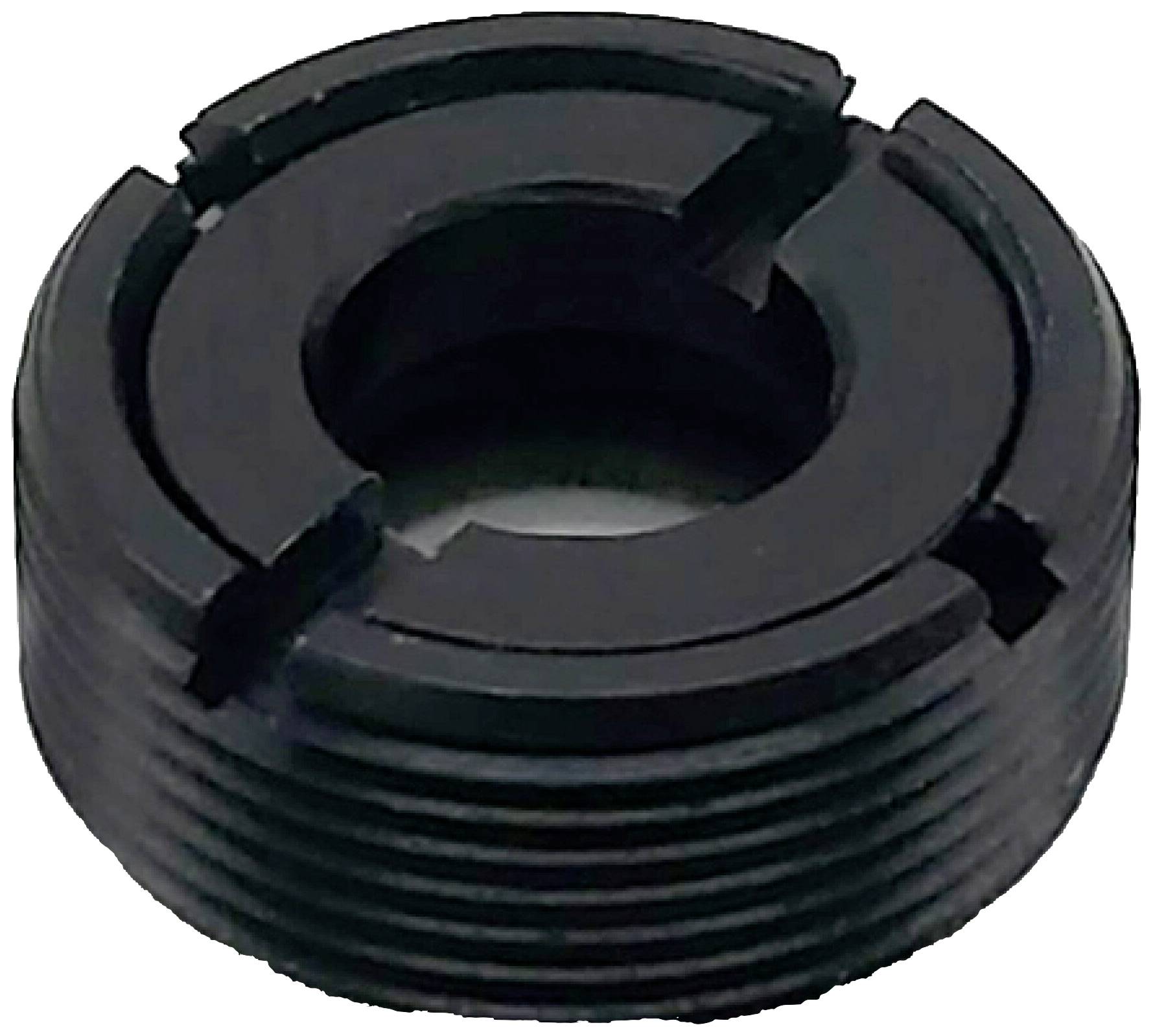

'Black metal screw with four notches and a central hole, on a light background. Used in mechanical applications.'

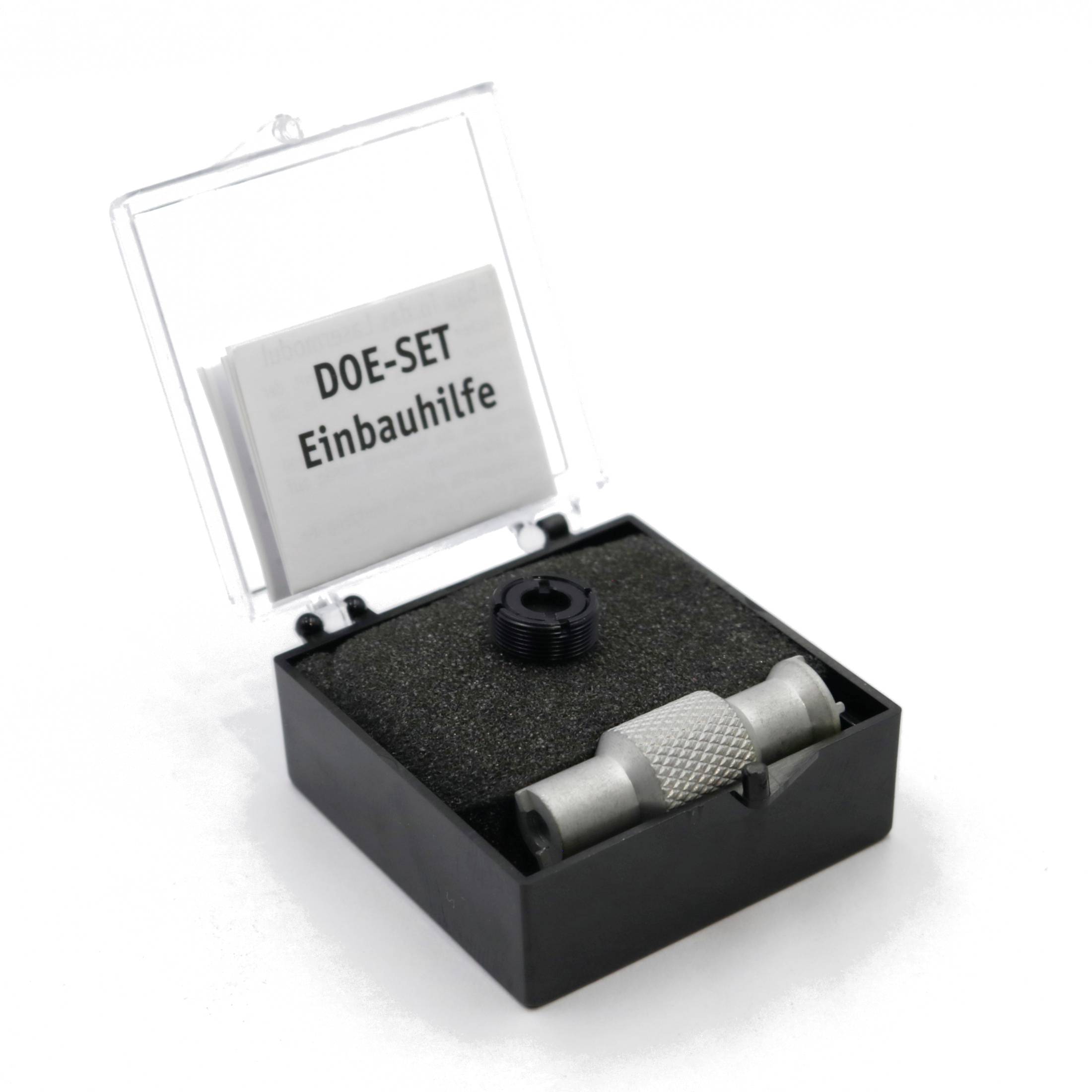

Small black suitcase with foam insert. Contains silver tool and black component. Label reads: 'DOE-SET Installation Aid'.

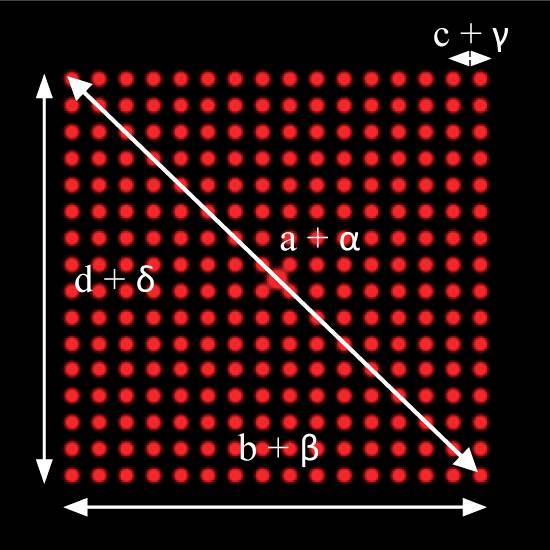

'Image of a grid network with brightly red points on a black background. Arrows indicate diagonal and horizontal directions, labelled with 'a + α', 'b + β', 'c + γ', 'd + δ'.'

1/3

Product type

DOE lens

Dim

(Ø x H) 11 mm x 4 mm

(Ø)

11 mm

Height

4 mm

RoHS-compliant

Yes

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Diffraction optical element

Our service for you

Technical specifications

Diameter (without bracket) 8 mm
Thickness (without mounting plate) 1.2 mm
Material PC

Product type: DOE lens

Dim: (Ø x H) 11 mm x 4 mm

(Ø): 11 mm

Height: 4 mm

RoHS-compliant: Yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2987361 Picotronic 70107982 DOE lens (Ø x H) 11 mm x 4 mm

Conformity certificate

Conformity certificate 2987361 Picotronic 70107982 DOE lens (Ø x H) 11 mm x 4 mm

Description

The diffractive optical element (DOE) type is an optics for the projection of 16x16 points. At a distance of 100mm from the DOE to the projection surface, the points have a distance of and a total length of . At a wavelength of 633nm , the angle between two points is an angle of . Any point laser source can be used for application.
