Name: Picotronic 70108040 DOE lens (Ø x H) 11 mm x 4 mm
Brand: Picotronic
SKU: 2987392

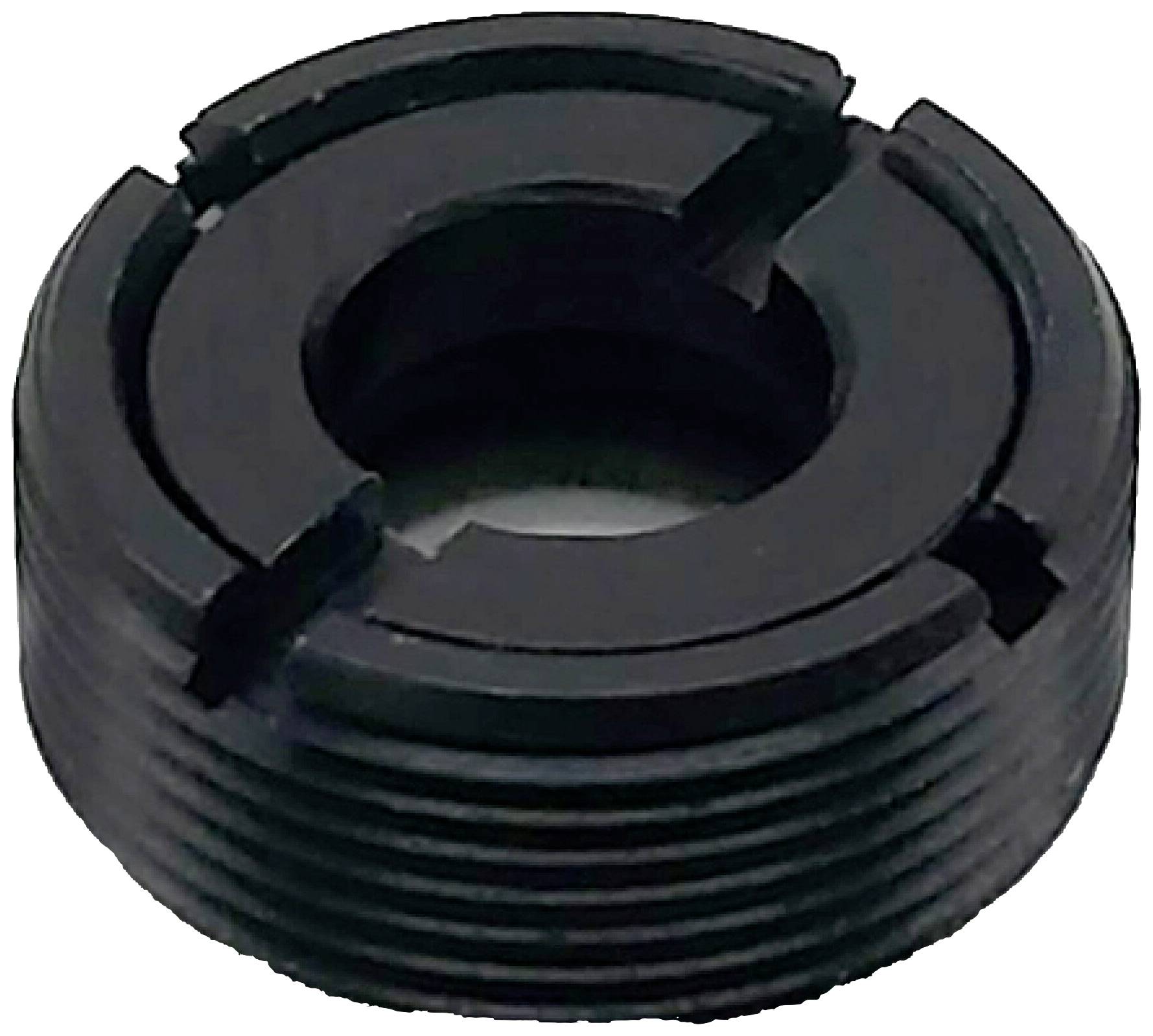

Round, ribbed, black metal nut, likely used as a connecting element in mechanical engineering or industrial applications.

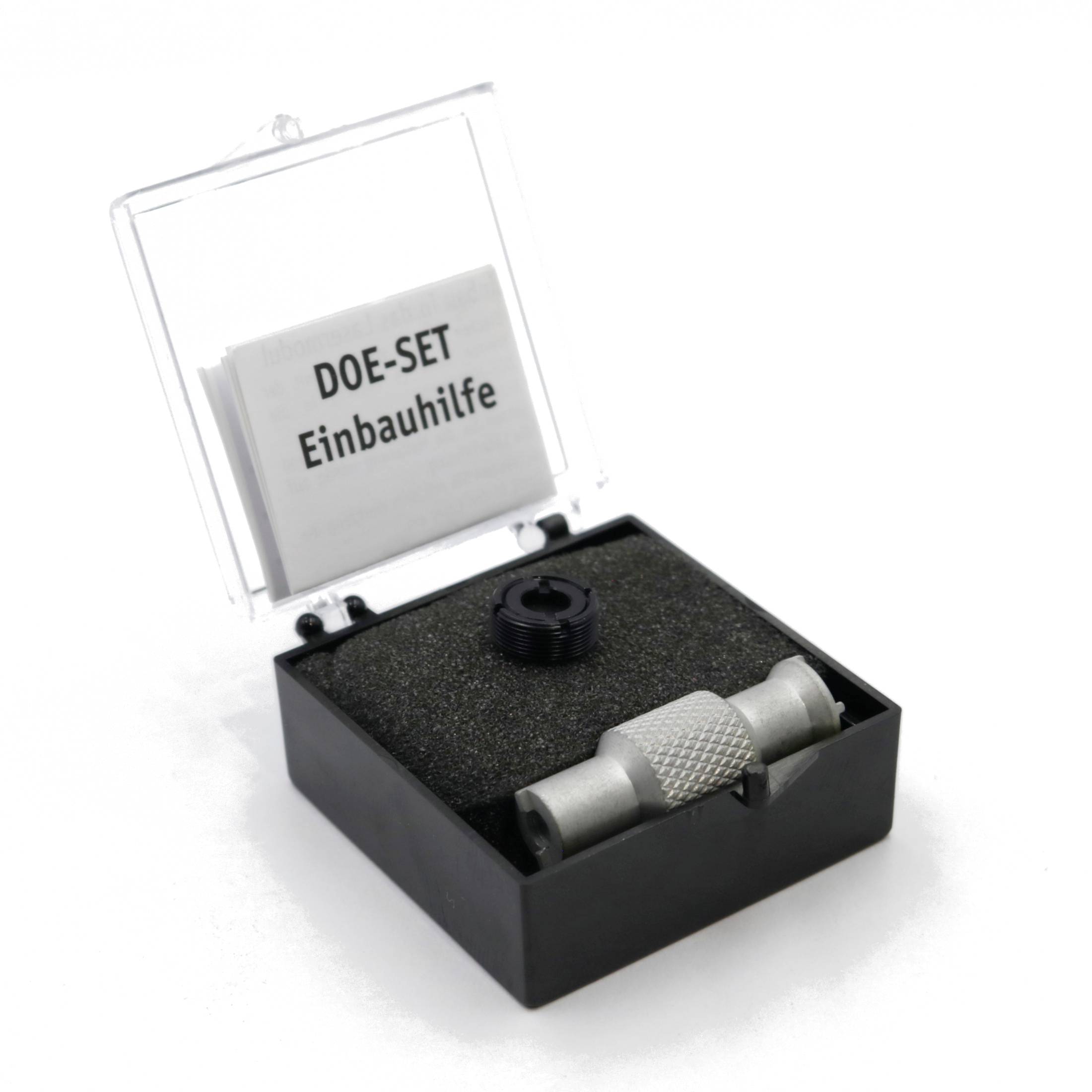

A black box contains a silver tool called 'DOE-SET Installation Aid' and an insert with foam.

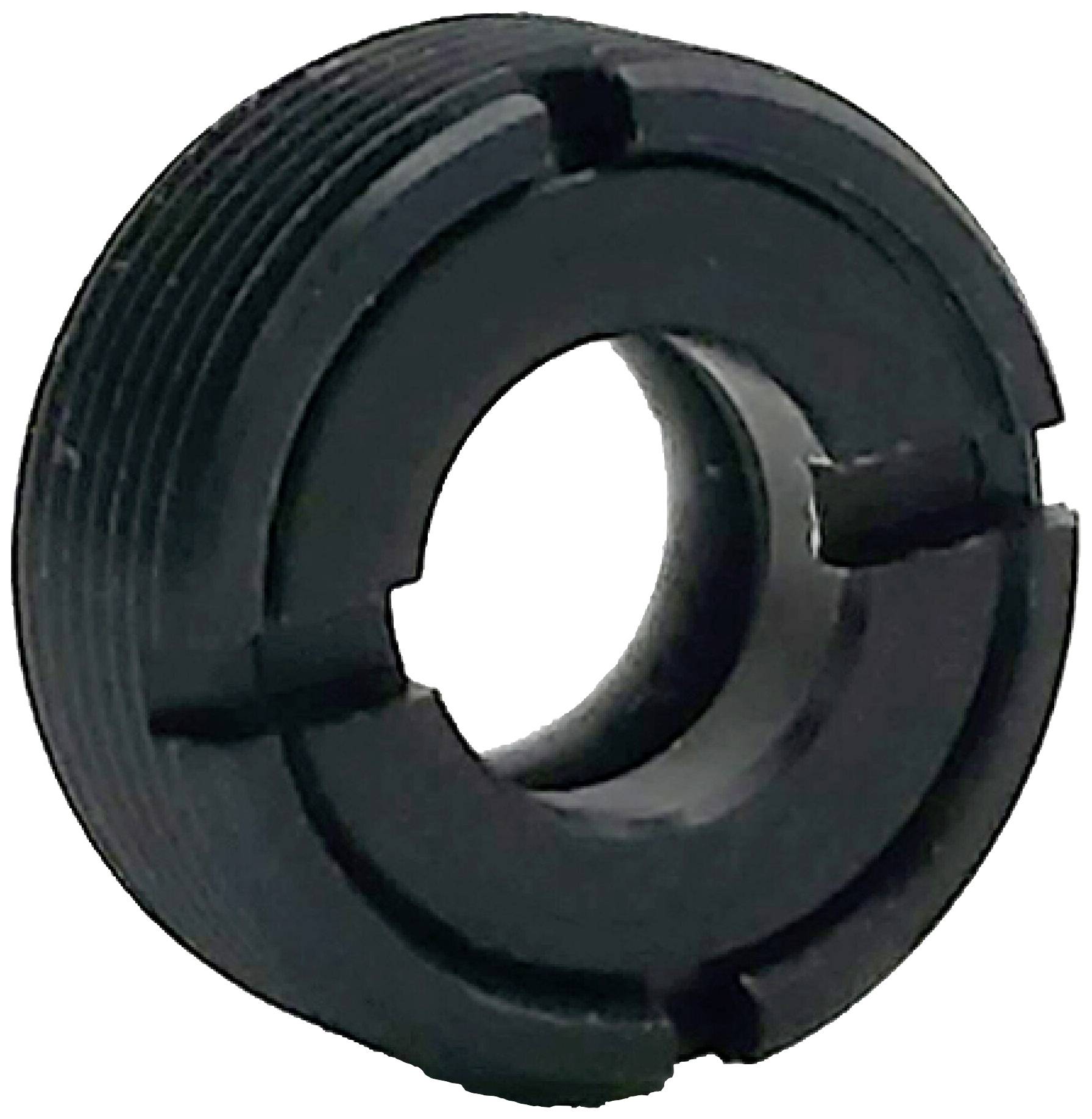

'A black, cylindrical machine part with multiple grooves and recesses, likely a fastening component.'

Cross-like red line on a black background with a white double-headed arrow and the label 'a + a' between the horizontal lines.

1/4

Product type

DOE lens

Dim

(Ø x H) 11 mm x 4 mm

(Ø)

11 mm

Height

4 mm

RoHS-compliant

Yes

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Diffraction optical element

Our service for you

Technical specifications

Diameter (without bracket) 8 mm
Thickness (without mounting plate) 1.2 mm
Material PC

Product type: DOE lens

Dim: (Ø x H) 11 mm x 4 mm

(Ø): 11 mm

Height: 4 mm

RoHS-compliant: Yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2987392 Picotronic 70108040 DOE lens (Ø x H) 11 mm x 4 mm

Conformity certificate

Conformity certificate 2987392 Picotronic 70108040 DOE lens (Ø x H) 11 mm x 4 mm

Description

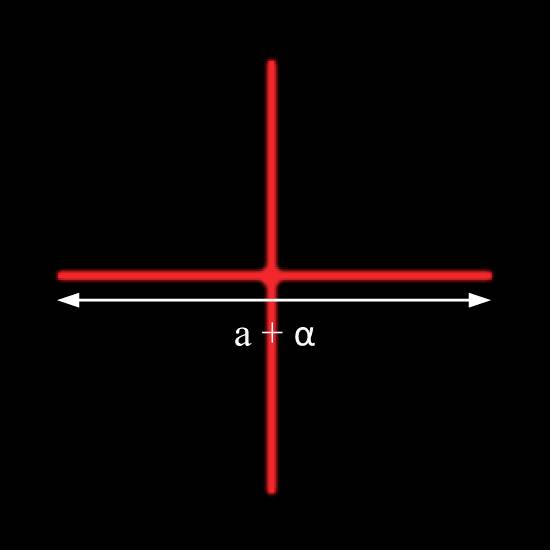

The diffractive optical element (DOE) type is an optical object for projecting a symmetrical cross. At a distance of 100mm from the DOE to the projection surface, the cross has a length of . A wavelength of 633nm results in an opening angle of . Any point laser source can be used for application.
