Picotronic Alignment laser Line 16 mW 70146790
EAN:
Part number:
Item no:
Product type
Alignment laser
Emission characteristics
Line
Power
16 mW
(Ø)
5.5 mm
Length
90 mm
Highlights & Details
Laser floor marking
- Laser category: 2
- Emission characteristics: Line
Technical specifications
- Material: Aluminium
- Optical power 16 mW
- Lifetime 5000 h
- Operating temperature: - 20 °C to 50 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Line
- Class 2 laser
- Divergent: H - 1.0 mrad
- Aperture angle: 90 °
- 5 m operating distance
- Optics: Anti-reflex coated glass lenses
- Laser technology: Diode
- Focus: Fixed (3000mm)
- Potential of the enclosure: VDD(+)
- Cable length 1,400 mm
- Outlet diameter of optical 5.5 mm
- Product type
Alignment laser
- Type
70146790
- Emission characteristics
Line
- Focus properties
3000 mm fixed-focus
16 mW
- (Ø)
5.5 mm
- Length
90 mm
- Laser category
2
- Angular aperture
90°
- Beam divergence
1.0 mrad
- Clearance
5 m
- Operating voltage
3 V DC
- Operating current
70 mA
- Material
Aluminium
- Dim
(Ø x L) 5.5 mm x 90 mm
- Weight
161 g
- RoHS-compliant
Yes
- Width
16 mm
- Max. temperature
50 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987693 Picotronic Alignment laser Line 16 mW 70146790
Information
Information 2987693 Picotronic Alignment laser Line 16 mW 70146790
Conformity certificate
Conformity certificate 2987693 Picotronic Alignment laser Line 16 mW 70146790
Description
Features
- Laser floor marking. Simple. Flexible. Sustainable.

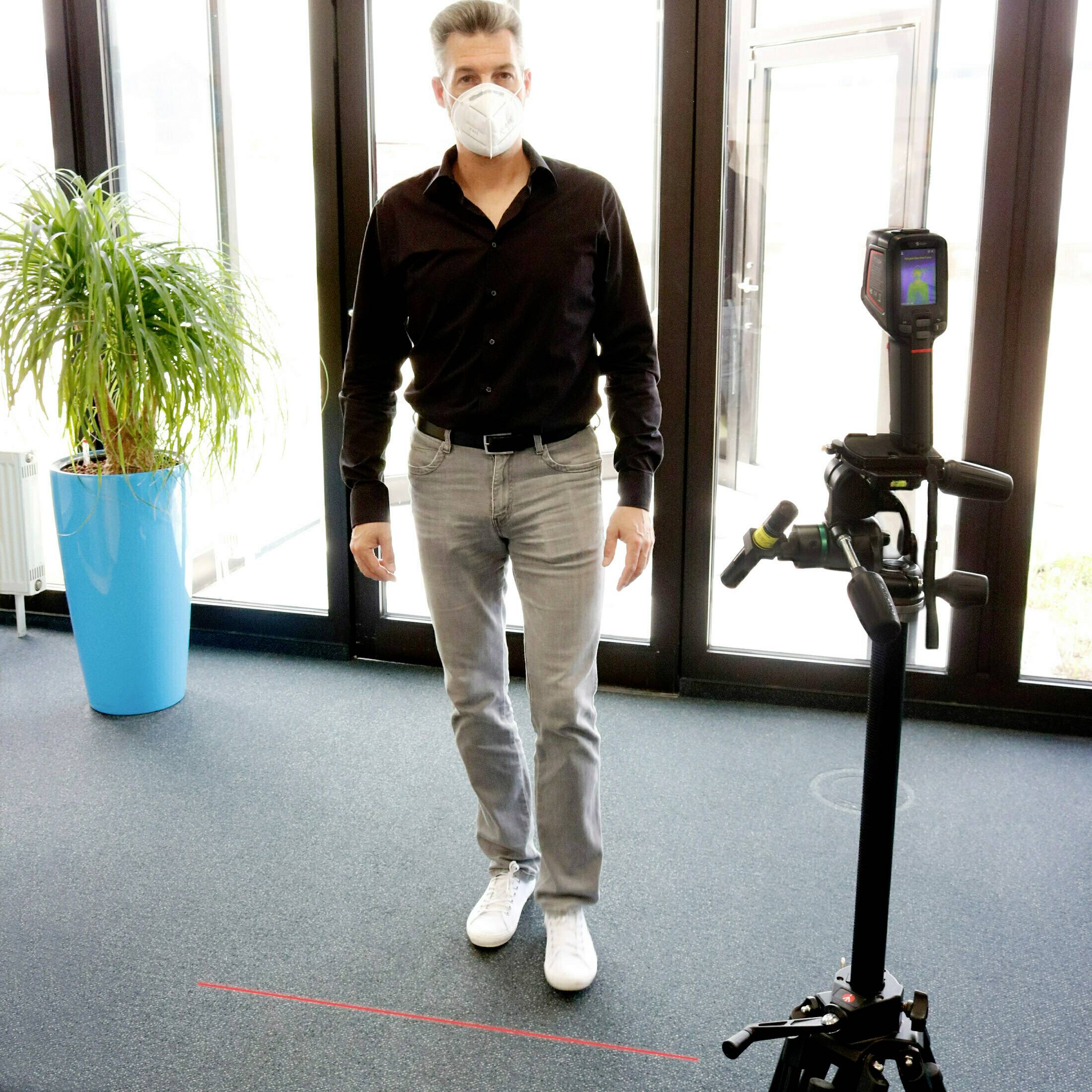

- This laser was developed especially by Picotronic for the current corona situation, in order to simply and quickly project a laser line as a distance marking on the ground. The pre-assembled power supply and the included mounting brackets make installation very easy and straightforward. Unlike the adhesive tapes and floor stickers used so far, this solution is sustainable, flexible and leaves no residue. The aperture angle of 90° projects a clearly visible 2m long line at a distance of 1m. In addition, this high-quality laser module is characterized by a high degree of efficiency, low power consumption and a long service life of over 5,000 hours.
- Key features:
- Environment-friendly and flexible solution for floor marking
- Easy mounting and installation
- High efficiency
- Sturdy metal casing.
- Lifespan of up to 5,000 hours

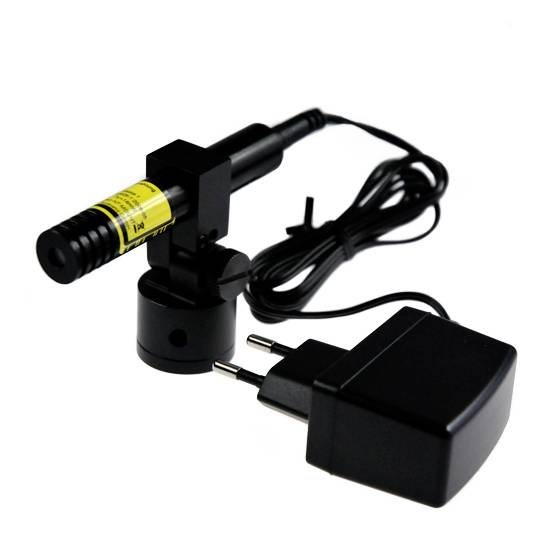

- incl. super smash bros. Mains adapter and laser holder
- This text is machine translated.
