Picotronic Alignment laser Line 20 mW
EAN:
Part number:
Item no:
Product type
Alignment laser
Emission characteristics
Line
Wavelength
650 nm
Power
20 mW
(Ø)
20 mm
Highlights & Details

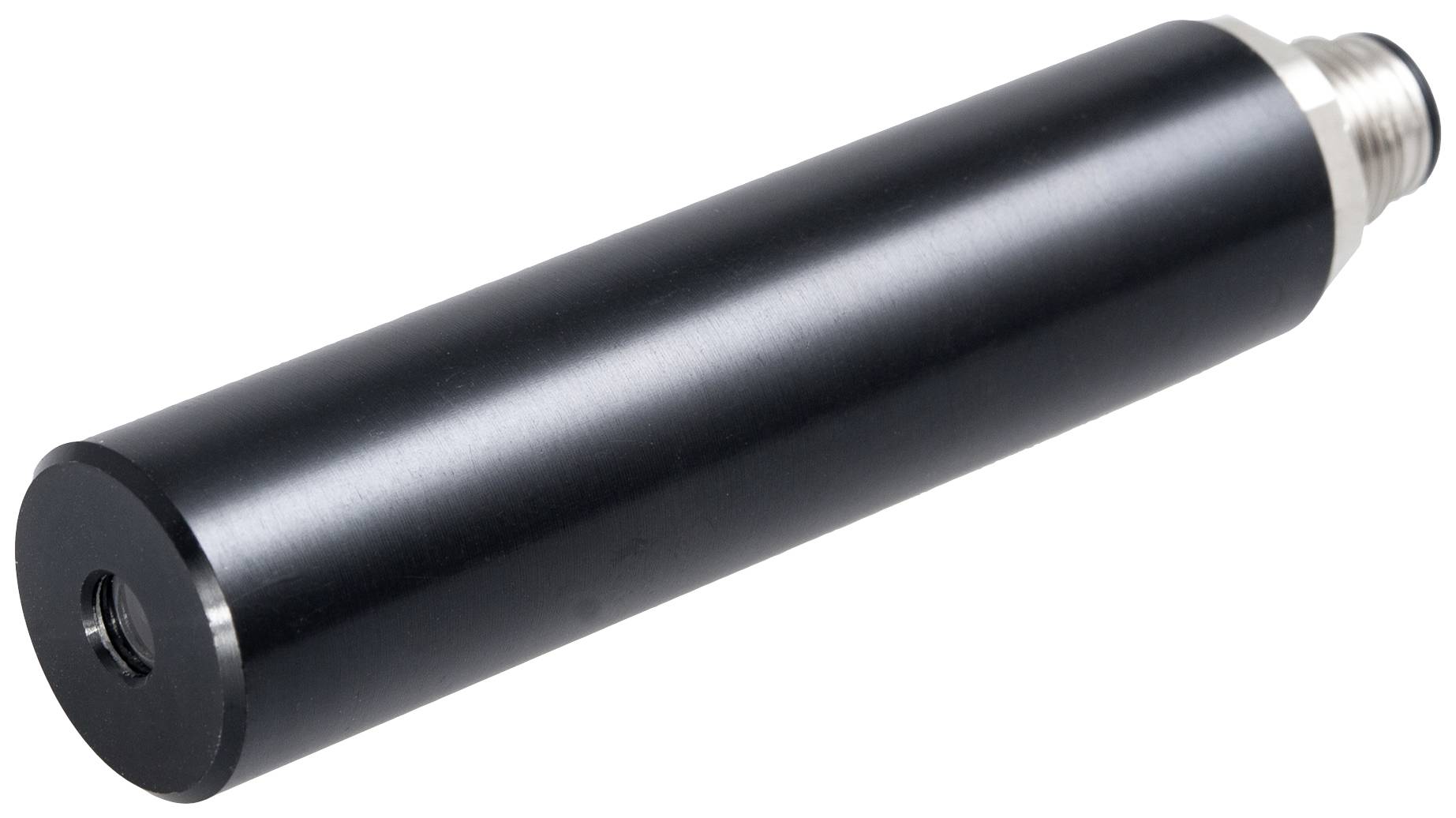

Line laser, red, 650nm, 20mW, 90°, laser class 2M, focus 3M, 24V DC, 20x80mm, M12 connector without cable
- Laser category: 2M
- Emission characteristics: Line
Technical specifications
- Material: Aluminium
- Optical power 20 mW
- Lifetime 10,000 h
- Operating temperature: - 20 °C to 50 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Line
- Class 2M laser
- Divergent: H - 1.0 mrad
- Aperture angle: 90 °
- 3 m operating distance
- Optics: Anti-reflex coated glass lenses
- Laser technology: Single mode diode
- Focus: Fixed (3000mm)
- Potential of the housing: Isolated
- Outlet diameter of optical 5.5 mm
- Black enclosure
- Protective lens: Yes
- IP 64 protection
- Product type
Alignment laser
- Emission characteristics
Line
- Focus properties
3000 mm fixed-focus
- Wavelength
650 nm
20 mW
- (Ø)
20 mm
- Length
80 mm
- Laser category
2M
- Angular aperture
90°
- Beam divergence
1.0 mrad
- Clearance
3 m
- Operating voltage
24 V DC
- Operating current
20 mA
- Material
Aluminium
- Dim
(Ø x H) 20 mm x 80 mm
- Weight
63 g
- RoHS-compliant
Yes
- Width
20 mm
- Height
80 mm
- Max. temperature
50 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987409 Picotronic Alignment laser Line 20 mW
Information
Information 2987409 Picotronic Alignment laser Line 20 mW
Conformity certificate
Conformity certificate 2987409 Picotronic Alignment laser Line 20 mW
Description
Features
- Line laser, red, 650nm, 20mW, 90°, laser class 2M, focus 3M, 24V DC, 20x80mm, M12 connector without cable
- The LH650-20-24(20x80)-M12 is a line laser for projecting a red laser line. The laser module emits 650nm wavelength radiation. The laser has a compact design (20x80mm). The service life of the laser module is greater than 10,000 hours. The angle of 90° generates a line of 6 m in length at a distance of 3M. This line laser is used in laser marking systems, for component positioning, in industry, trade, hobby and show sector. This module is in the class 2M laser.
- Radiation characteristic: Line, line thickness 1.5mm@3m
- Optical output: 20mW (laser class 2M); focus 3M

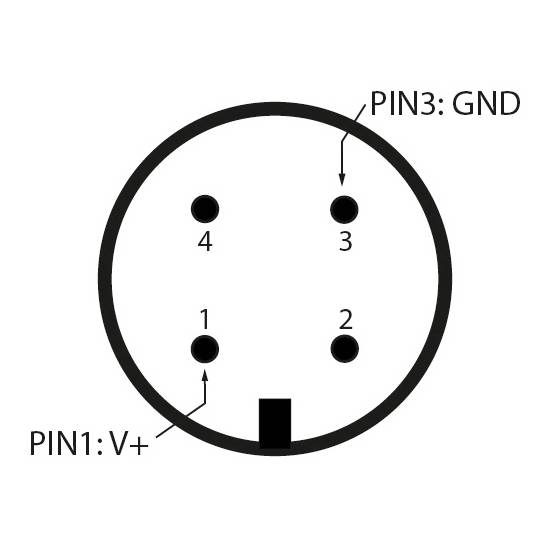

- Compact design: 20x80mm; opening angle: 90°; axis deviation: Up to 3.0°, M12 connector without cable

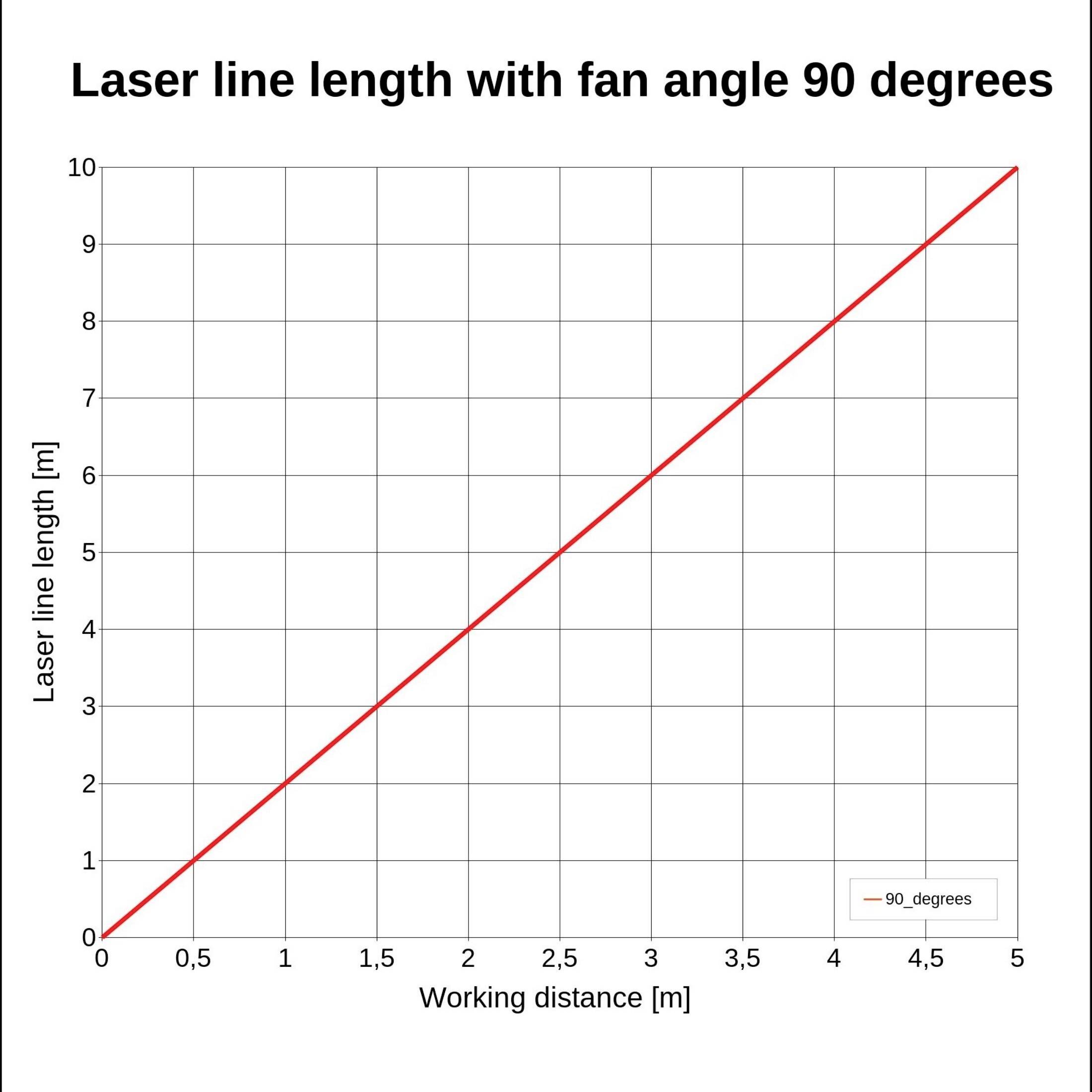

- The opening angle (90°) generates a laser line length of 6m at a working distance of 3M.
- For applications in e.g. laser marking systems, the robot technology and the show area. Voltage supply 24V. You can use our power supply unit Picotronic LFNT-24-C-M12, for example
- This text is machine translated.
