Name: Picotronic Alignment laser Line 5 mW
Brand: Picotronic
SKU: 2987649

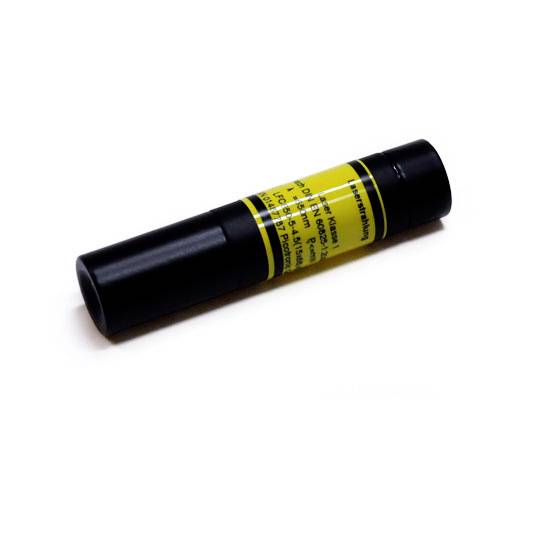

Black lip balm stick with a yellow label on a white background.

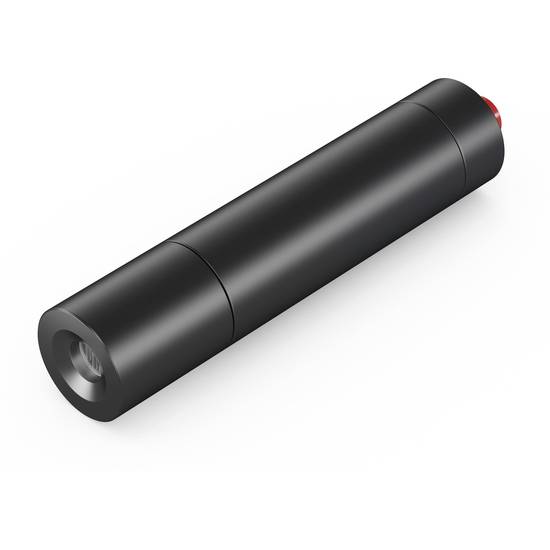

Black cylindrical object with a red button at the end.

A black rectangle with a thin horizontal red line in the middle.

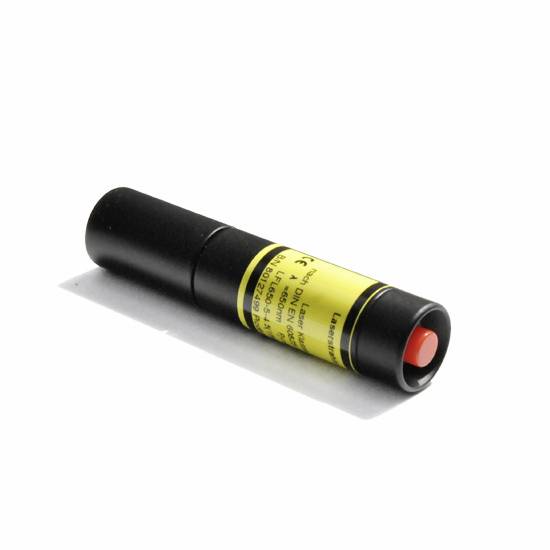

A black laser pointer with a yellow label and red button lies on a white background.

A tape measure and a red laser beam are pointing at a wooden surface. The laser runs parallel to the tape measure, indicating length.

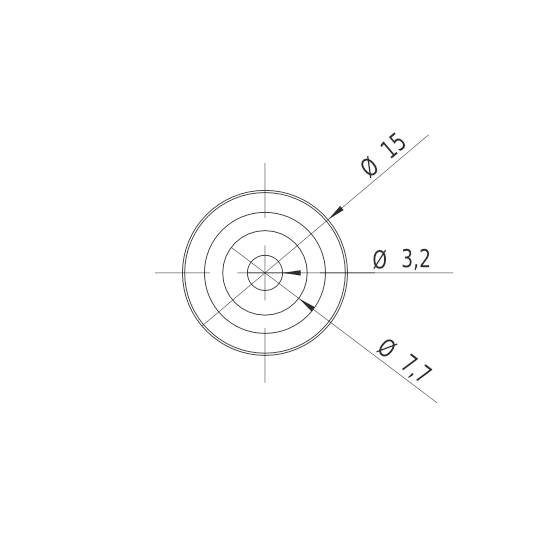

Technical drawing of a circle with three concentric rings. Outer diameter 3.2 mm, line indicates inner diameter 0.7 mm.

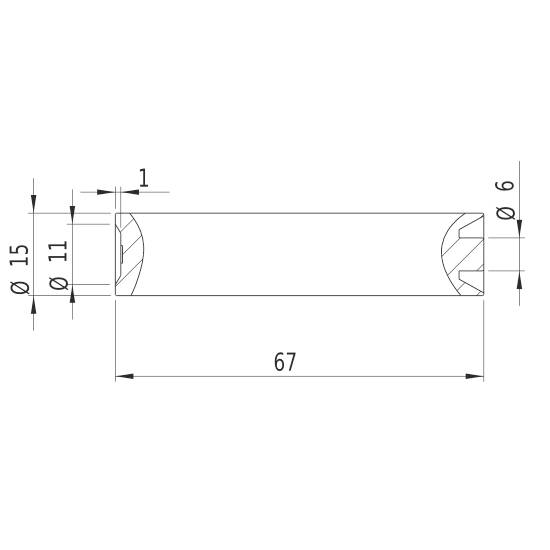

Technical drawing of a cylindrical object with a diameter of 15 mm and a length of 67 mm, lateral diameter 11 mm.

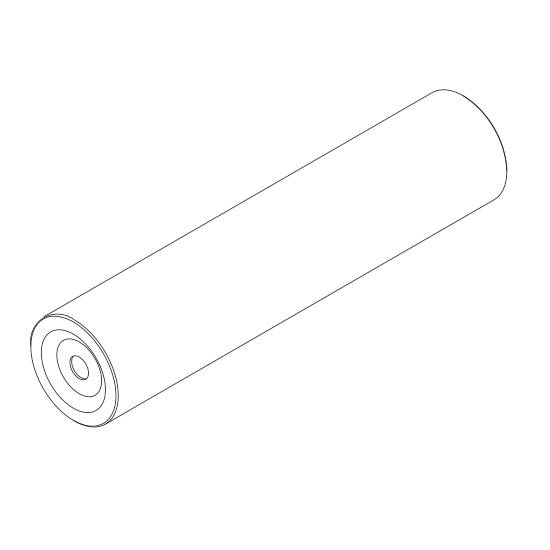

A simple, linear drawing of a cylindrical object tilted to one side, with a concentric pattern at one end.

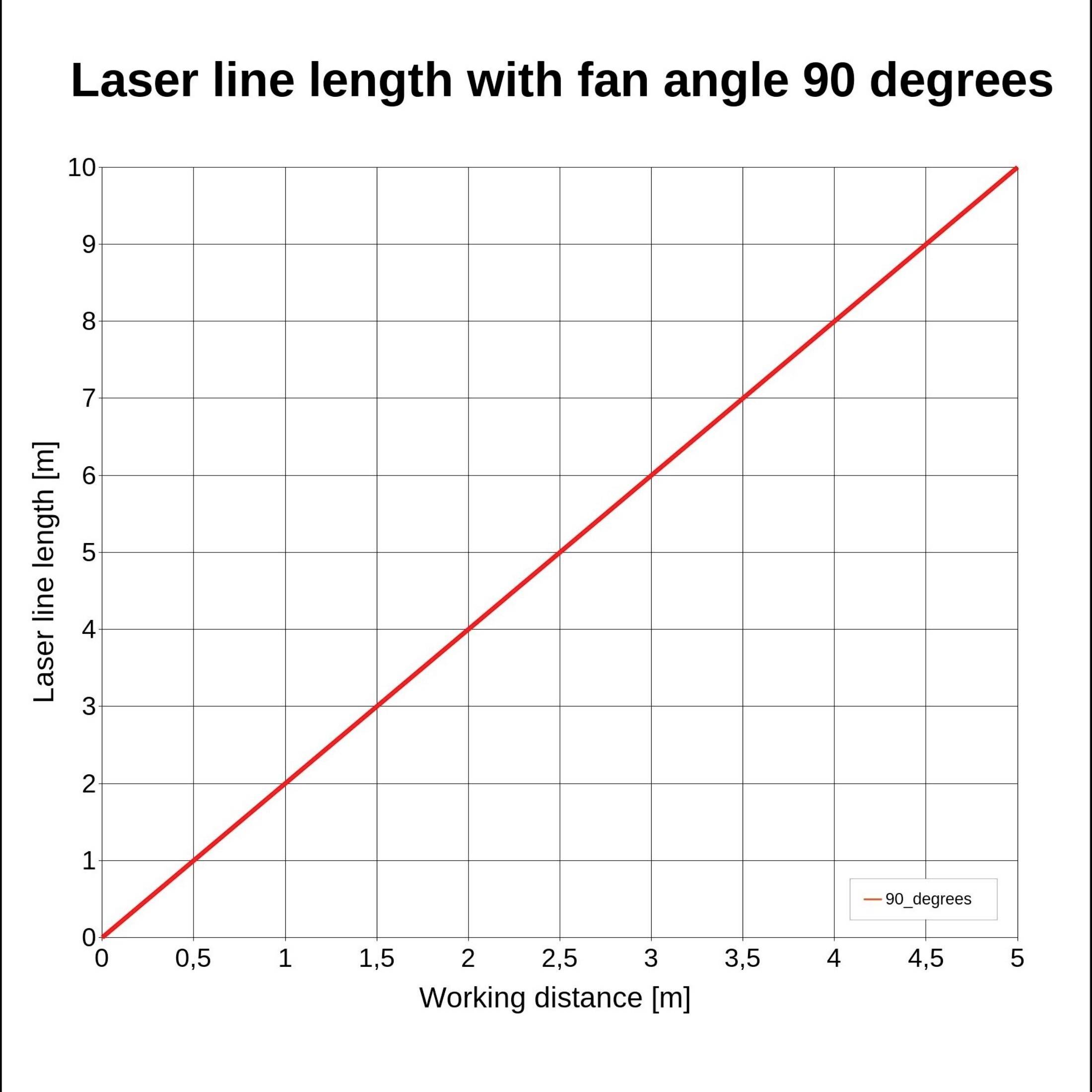

The diagram shows a linear increase in laser line length from 0 to 10 metres with a working distance of 0 to 5 metres at a fan angle of 90 degrees.

1/9

Product type

Alignment laser

Emission characteristics

Line

Wavelength

650 nm

Power

5 mW

(Ø)

15 mm

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Line laser, red, 650nm, 5mW, 90°, Laser class 1; Focus 2m, 3V DC, 15x68mm, battery mode

Laser category: 1
Emission characteristics: Line

Technical specifications

Material: Aluminium
Optical power 5 mW
Lifetime 3,000 h
Operating temperature: - 20 °C to 50 °C
Storage temperature: -40°C to 80 °C.
Beam form: Line
Class 1 laser
Divergent: H - 1.0 mrad
Aperture angle: 90 °
2 m operating distance
Acrylic lens
Laser technology: Single mode diode
Focus: Fixed (2000mm)
Potential of the enclosure: VDD(+)
Outlet diameter of optical 6 mm
Protective lens: Yes

Product type: Alignment laser

Emission characteristics: Line

Focus properties: 2000 mm fixed-focus

Wavelength: 650 nm

: 5 mW

(Ø): 15 mm

Length: 68 mm

Laser category: 1

Angular aperture: 90°

Beam divergence: 1.0 mrad

Clearance: 2 m

Operating voltage: 3 V DC

Operating current: 20 mA

Material: Aluminium

Dim: (Ø x L) 15 mm x 68 mm

Weight: 25 g

RoHS-compliant: Yes

Max. temperature: 50 °C

Min. temperature: -20 °C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2987649 Picotronic Alignment laser Line 5 mW

Information

Information 2987649 Picotronic Alignment laser Line 5 mW

Conformity certificate

Conformity certificate 2987649 Picotronic Alignment laser Line 5 mW

Features

Line laser, red, 650nm, 5mW, 90°, Laser class 1; Focus 2m, 3V DC, 15x68mm, battery mode
The type LH650-5-3(15x68)90 is a laser for projection of a red laser line. The laser module emits 650nm wavelength radiation. The module contains 2 button cells (LR44), which are included in the delivery and enable a wireless operation over several hours. The laser has a very compact design (15x68mm). Press the switch at the end of the laser module once and the laser is switched on permanently. Repeated operation switches off the laser again. The opening angle (90°) creates a laser line length of 4m at a working distance of 2m. For applications in industry, trade, hobby or show sector. This module falls into the laser class 1.
Latch switch: Press the switch at the end of the laser module once and the laser is permanently switched on. Repeated operation switches off the laser again.
Radiation characteristics: Line, line thickness 2mm@2m
Optical output: 5mW (laser class 1); focus: 2m
Compact design: 15x68mm; opening angle: 90°; axis deviation up to 3.0°; the opening angle (90°) produces a laser line length of 4m at a working distance of 2m.
For presentations, for positioning of objects and applications in industry, trade, hobby or show sector. Delivery includes two button cells LR44.
Two LR44 batteries are included in the delivery.
