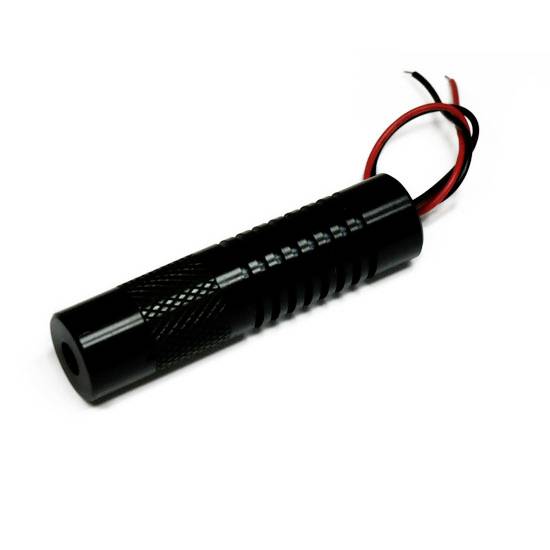

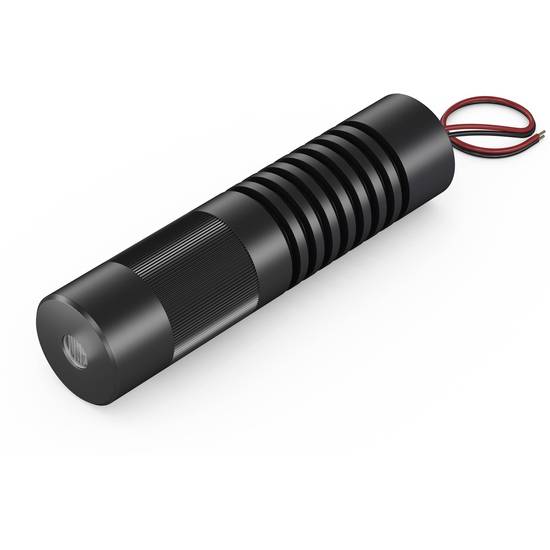

Picotronic DOE laser DOE 5 mW 70142280
EAN:
Part number:
Item no:
Product type
DOE laser
Emission characteristics
DOE
Wavelength
520 nm
Power
5 mW
(Ø)
3 mm
Highlights & Details
Focusable DOE laser module, green laser diode, 520nm, 5mW, 3V DC, 16x65mm, Class 1
- Laser category: 1
- Emission characteristics: DOE
Technical specifications
- Material: Aluminium
- Optical power 5 mW
- Life: 6000 h
- Operating temperature: -10°C - 60 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: DOE
- Class 1 laser
- Divergence D - 0.5 mrad
- 3 m operating distance
- Optics: Anti-reflex coated glass lenses
- Laser technology: Single mode diode
- Focus adjustable
- Potential of the housing: Isolated
- Potential of the housing: IsoletFocus: Adjustable
- Cable color GND: Black
- Cable length 100 mm
- Cable type: 26AWG, 0.14mm²
- Outlet diameter of optical 3 mm
- Black enclosure
- Internal modulation frequency 1 kHz
- Product type
DOE laser
- Type
70142280
- Emission characteristics
DOE
- Focus properties
adjustable
- Wavelength
520 nm
5 mW
- (Ø)
3 mm
- Length
65 mm
- Laser category
1
- Angular aperture
52°
- Beam divergence
0.5 mrad
- Clearance
3 m
- Operating voltage
3 V DC
- Operating current
180 mA
- Material
Aluminium
- Dim
(Ø x L) 3 mm x 65 mm
- Weight
16 g
- RoHS-compliant
Yes
- Width
16 mm
- Max. temperature
80 °C
- Min. temperature
-40 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987695 Picotronic DOE laser DOE 5 mW 70142280
Information
Information 2987695 Picotronic DOE laser DOE 5 mW 70142280
Conformity certificate
Conformity certificate 2987695 Picotronic DOE laser DOE 5 mW 70142280
Description
Features
- Focusable DOE laser module, green laser diode, 520nm, 5mW, 3V DC, 16x65mm, Class 1, Internal Modulation, with DOE-DE-R342 (cross 52°@ 515 nm)
- With DOE342 (70128345)
- Low power consumption
- Direct green laser diode with 520nm
- Class 1 laser
