Picotronic Fibre laser

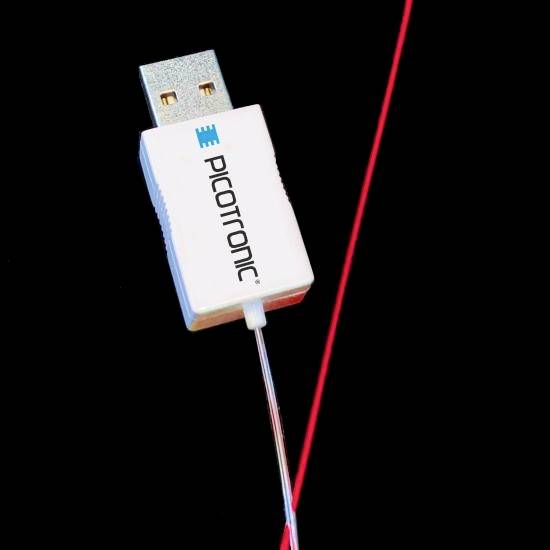

A white USB module with the inscription 'PICOTRONIC', to which a thin cable with a red light beam is connected.

A white USB module with the inscription 'PICOTRONIC', to which a thin cable with a red light beam is connected.

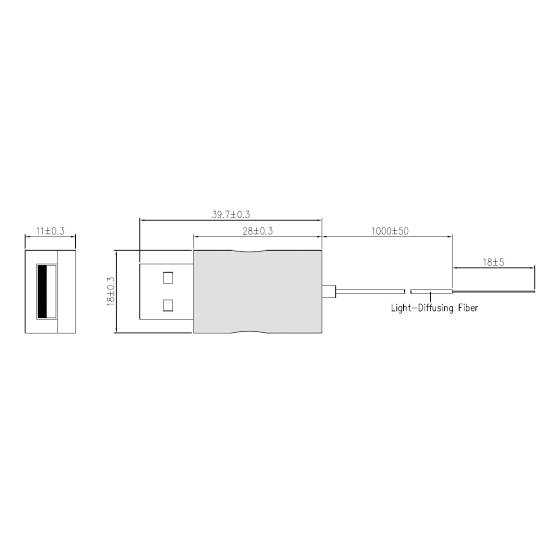

Technical drawing of a USB cable with dimensions in mm: Total length 1000±50, USB plug 28±0.3 x 11±0.3, optical fibre 18±5.

1/4

Product type

Fibre laser

Length

39 mm

Laser category

2M

Operating voltage

5 V DC

Operating current

50 mA

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Fiber laser module, red, 638nm, 1mW, 5V DC, 18x39x11mm, class 2M, light diffuse fiber, fiber length 1m, USB type A connector

Laser category: 2M

Technical specifications

Material: Aluminium / Plastic
Optical power 1 mW
Lifetime: 5000h
Operating temperature: -10°C ~ 50 °C
Storage temperature: -20°C - 85°C.
Beam form: Fibre
Class 2M laser
1m operating distance
Optics:Glass-lens AR-coated
Laser technology: Single mode diode
Potential of the housing: Isolated
Black enclosure
Wavelength: 638nm (red)

Product type: Fibre laser

Length: 39 mm

Laser category: 2M

Operating voltage: 5 V DC

Operating current: 50 mA

Material: Aluminium
Plastic

Dim: (L x W x H) 39 x 18 x 11 mm

Weight: 7 g

RoHS-compliant: Yes

Width: 18 mm

Height: 11 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2987652 Picotronic Fibre laser

Information

Information 2987652 Picotronic Fibre laser

Conformity certificate

Conformity certificate 2987652 Picotronic Fibre laser

Features

Fiber laser module, red, 638nm, 1mW, 5V DC, 18x39x11mm, class 2M, light diffuse fiber, fiber length 1m, USB type A connector
This text is machine translated.

Description

Features

Fiber laser module, red, 638nm, 1mW, 5V DC, 18x39x11mm, class 2M, light diffuse fiber, fiber length 1m, USB type A connector
