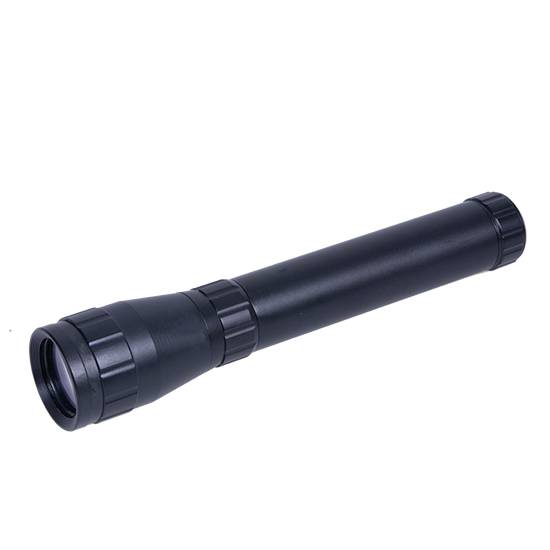

Picotronic Laser module Black 520 nm 70126181
EAN:
Part number:
Item no:
Product type
Laser module
Wavelength
520 nm
Type
70126181
Factory colour
Black
Laser category
2M
Technical specifications
- Material: Aluminium
- Optical power 8 mW
- Life: 6000 h
- Operating temperature: -10°C - 60 °C
- Storage temperature: -40°C to 80 °C.
- Divergence I - 1.5 mrad
- 1,000 m operating distance
- Optics: Anti-reflex coated glass lenses
- Laser technology: Single mode diode
- Focus adjustable
- Potential of the enclosure: VDD(+)
- Outlet diameter of optical 25 mm
- Product type
Laser module
- Type
70126181
- Factory colour
Black
- Wavelength
520 nm
- Laser category
2M
- Operating current
100 mA
- Dim
(Ø x H) 35 mm x 182 mm
- (Ø)
35 mm
- RoHS-compliant
Yes
- Height
182 mm
- Max. operating voltage
6 V DC
Documents & Downloads
Information
Information 2987769 Picotronic Laser module Black 520 nm 70126181
Conformity certificate
Conformity certificate 2987769 Picotronic Laser module Black 520 nm 70126181
Description
Features
- Picotronic green laser designator 8mW expander dot laser module, green laser diode, 520nm, 2xCR123A, focusable, battery-powered
- Eye safety rating
- Long range
- High visibility
- Battery-powered
- Adjustable dot size
- This text is machine translated.
