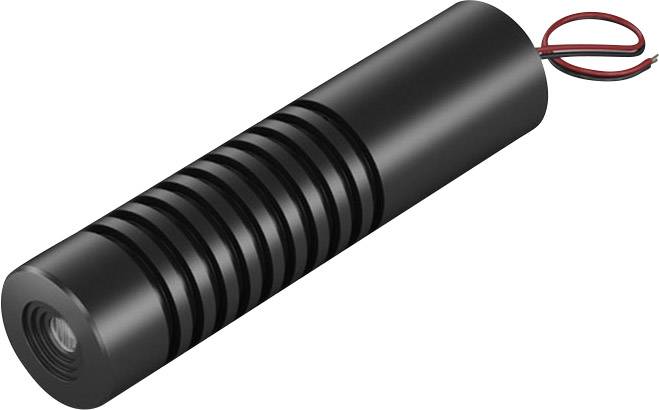

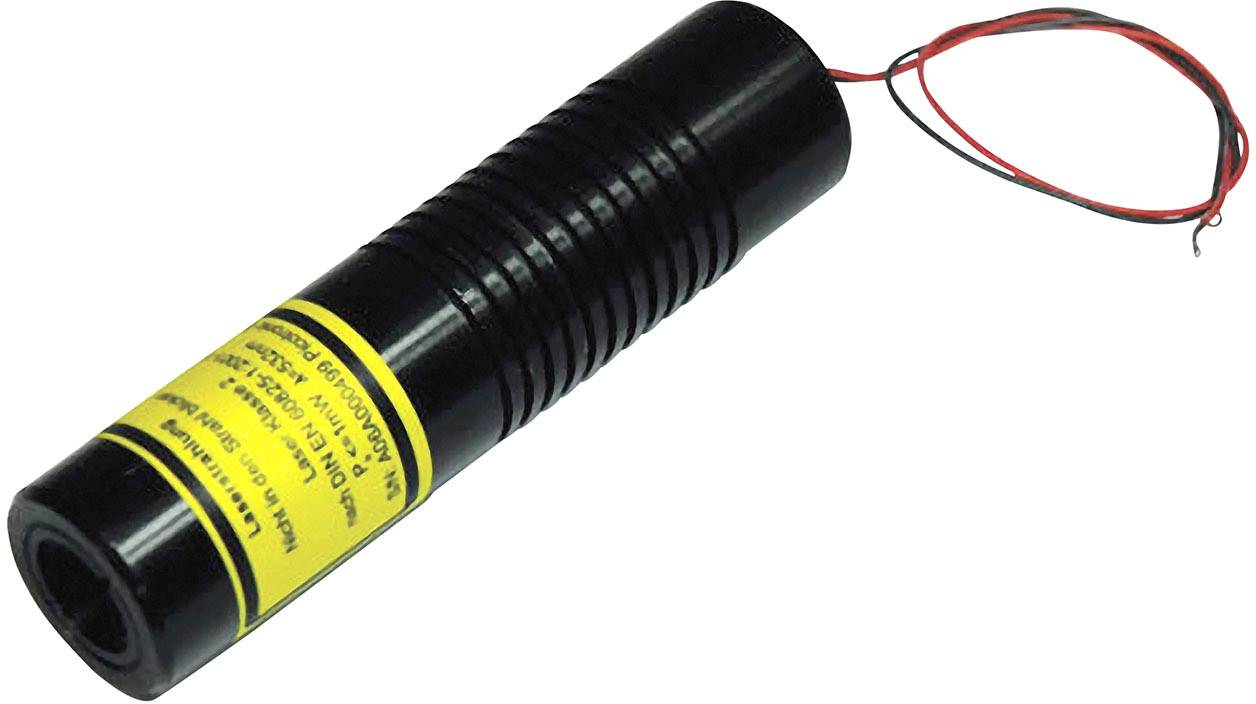

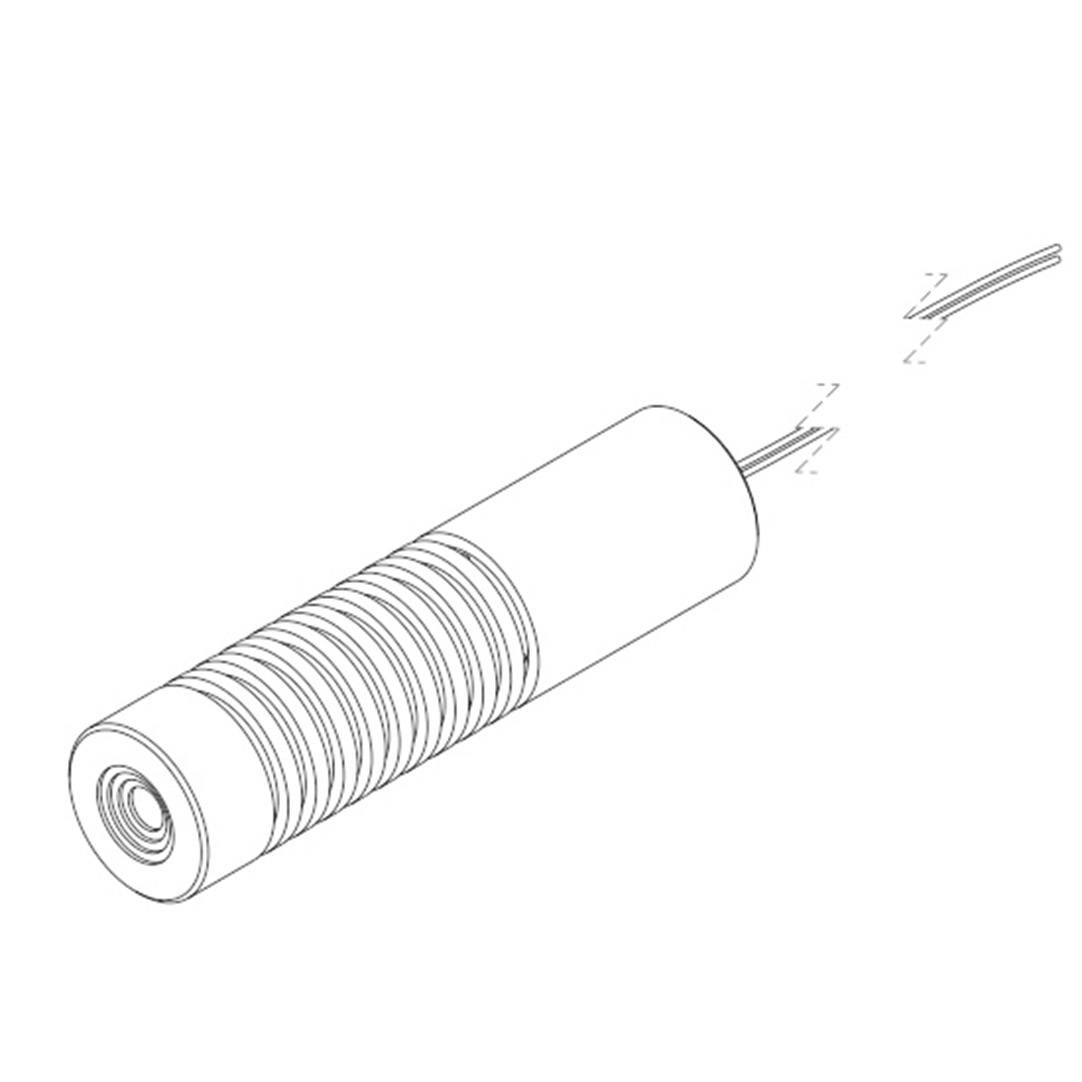

Picotronic Laser module Cross line Green 10 mW CA 532-10-3 (20x80)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 373.95 / piece)
€ 373.95
plus VAT.
Only 3 Piece(s) available
Highlights & Details
Cross laser, green
- Green
- Laser category: 1
- Emission characteristics: Cross line
Technical specifications
- Type
CA 532-10-3 (20x80)
- Emission characteristics
Cross line
- Focus properties
3000 mm fixed-focus
- Factory colour
Green
- Wavelength
532 nm
10 mW
- Laser category
1
- Angular aperture
90°
- Beam divergence
0.2 mrad
- Clearance
5 m
- Operating voltage
3 V DC
- Operating current
220 mA
- Material
Aluminium

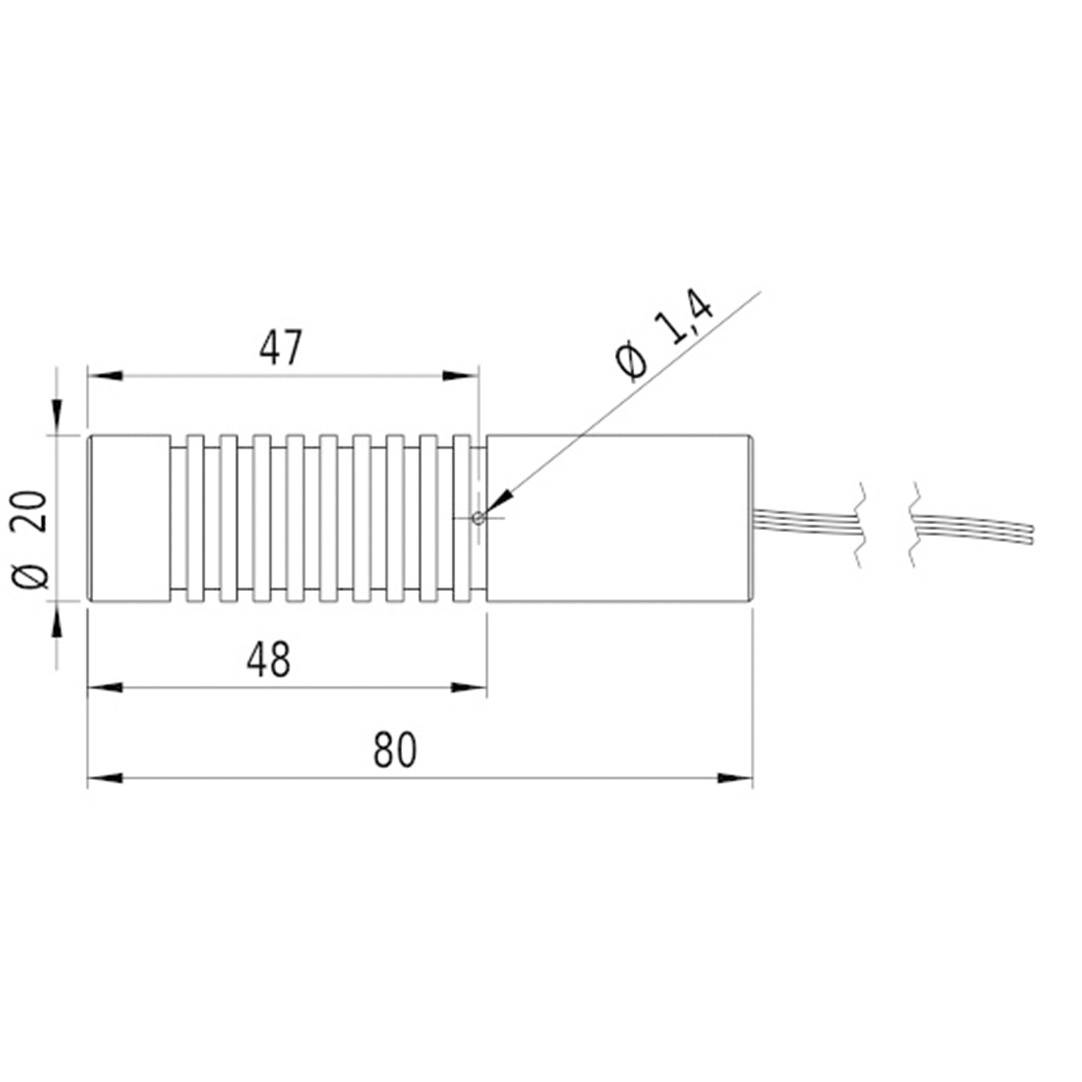

- Dim
(Ø x L) 20 mm x 80 mm
- Weight
57 g
- RoHS-compliant
Yes

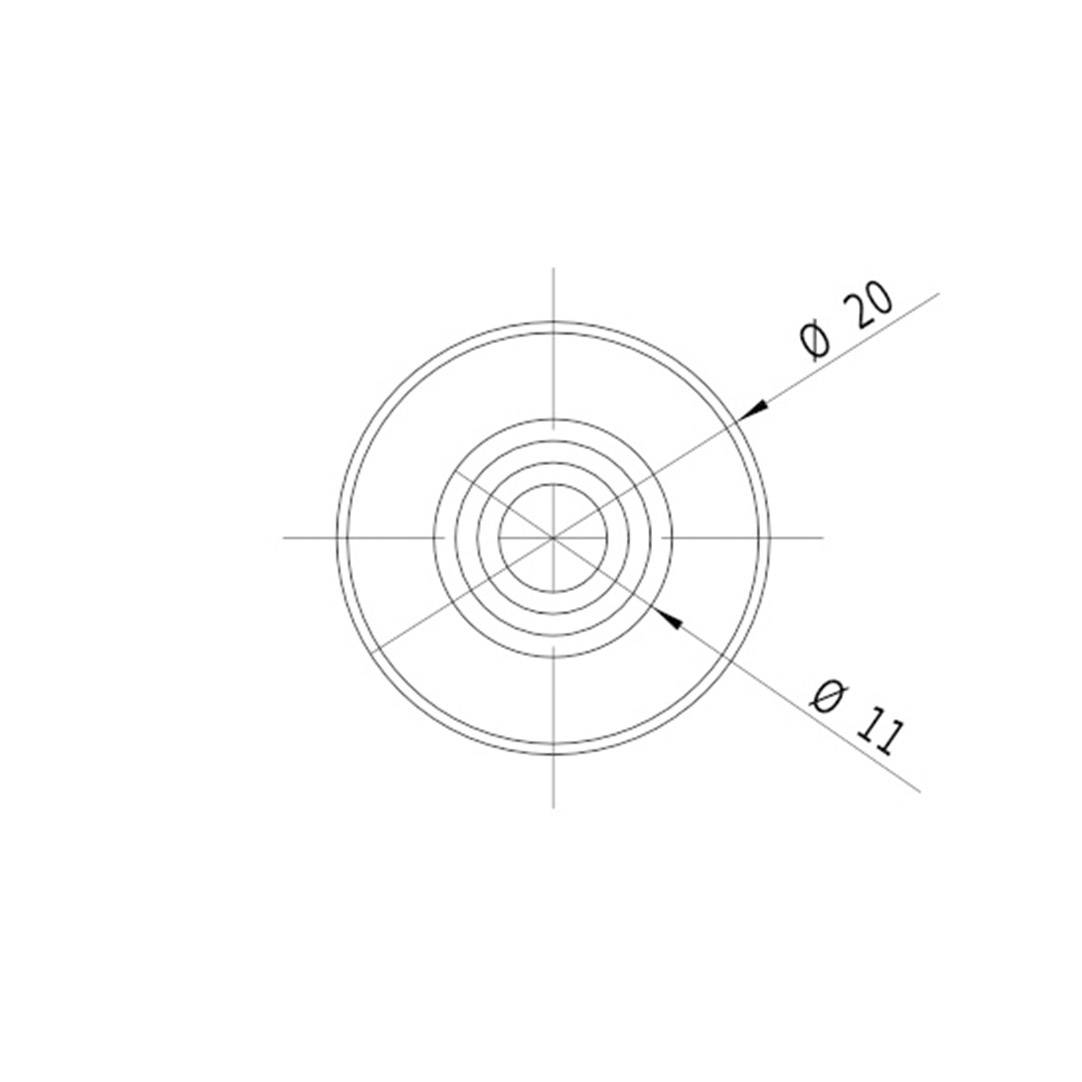

- (Ø)
20 mm
- Length
80 mm
- Max. temperature
30 °C
- Min. temperature
15 °C
- Product type
Laser module
Documents & Downloads
Datasheet
Datasheet 1283432 Picotronic Laser module Cross line Green 10 mW CA 532-10-3 (20x80)
User & Safety Instructions
User & Safety Instructions 1283432 Picotronic Laser module Cross line Green 10 mW CA 532-10-3 (20x80)
Information
Information 1283432 Picotronic Laser module Cross line Green 10 mW CA 532-10-3 (20x80)
Conformity certificate
Conformity certificate 1283432 Picotronic Laser module Cross line Green 10 mW CA 532-10-3 (20x80)
Description
Hints
Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
