Cylindrical lithium-ion battery with two protruding cables for electrical connection, on a white background.

Cylindrical lithium-ion battery with two protruding cables for electrical connection, on a white background.

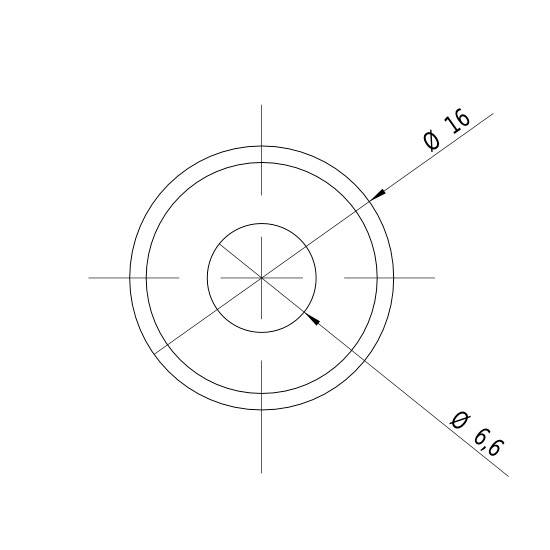

Technical drawing of a circle with two diameters. The outer circle has Ø 16, the inner circle Ø 6.6.

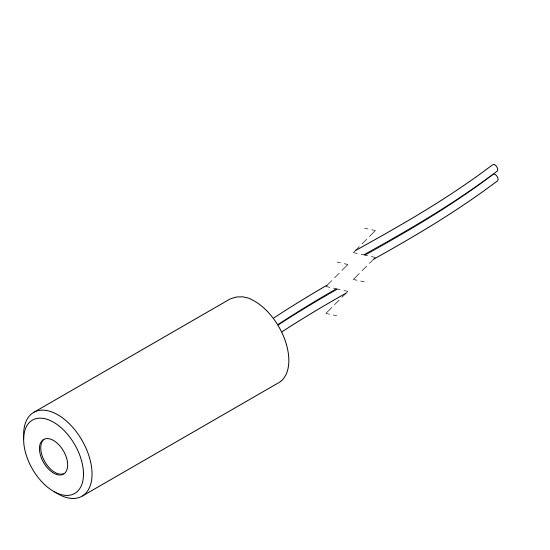

A cylindrical object with two protruding wires, possibly an electronic component or sensor, against a white background.

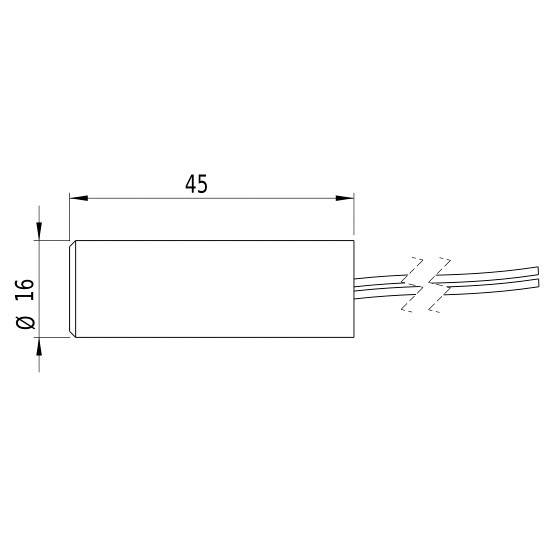

Cylindrical component in a technical drawing with dimensions: diameter 16 mm, length 45 mm. Cables protruding on the right side.

1/4

Product type

Laser module

Emission characteristics

Cross

Wavelength

635 nm

Power

5 mW

Laser category

2M

Datasheet (PDF)

English

Picotronic

Dispatches on Thu, 1 Oct

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 142.85 / piece)

€ 142.85

plus VAT.

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Laser module cross

Red
Laser category: 2M
Emission characteristics: Cross

Technical specifications

Connection cable 100 mm

Product type: Laser module

Type: CB 635-5-5 (16x45) 15-F200

Emission characteristics: Cross

Focus properties: 200 mm fixed-focus

Factory colour: Red

Wavelength: 635 nm

: 5 mW

Laser category: 2M

Angular aperture: 15°

Beam divergence: 0.3 mrad

Clearance: 0.2 m

Operating voltage: 5 V DC

Operating current: 50 mA

Material: Aluminium

RoHS-compliant: Yes

Max. temperature: +50 °C

Min. temperature: -20 °C

Documents & Downloads

Datasheet

English

Datasheet 1695872 Picotronic Laser module Cross Red 5 mW CB 635-5-5 (16x45) 15-F200

User & Safety Instructions

European union

User & Safety Instructions 1695872 Picotronic Laser module Cross Red 5 mW CB 635-5-5 (16x45) 15-F200

Information

European union

Information 1695872 Picotronic Laser module Cross Red 5 mW CB 635-5-5 (16x45) 15-F200

Conformity certificate

Conformity certificate 1695872 Picotronic Laser module Cross Red 5 mW CB 635-5-5 (16x45) 15-F200

Description

Hints

Class 2M: laser radiation! Observe safety instructions! Never look into the beam (may damage your retina).
