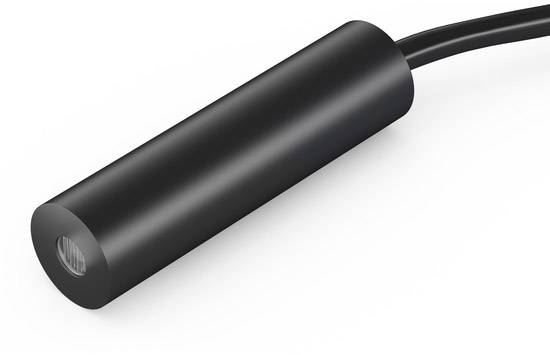

Picotronic Laser module Dot Red 0.4 mW DC 650-0 (12 x 45)-C5000.4-24
EAN:
Part number:
Item no:
Product type
Laser module
Emission characteristics
Dot
Wavelength
650 nm
Power
0.4 mW
Laser category
1
Datasheet (PDF)
Highlights & Details
Laser module point
- Red
- Laser category: 1
- Emission characteristics: Dot
Technical specifications
- Connection cable 5000 mm
- Product type
Laser module
- Type
DC 650-0 (12 x 45)-C5000.4-24
- Emission characteristics
Dot
- Focus properties
collimated
- Factory colour
Red
- Wavelength
650 nm
0.4 mW
- Laser category
1
- Beam divergence
0.4 mrad
- Clearance
10 m
- Operating voltage
24 V DC
- Operating current
5 mA
- Material
Aluminium
- RoHS-compliant
Yes
- Max. temperature
+50 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 1695861 Picotronic Laser module Dot Red 0.4 mW DC 650-0 (12 x 45)-C5000.4-24
User & Safety Instructions
User & Safety Instructions 1695861 Picotronic Laser module Dot Red 0.4 mW DC 650-0 (12 x 45)-C5000.4-24
Information
Information 1695861 Picotronic Laser module Dot Red 0.4 mW DC 650-0 (12 x 45)-C5000.4-24
Conformity certificate
Conformity certificate 1695861 Picotronic Laser module Dot Red 0.4 mW DC 650-0 (12 x 45)-C5000.4-24
Description
Hints
Class 1: laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
