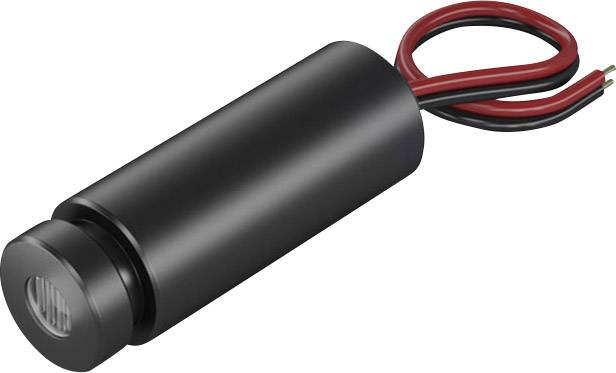

Black cylindrical LED light body with two protruding red and black wires, suitable for electrical connections.

Black cylindrical LED light body with two protruding red and black wires, suitable for electrical connections.

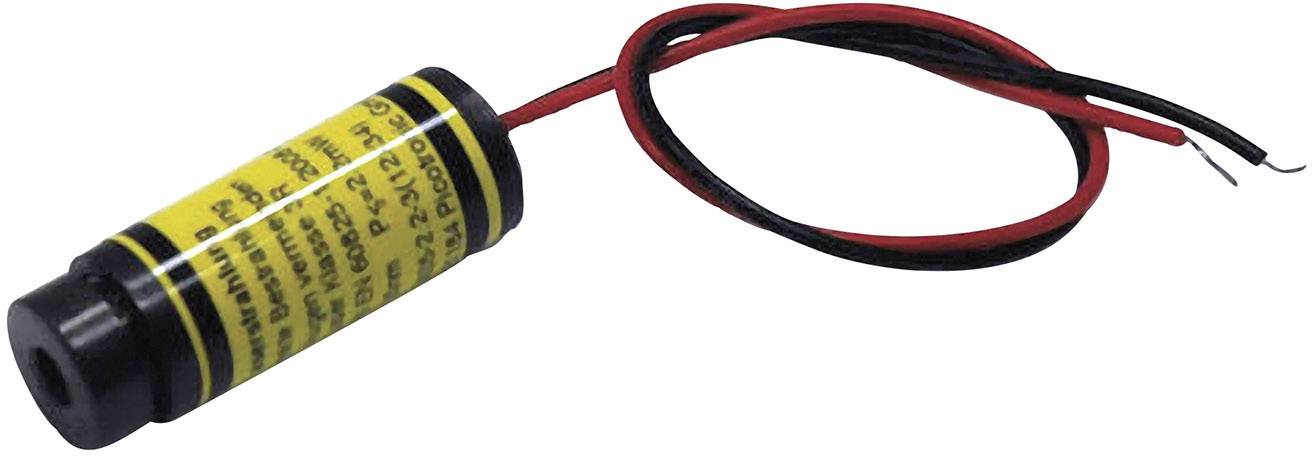

A cylindrical laser with a yellow label and red and black cables.

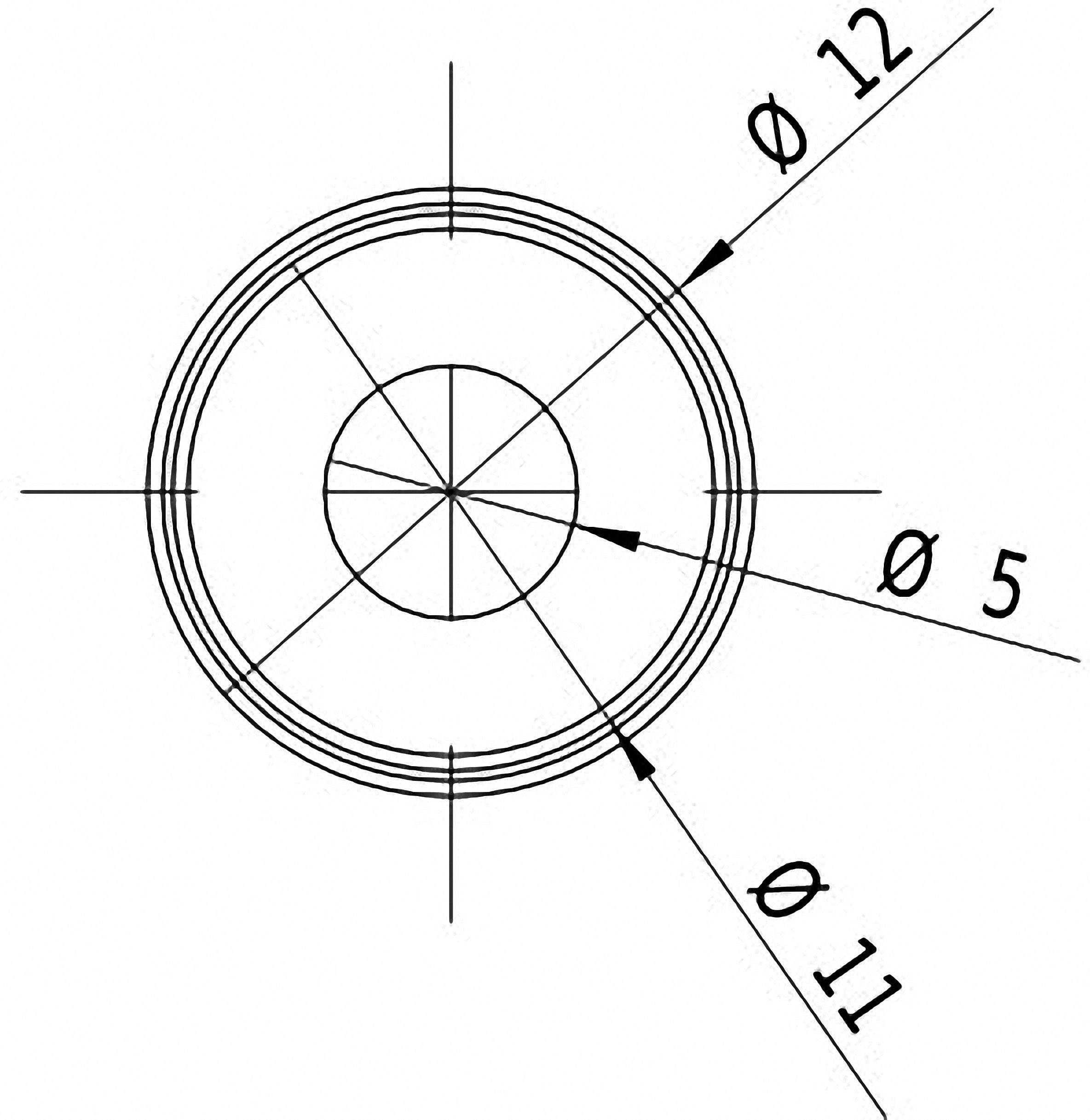

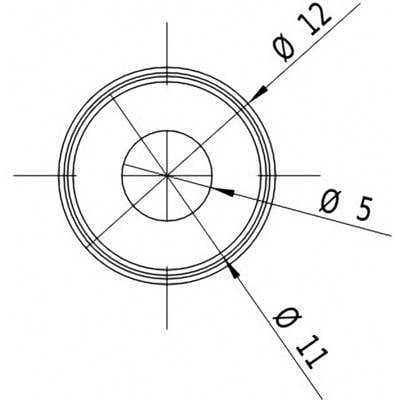

Technical drawing of a circle with three diameters: Ø5, Ø11 and Ø12. Shows details of a concentric component view.

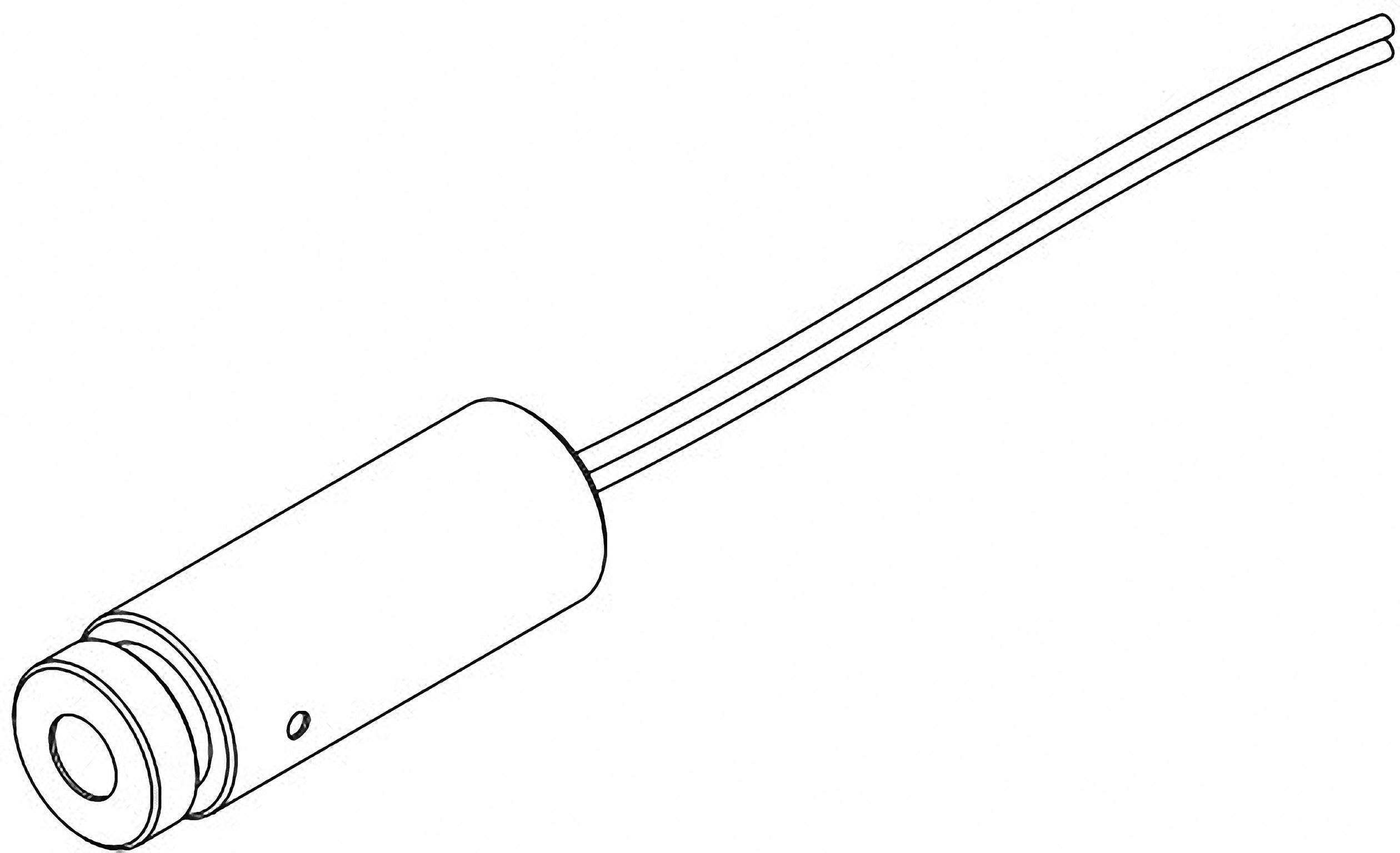

Drawing of a cylindrical electrical component with two protruding wires on the right-hand side.

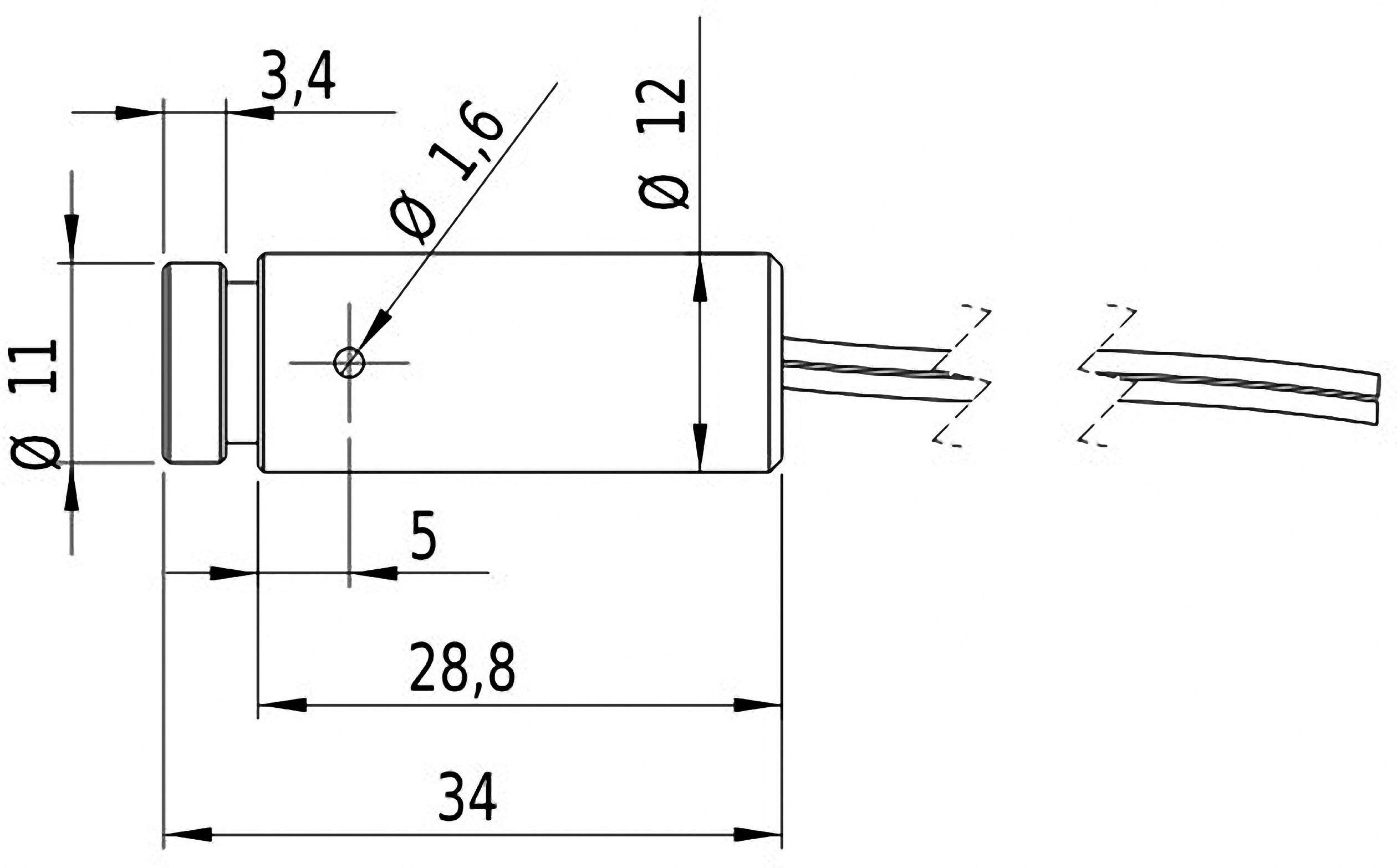

Technical Drawing of a Cylindrical Sensor with Dimensions: Diameter 11 mm, Length 34 mm, with Details of Cable Positioning.

1/5

Picotronic

Datasheet (PDF)

English

57 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 48.73 / piece)

€

Report legal concerns

Highlights & Details

Point laser, red

Red
Laser category: 1
Emission characteristics: Dot

Technical specifications

Type: DD650-0.4-3.12x34

Emission characteristics: Dot

Focus properties: Selectable focus

Factory colour: Red

Wavelength: 650 nm

: 0.4 mW

Laser category: 1

Beam divergence: 0.5 mrad

Clearance: 10 m

Operating voltage: 3 V DC

Operating current: 18 mA

Material: Brass

Dim: (Ø x L) 12 mm x 34 mm

Weight: 17 g

RoHS-compliant: Yes

(Ø): 12 mm

Length: 34 mm

Max. temperature: 50 °C

Min. temperature: -20 °C

Product type: Laser module

Documents & Downloads

Datasheet

English

Datasheet 1283404 Picotronic Laser module Dot Red 0.4 mW DD650-0.4-3.12x34

Information

European union

Information 1283404 Picotronic Laser module Dot Red 0.4 mW DD650-0.4-3.12x34

Conformity certificate

Conformity certificate 1283404 Picotronic Laser module Dot Red 0.4 mW DD650-0.4-3.12x34

Description

Hints

Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
