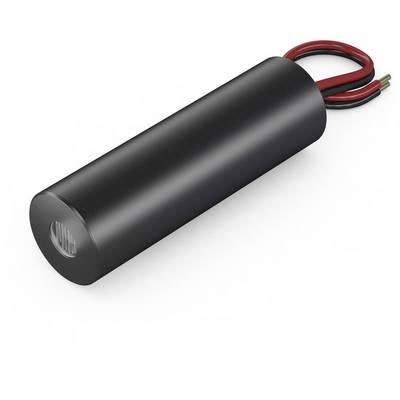

A black cylindrical electric motor with two protruding red and black wires at one end.

A black cylindrical electric motor with two protruding red and black wires at one end.

Construction drawing of a circular ring with an outer diameter of 14 mm and an inner diameter of 5.5 mm.

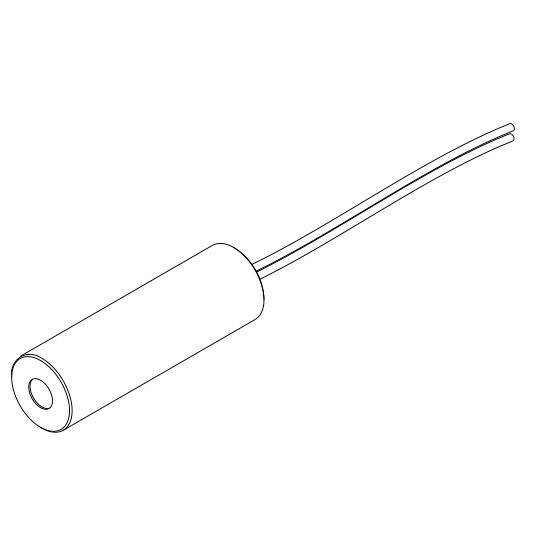

A simple diagram shows a cylindrical component with two protruding wires, which are presumably used for an electrical connection.

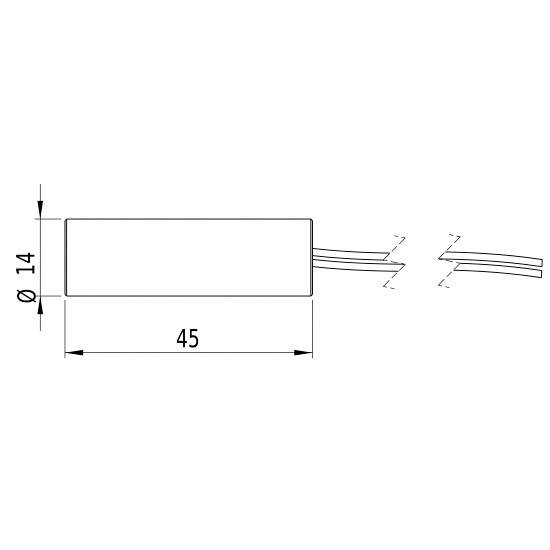

Schematic of a cylindrical component with a diameter of 14 mm and a length of 45 mm. Two wires protrude.

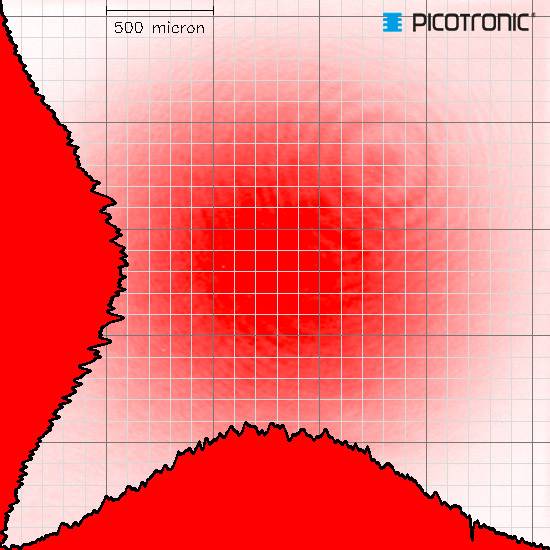

A microscopic image shows a red, granular pattern extending from left to right, with a scale of 500 microns in the top left corner.

Three-dimensional grid model of an irregular surface. It illustrates height differences through a network of triangles.

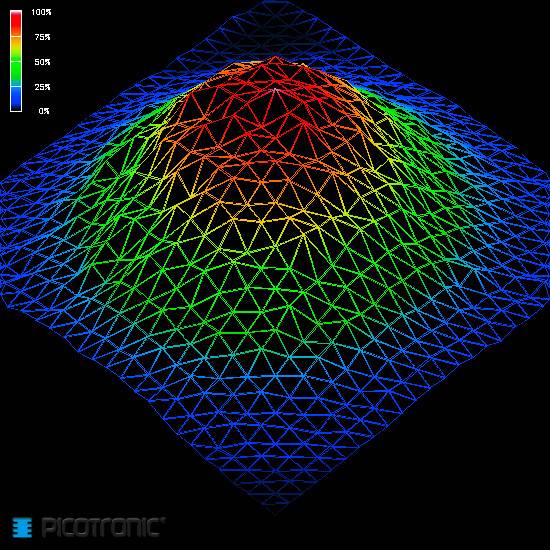

3D graphic with grid structure shows a colour representation of a mountain, colour gradient from blue (0%) to red (100%) indicates height variations.

1/9

Product type

Laser module

Emission characteristics

Dot

Wavelength

635 nm

Power

1 mW

Laser category

2

Datasheet (PDF)

English

Picotronic

Dispatches on Tue, 6 Oct

5 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 75.62 / piece)

€ 75.62

plus VAT.

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Laser module point

Red
Laser category: 2
Emission characteristics: Dot

Technical specifications

Connection cable 100 mm

Product type: Laser module

Type: DB 635-1-3-FA (14x45)-F 20000

Emission characteristics: Dot

Focus properties: 20 m fixed-focus

Factory colour: Red

Wavelength: 635 nm

: 1 mW

Laser category: 2

Beam divergence: 0.3 mrad

Clearance: 20 m

Operating voltage: 3 V DC

Operating current: 32 mA

Material: Aluminium

RoHS-compliant: Yes

Max. temperature: +50 °C

Min. temperature: -20 °C

Documents & Downloads

Datasheet

English

Datasheet 1695925 Picotronic Laser module Dot Red 1 mW DB 635-1-3-FA (14x45)-F 20000

User & Safety Instructions

European union

User & Safety Instructions 1695925 Picotronic Laser module Dot Red 1 mW DB 635-1-3-FA (14x45)-F 20000

Information

European union

Information 1695925 Picotronic Laser module Dot Red 1 mW DB 635-1-3-FA (14x45)-F 20000

Conformity certificate

Conformity certificate 1695925 Picotronic Laser module Dot Red 1 mW DB 635-1-3-FA (14x45)-F 20000

Description

Hints

Class 2 laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
