Name: Picotronic Laser module Dot Red 1 mW DC650-1-3 (8x25)
Brand: Picotronic
SKU: 1695929

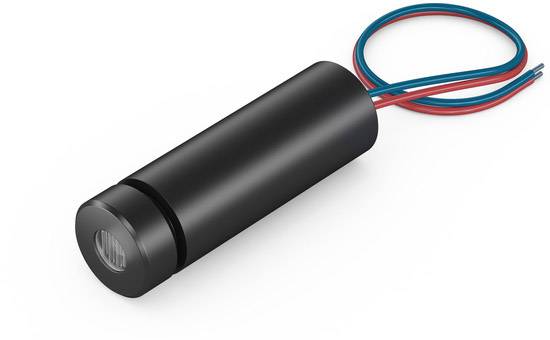

A cylindrical, black device with red and blue wires, possibly an electronic sensor or component.

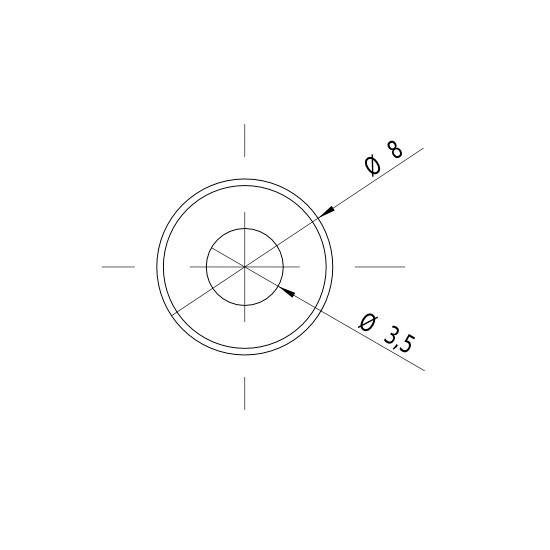

Technical Drawing: Circle with a diameter of 8 mm, inner circle 3.5 mm. Cross lines indicate centre.

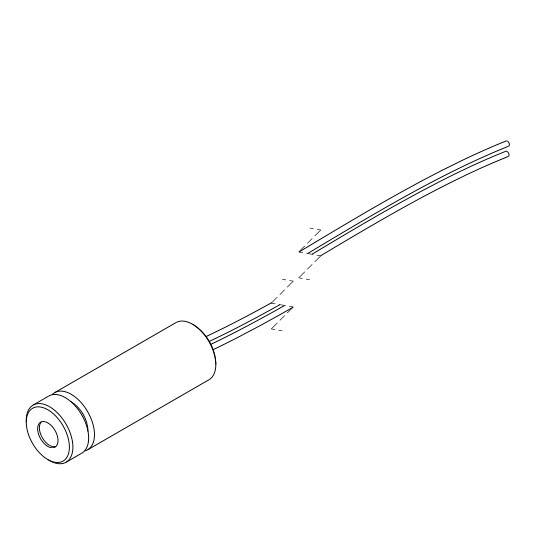

Technical drawing of a cylindrical sensor with two wires extending from the rear. Arrows indicate cable lengths.

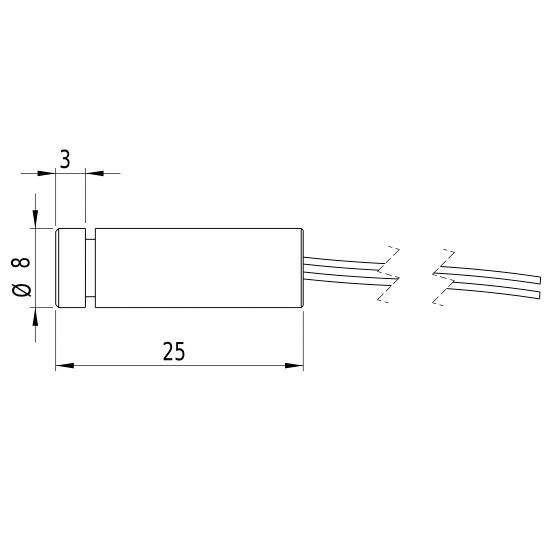

Technical drawing of a cylindrical sensor with dimensions: length 25 mm, diameter 8 mm. Two wires protrude.

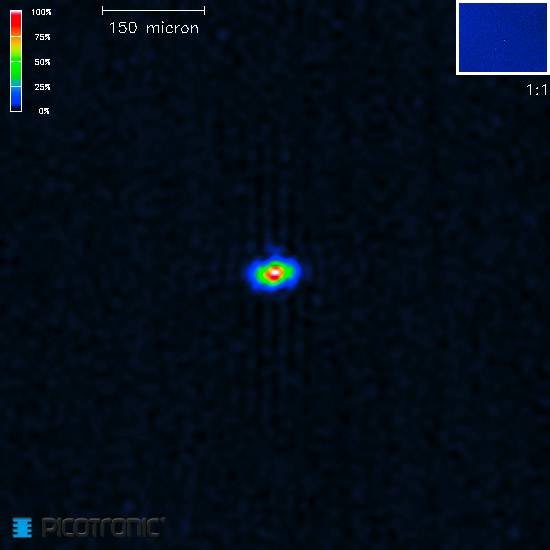

Single-colour thermal image of a bright point in the centre with a scale on the left. Shows temperature distribution on a blue background.

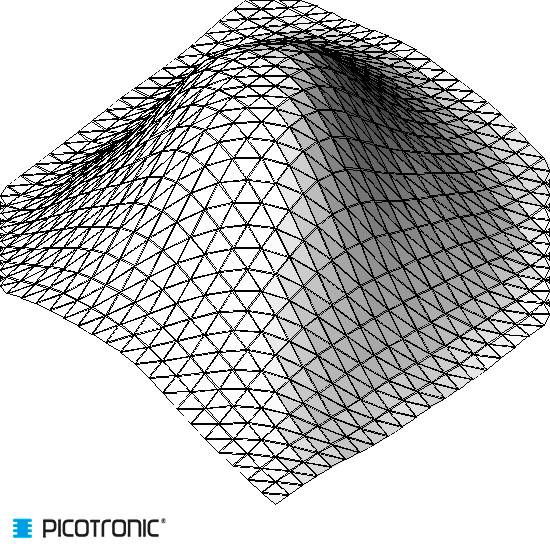

A 3D grid model shows a wave-like surface formed by a rectangular mesh of lines.

1/8

Product type

Laser module

Emission characteristics

Dot

Wavelength

650 nm

Power

1 mW

Laser category

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Laser module point

Red
Laser category: 2
Emission characteristics: Dot

Technical specifications

Connection cable 100 mm

Product type: Laser module

Type: DC650-1-3 (8x25)

Emission characteristics: Dot

Focus properties: Selectable focus

Factory colour: Red

Wavelength: 650 nm

: 1 mW

Laser category: 2

Beam divergence: 0.4 mrad

Clearance: 10 m

Operating voltage: 3 V DC

Operating current: 19 mA

Material: Aluminium

RoHS-compliant: Yes

Max. temperature: +50 °C

Min. temperature: -20 °C

Variants(All information is without VAT, plus shipping costs)

Clearance

Power

Factory colour

Laser category

Wavelength

Picotronic Laser module Dot Blue 1 mW DDI 405-1-24-F (12x60)-C500

Item no:1695998

Dispatches on Mon 19 Oct

4 Piece(s)Conrad Electronic

10 m

1 mW

Blue

405 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 319.00^*

Picotronic Laser module Dot Blue 1 mW MDD 405-1-5 (12.7 x 40)

Item no:1695899

Dispatches on Fri 27 Nov

Conrad Electronic

10 m

1 mW

Blue

405 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 265.00^*

Picotronic Laser module Dot Green 0.4 mW DD 532-0.4-24 (20 x 80)-F500

Item no:1695835

Dispatches on Mon 19 Oct

4 Piece(s)Conrad Electronic

0.5 m

0.4 mW

Green

532 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 409.00^*

Picotronic Laser module Dot Green 0.4 mW DD532-0.4-3.16x60

Item no:1695964

Dispatches on Mon 19 Oct

2 Piece(s)Conrad Electronic

50 m

0.4 mW

Green

532 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 224.99^*

Picotronic Laser module Dot Green 1 mW DB 520-1-3-FA (14x45) - AP QCW

Item no:1695837

Dispatches on Mon 19 Oct

6 Piece(s)Conrad Electronic

80 m

1 mW

Green

520 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 409.00^*

Picotronic Laser module Dot Green 1 mW DD 520-1-12 (12 x 40) - QCW

Item no:1696014

Dispatches on Mon 19 Oct

1 Piece(s)Conrad Electronic

35 m

1 mW

Green

520 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 399.00^*

Picotronic Laser module Dot Green 1 mW DD 520-1-24 (12 x 40) - QCW

Item no:1695866

Dispatches on Mon 19 Oct

6 Piece(s)Conrad Electronic

50 m

1 mW

Green

520 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 379.00^*

Picotronic Laser module Dot Green 1 mW DD 532-1-24 (20 x 80)

Item no:1696028

Dispatches on Mon 19 Oct

4 Piece(s)Conrad Electronic

50 m

1 mW

Green

532 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 465.00^*

Picotronic Laser module Dot Green 1 mW DD 532-1-3 (12x45)-PRO

Item no:1695931

Dispatches on Fri 27 Nov

Conrad Electronic

40 m

1 mW

Green

532 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 144.99^*

Picotronic Laser module Dot Green 1 mW DD 532-1-3 (20 x 80)-AP

Item no:1695996

Dispatches on Mon 19 Oct

7 Piece(s)Conrad Electronic

50 m

1 mW

Green

532 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 349.00^*

Documents & Downloads

Datasheet

Datasheet 1695929 Picotronic Laser module Dot Red 1 mW DC650-1-3 (8x25)

User & Safety Instructions

User & Safety Instructions 1695929 Picotronic Laser module Dot Red 1 mW DC650-1-3 (8x25)

Information

Information 1695929 Picotronic Laser module Dot Red 1 mW DC650-1-3 (8x25)

Conformity certificate

Conformity certificate 1695929 Picotronic Laser module Dot Red 1 mW DC650-1-3 (8x25)

Hints

Class 2 laser beam! Observe safety instructions! Never look into the beam (may damage your retina).

Description

Hints

Class 2 laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
