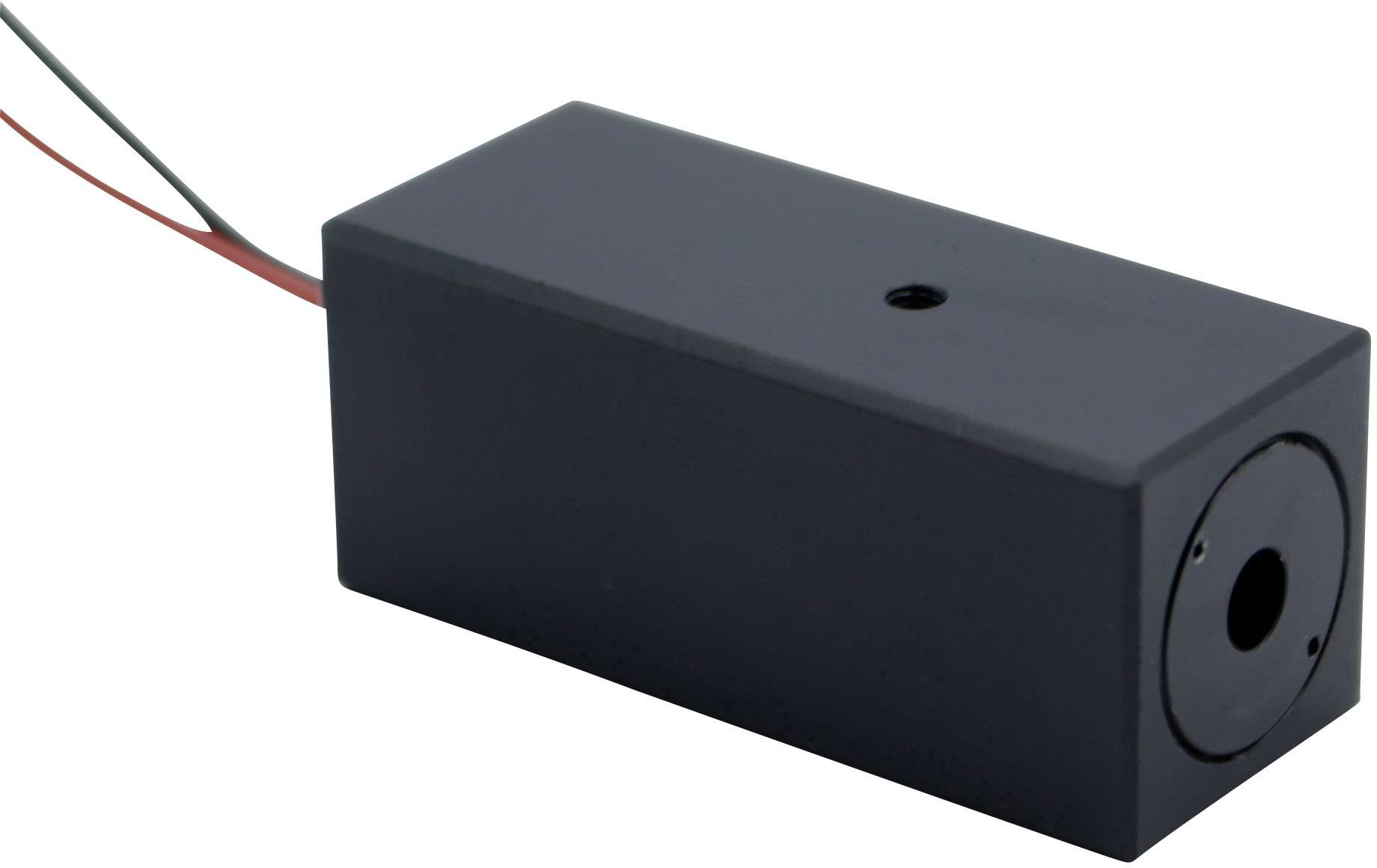

Picotronic Laser module Dot Red 1 mW DD 635-1-3 (21 x 21 x 50)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 100.83 / piece)
€ 100.83
plus VAT.
Only 6 Piece(s) available
Highlights & Details
Insulated point laser, red
- Red
- Laser category: 2
- Emission characteristics: Dot
Technical specifications
- Type
DD 635-1-3 (21 x 21 x 50)
- Emission characteristics
Dot
- Focus properties
5000 mm fixed-focus
- Factory colour
Red
- Wavelength
635 nm
1 mW
- Laser category
2
- Beam divergence
0.5 mrad
- Clearance
10 m
- Operating voltage
3 V DC
- Operating current
25 mA
- Material
Aluminium
- Dim
(L x W x H) 21 x 21 x 50 mm
- Weight
54 g
- RoHS-compliant
Yes
- Height
50 mm
- Length
21 mm
- Width
21 mm
- Max. temperature
50 °C
- Min. temperature
-20 °C
- Product type
Laser module
Documents & Downloads
Datasheet
Datasheet 1283347 Picotronic Laser module Dot Red 1 mW DD 635-1-3 (21 x 21 x 50)
Information
Information 1283347 Picotronic Laser module Dot Red 1 mW DD 635-1-3 (21 x 21 x 50)
Conformity certificate
Conformity certificate 1283347 Picotronic Laser module Dot Red 1 mW DD 635-1-3 (21 x 21 x 50)
Description
Hints
Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
