Black cylindrical sensor with two red and black wires for electrical connection. Suitable for electronic applications.

Black cylindrical sensor with two red and black wires for electrical connection. Suitable for electronic applications.

A cylindrical black sensor with red and black cables for power supply or signal transmission. Suitable for technical applications.

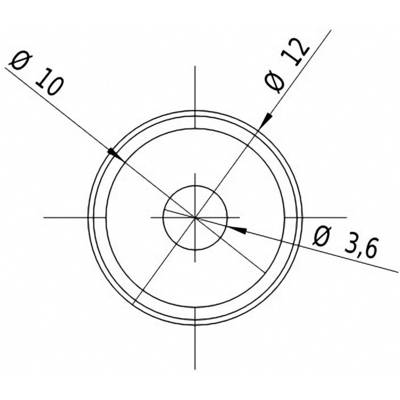

Technical drawing of a circle with three diameters: 10, 12 and 3.6 mm. Lines show the measurement points and provide details.

A linear drawing of a cylindrical sensor with cables protruding from one end.

Illustration of a cylindrical object with a diameter of 12 mm and a length of 25 mm, connected with cables on the right.

1/5

Product type

Laser module

Emission characteristics

Dot

Wavelength

635 nm

Power

1 mW

(Ø)

12 mm

Datasheet (PDF)

English

Picotronic

Dispatches on Mon, 28 Sep

45 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 63.86 / piece)

€ 63.86

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Insulated point laser, red

Red
Laser category: 2
Emission characteristics: Dot

Technical specifications

Product type: Laser module

Type: DD 635-1-5 (12x25)

Emission characteristics: Dot

Focus properties: 5000 mm fixed-focus

Factory colour: Red

Wavelength: 635 nm

: 1 mW

(Ø): 12 mm

Length: 25 mm

Laser category: 2

Beam divergence: 0.5 mrad

Clearance: 50 m

Operating voltage: 5 V DC

Operating current: 26 mA

Material: Aluminium

Dim: (Ø x L) 12 mm x 25 mm

Weight: 7 g

RoHS-compliant: Yes

Max. temperature: 50 °C

Min. temperature: -20 °C

Documents & Downloads

Datasheet

English

Datasheet 1283399 Picotronic Laser module Dot Red 1 mW DD 635-1-5 (12x25)

User & Safety Instructions

User & Safety Instructions 1283399 Picotronic Laser module Dot Red 1 mW DD 635-1-5 (12x25)

Information

European union

Information 1283399 Picotronic Laser module Dot Red 1 mW DD 635-1-5 (12x25)

Conformity certificate

Conformity certificate 1283399 Picotronic Laser module Dot Red 1 mW DD 635-1-5 (12x25)

Description

Hints

Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
