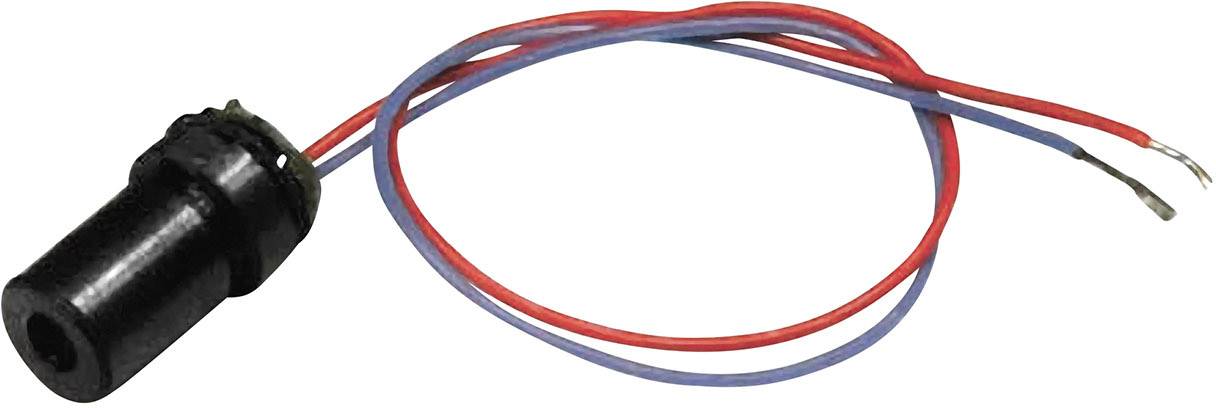

Black cylindrical sensor with red and blue wires.

Black cylindrical sensor with red and blue wires.

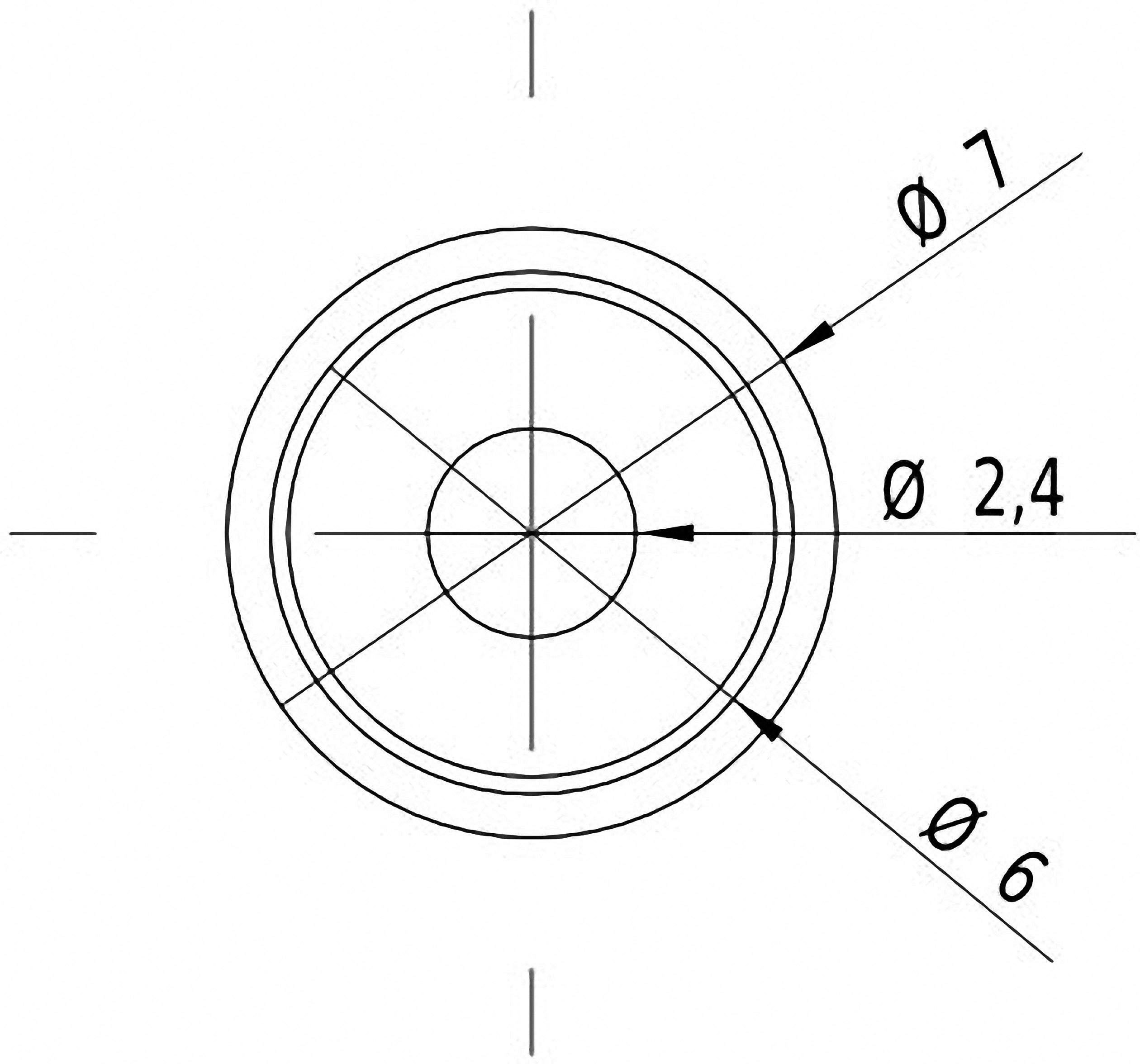

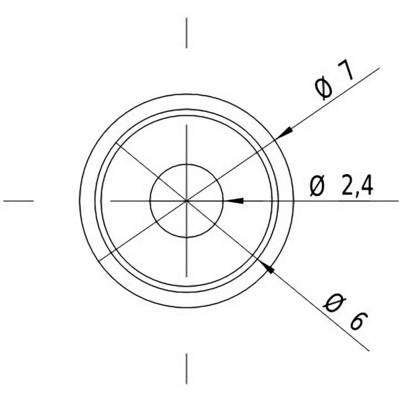

Technical drawing of a circle with three marked diameters: 7, 6 and 2.4. Lines indicate the diameters in a radial direction.

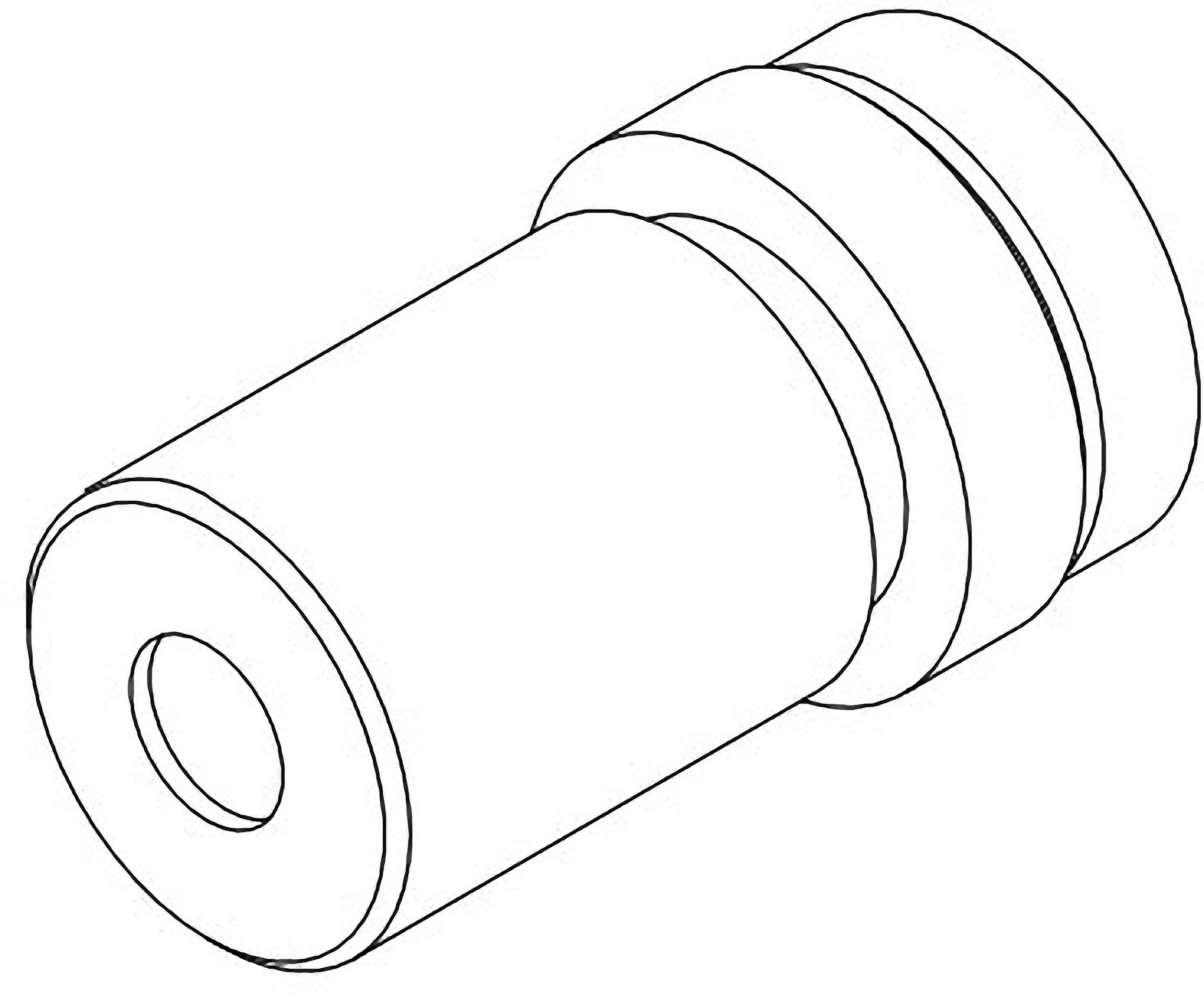

Technical drawing of a cylindrical, hollow metal component with two stepped rings at the rear end.<br><br>Note: This translation maintains the precise technical language while using British English terminology and phrasing.

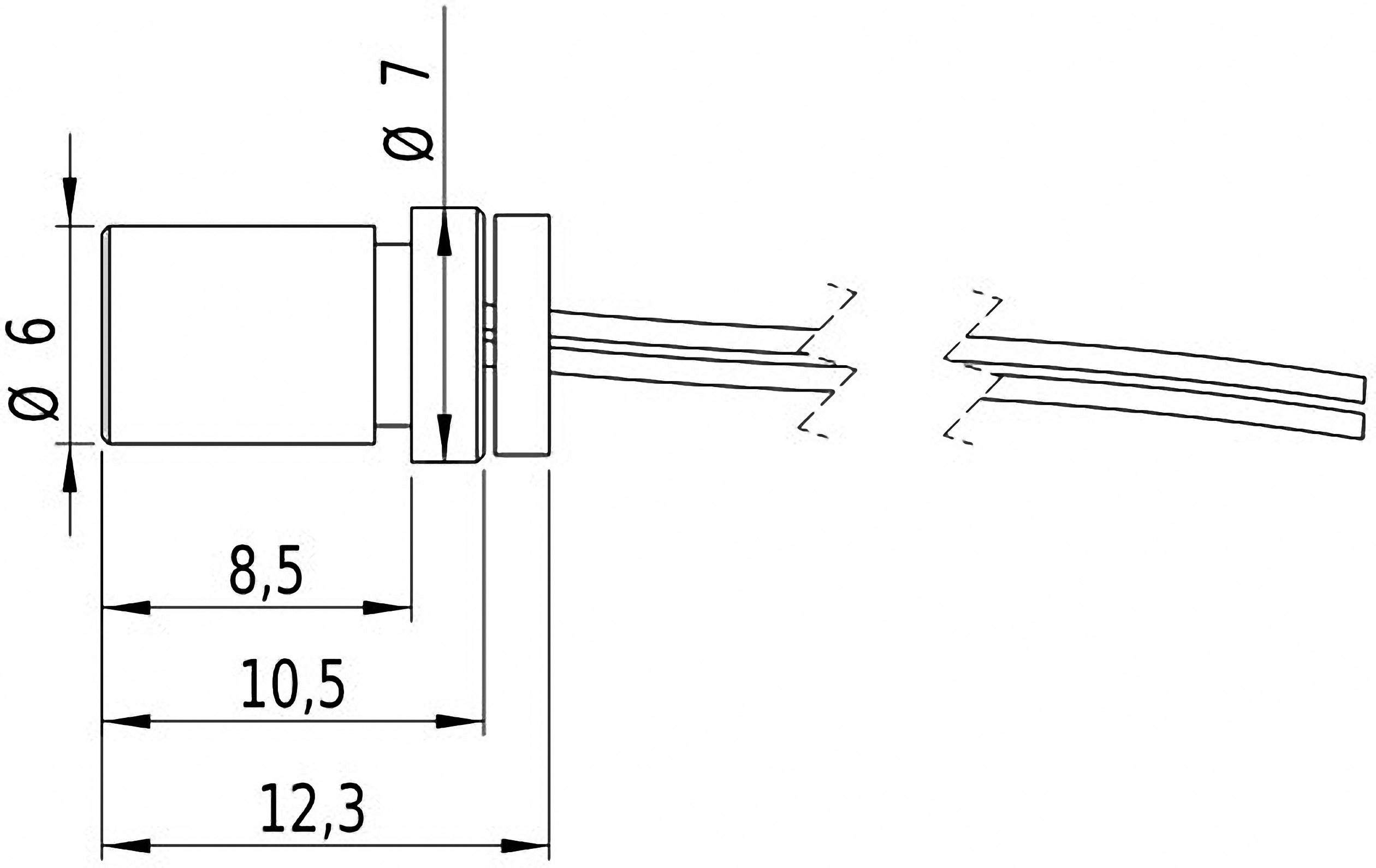

Technical drawing of a cylindrical component with dimensions: length 12.3 mm, diameter 6 mm. Two wires protrude.

1/4

Picotronic

Datasheet (PDF)

English

Dispatches on Tue, 15 Sep

232 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 26.04 / piece)

€ 26.04

plus VAT.

Report legal concerns

Highlights & Details

Insulated point laser, red

Red
Laser category: 2
Emission characteristics: Dot

Technical specifications

Type: DGI650-1-5 (7 x 14) - F35-C125

Emission characteristics: Dot

Focus properties: 35 mm fixed-focus

Factory colour: Red

Wavelength: 650 nm

: 1 mW

Laser category: 2

Beam divergence: 0.8 mrad

Clearance: 0.035 m

Operating voltage: 5 V DC

Operating current: 20 mA

Material: Aluminium

Dim: (Ø x L) 7 mm x 14 mm

Weight: 1.5 g

RoHS-compliant: Yes

(Ø): 7 mm

Length: 14 mm

Max. temperature: 50 °C

Min. temperature: -20 °C

Product type: Laser module

Documents & Downloads

Datasheet

English

Datasheet 1283426 Picotronic Laser module Dot Red 1 mW DGI650-1-5 (7 x 14) - F35-C125

User & Safety Instructions

User & Safety Instructions 1283426 Picotronic Laser module Dot Red 1 mW DGI650-1-5 (7 x 14) - F35-C125

Information

European union

Information 1283426 Picotronic Laser module Dot Red 1 mW DGI650-1-5 (7 x 14) - F35-C125

Conformity certificate

Conformity certificate 1283426 Picotronic Laser module Dot Red 1 mW DGI650-1-5 (7 x 14) - F35-C125

Description

Hints

Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
