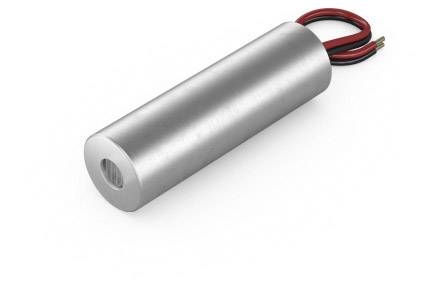

A cylindrical metal object with red and black cables that could be used as a technical component.

A cylindrical metal object with red and black cables that could be used as a technical component.

Technical drawing of a circle with two marked diameters: 12 mm and 4.6 mm. Shows a central drill hole.

A simple sketch of a cylindrical object that looks like a sensor or microphone with a cable.

A rectangular object with a diameter of 12 mm and a length of 45 mm; a cable protrudes.

'Laser beam emission image with colour scale: Central area shows highest intensity in red, surrounded by decreasing intensity in green and blue.'

Red laser projection on a white background with colour intensities in the centre. Scale at the top shows '500 Micron'. Small view in top right.

'Round, red luminous field in the centre of a grid network diagram, marked with 500 microns. Surrounded by irregular red borders.'

1/8

Picotronic

Datasheet (PDF)

English

Fast track dispatch on Wed, 16 Sep

3 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 142.85 / piece)

€ 142.85

plus VAT.

Only 3 Piece(s) available

Report legal concerns

Highlights & Details

Laser module point

Red
Laser category: 2
Emission characteristics: Dot

Technical specifications

Connection cable 140 mm

Type: DI 635-1-12 (12x45)-AP-F100

Emission characteristics: Dot

Focus properties: collimated

Factory colour: Red

Wavelength: 635 nm

: 1 mW

Laser category: 2

Beam divergence: 1.5 mrad

Clearance: 0.1 m

Operating voltage: 12 V DC

Operating current: 20 mA

Material: Aluminium

RoHS-compliant: Yes

Max. temperature: +50 °C

Min. temperature: -20 °C

Product type: Laser module

Documents & Downloads

Datasheet

English

Datasheet 1695886 Picotronic Laser module Dot Red 1 mW DI 635-1-12 (12x45)-AP-F100

User & Safety Instructions

European union

User & Safety Instructions 1695886 Picotronic Laser module Dot Red 1 mW DI 635-1-12 (12x45)-AP-F100

Information

European union

Information 1695886 Picotronic Laser module Dot Red 1 mW DI 635-1-12 (12x45)-AP-F100

Conformity certificate

Conformity certificate 1695886 Picotronic Laser module Dot Red 1 mW DI 635-1-12 (12x45)-AP-F100

Description

Hints

Class 2 laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
