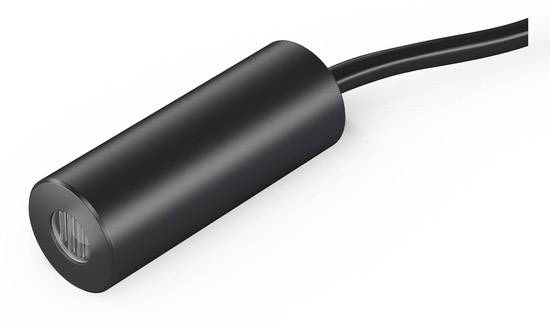

Picotronic Laser module Dot Red 1 mW DI650-1-5 (10x50)
EAN:
Part number:
Item no:
Product type
Laser module
Emission characteristics
Dot
Wavelength
650 nm
Power
1 mW
Laser category
2
Datasheet (PDF)
Number
Total (€ 48.73 / piece)
€ 48.73
plus VAT.
Only 1 Piece(s) available
Highlights & Details
Laser module point
- Red
- Laser category: 2
- Emission characteristics: Dot
Technical specifications
- Connection cable 1700 mm
- Product type
Laser module
- Type
DI650-1-5 (10x50)
- Emission characteristics
Dot
- Focus properties
collimated
- Factory colour
Red
- Wavelength
650 nm
1 mW
- Laser category
2
- Beam divergence
1.5 mrad
- Clearance
10 m
- Operating voltage
5 V DC
- Operating current
22 mA
- Material
Aluminium
- RoHS-compliant
Yes
- Max. temperature
+50 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 1695984 Picotronic Laser module Dot Red 1 mW DI650-1-5 (10x50)
User & Safety Instructions
User & Safety Instructions 1695984 Picotronic Laser module Dot Red 1 mW DI650-1-5 (10x50)
Information
Information 1695984 Picotronic Laser module Dot Red 1 mW DI650-1-5 (10x50)
Conformity certificate
Conformity certificate 1695984 Picotronic Laser module Dot Red 1 mW DI650-1-5 (10x50)
Description
Hints
Class 2 laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
