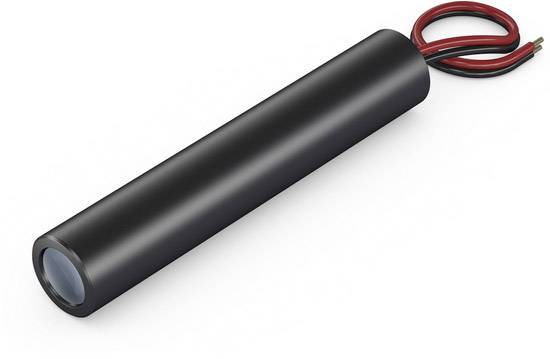

A cylindrical, black electronic component with two protruding cables, one red and one black.

A cylindrical, black electronic component with two protruding cables, one red and one black.

Technical drawing shows a circle with diameter specifications: outer diameter 11, inner diameter 8.

A technical drawing of a cylindrical plug with two outgoing cables to be connected to each other.

Schematic of a cylindrical component with a diameter of 11 mm and a length of 60 mm, with cables at one end.

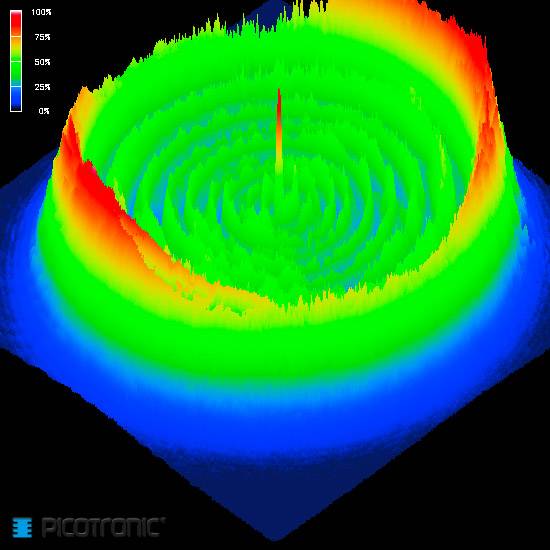

'3D diagram shows a circular pattern with a central peak. Colour coding: Red (100%) to Blue (0%).'

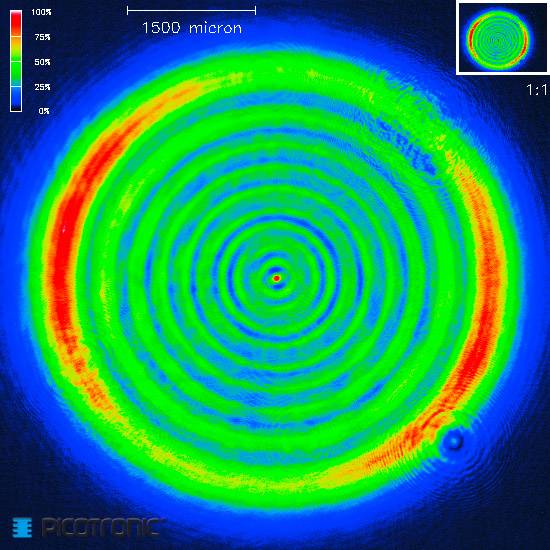

Thermal representation of a rainbow pattern with concentric circles. Colour scale on the left shows temperature from 25% to 100%.

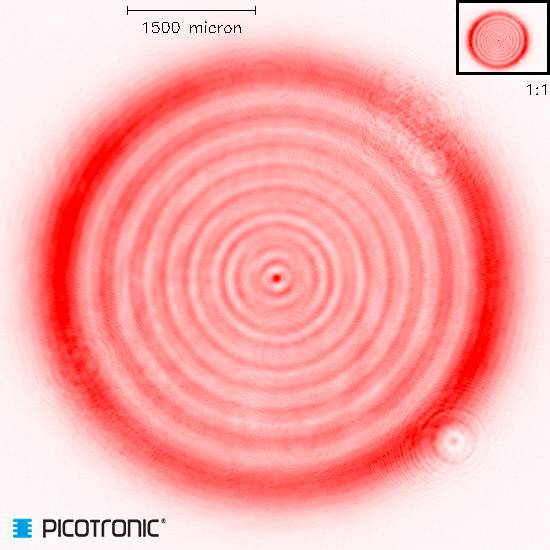

Red, concentric circles on a white background show an interference pattern. Top left scale: '1500 microns'.

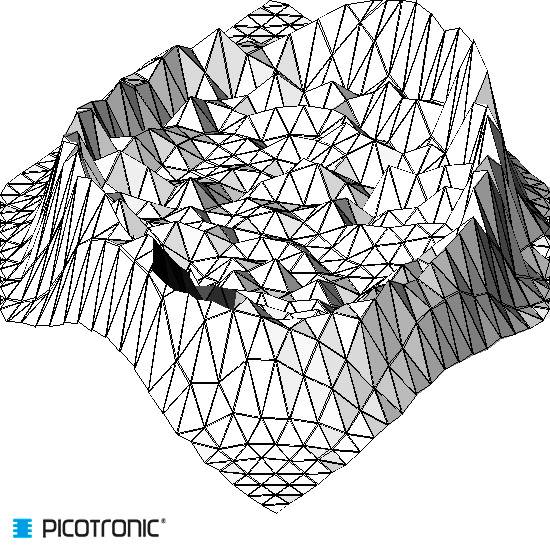

3D wire-frame model of a complex, mountainous landscape, consisting of irregular triangular polygons.

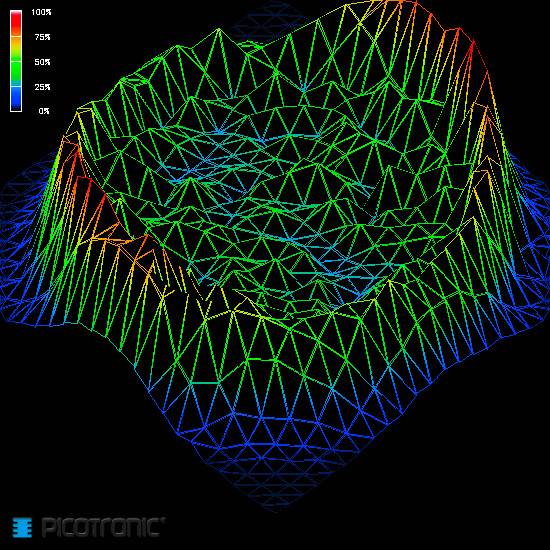

3D wire-frame diagram showing rising and falling terrain, colour-coded from Blue (low) to Red (high), scale on left.

1/9

Product type

Laser module

Emission characteristics

Dot

Wavelength

670 nm

Power

1 mW

Laser category

2

Datasheet (PDF)

English

Picotronic

Dispatches on Wed, 4 Nov

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 77.30 / piece)

€ 77.30

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Laser module point

Red
Laser category: 2
Emission characteristics: Dot

Technical specifications

Connection cable 100 mm

Product type: Laser module

Type: Since670-1-3 (11x60)

Emission characteristics: Dot

Focus properties: collimated

Factory colour: Red

Wavelength: 670 nm

: 1 mW

Laser category: 2

Beam divergence: 0.2 mrad

Clearance: 50 m

Operating voltage: 3 V DC

Operating current: 30 mA

Material: Brass

RoHS-compliant: Yes

Max. temperature: +50 °C

Min. temperature: -20 °C

Documents & Downloads

Datasheet

English

Datasheet 1695948 Picotronic Laser module Dot Red 1 mW Since670-1-3 (11x60)

User & Safety Instructions

European union

User & Safety Instructions 1695948 Picotronic Laser module Dot Red 1 mW Since670-1-3 (11x60)

Information

European union

Information 1695948 Picotronic Laser module Dot Red 1 mW Since670-1-3 (11x60)

Conformity certificate

Conformity certificate 1695948 Picotronic Laser module Dot Red 1 mW Since670-1-3 (11x60)

Description

Hints

Class 2 laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
