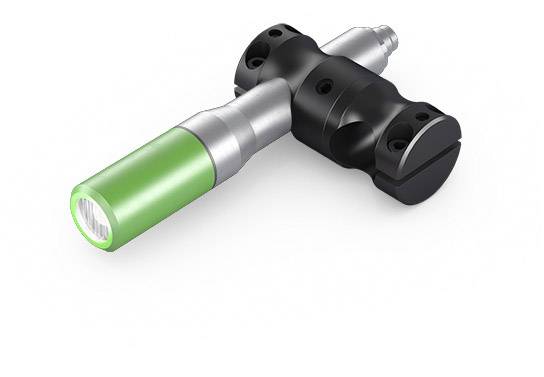

Industrial torque wrench with a green handle and black components, used for precise tightening control of screw connections.

Industrial torque wrench with a green handle and black components, used for precise tightening control of screw connections.

$Technical drawing of a circle with three concentric circles. Diameters are specified as \(\varnothing 25\), \(\varnothing 21\), and \(\varnothing 17\).$

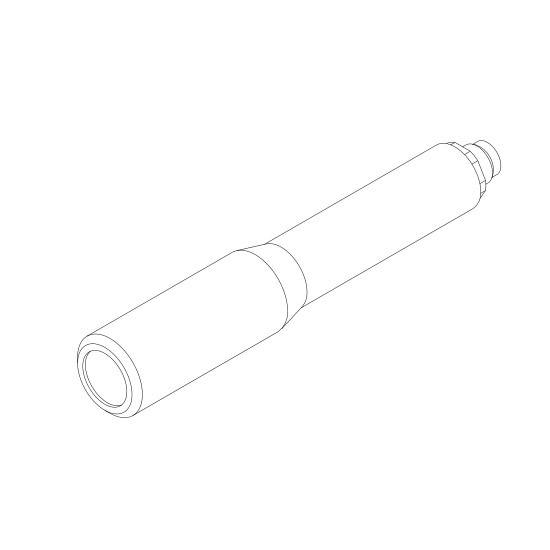

A simple line diagram of a gun barrel aligned horizontally shows the barrel length and detailed contours.

Technical drawing of a cylindrical object with dimensions: Length 202 mm, diameter 25 mm and 20 mm with marked sections.

1/4

Picotronic

Datasheet (PDF)

English

Dispatches on Wed, 16 Sep

6 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 777.31 / piece)

€ 777.31

plus VAT.

Only 6 Piece(s) available

Report legal concerns

Highlights & Details

Laser module line

Green
Laser category: 2M
Emission characteristics: Line

Technical specifications

Connection cable

Type: LD 532-15-24 (20 x 135) - M12

Emission characteristics: Line

Focus properties: Selectable focus

Factory colour: Green

Wavelength: 532 nm

: 15 mW

Laser category: 2M

Angular aperture: 90°

Beam divergence: 0.5 mrad

Clearance: 20 m

Operating voltage: 24 V DC

Operating current: 75 mA

Material: Stainless steel

RoHS-compliant: Yes

Max. temperature: +30 °C

Min. temperature: -15 °C

Product type: Laser module

Documents & Downloads

Datasheet

English

Datasheet 1695882 Picotronic Laser module Line Green 15 mW LD 532-15-24 (20 x 135) - M12

User & Safety Instructions

European union

User & Safety Instructions 1695882 Picotronic Laser module Line Green 15 mW LD 532-15-24 (20 x 135) - M12

Information

European union

Information 1695882 Picotronic Laser module Line Green 15 mW LD 532-15-24 (20 x 135) - M12

Conformity certificate

Conformity certificate 1695882 Picotronic Laser module Line Green 15 mW LD 532-15-24 (20 x 135) - M12

Description

Hints

Class 2M: laser radiation! Observe safety instructions! Never look into the beam (may damage your retina).
