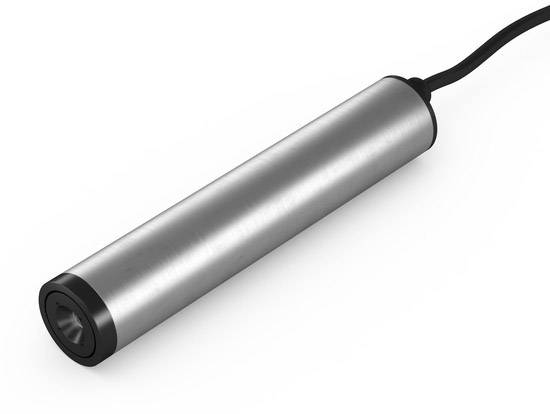

Cylindrical, silver metallic sensor with cable connection, lying horizontally; industrial device for precision measurement.

Cylindrical, silver metallic sensor with cable connection, lying horizontally; industrial device for precision measurement.

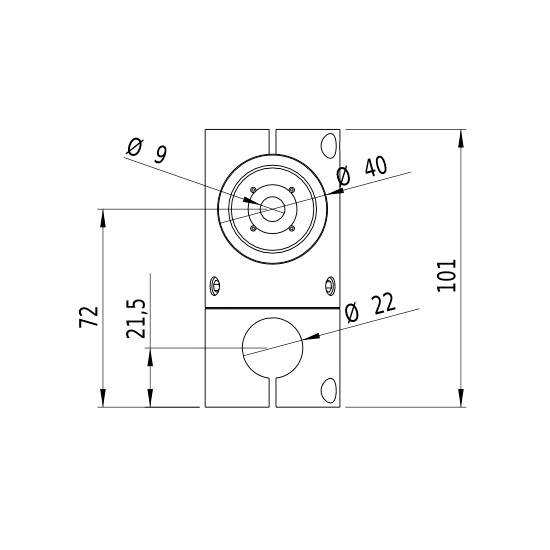

Technical drawing of a rectangular metal part with holes, dimensions, and diameter. Dimensions: 101 mm height, 72 mm width.

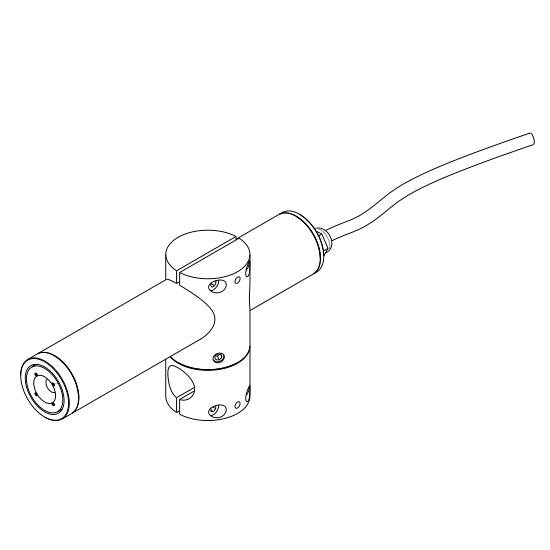

Drawing of a cylindrical camera with cable, mounting mechanism at the base, suitable for surveillance or security purposes.

Technical drawing of a cylindrical sensor with dimensions: length 210 mm, diameter 40 mm, height 101 mm. Cable exit on the right.

1/4

Picotronic

Datasheet (PDF)

English

9 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 654.62 / piece)

€

Only 9 Piece(s) available

Report legal concerns

Highlights & Details

Laser module line

Green
Laser category: 2M
Emission characteristics: Line

Technical specifications

Connection cable 3000 mm

Type: LD 532-50-24 (40 x 210)

Emission characteristics: Line

Focus properties: 7 m fixed-focus

Factory colour: Green

Wavelength: 532 nm

: 50 mW

Laser category: 2M

Angular aperture: 90°

Beam divergence: 0.5 mrad

Clearance: 30 m

Operating voltage: 24 V DC

Operating current: 100 mA

Material: Aluminium

RoHS-compliant: Yes

Max. temperature: +30 °C

Min. temperature: -15 °C

Product type: Laser module

Documents & Downloads

Datasheet

English

Datasheet 1695908 Picotronic Laser module Line Green 50 mW LD 532-50-24 (40 x 210)

User & Safety Instructions

European union

User & Safety Instructions 1695908 Picotronic Laser module Line Green 50 mW LD 532-50-24 (40 x 210)

Information

European union

Information 1695908 Picotronic Laser module Line Green 50 mW LD 532-50-24 (40 x 210)

Conformity certificate

Conformity certificate 1695908 Picotronic Laser module Line Green 50 mW LD 532-50-24 (40 x 210)

Description

Hints

Class 2M: laser radiation! Observe safety instructions! Never look into the beam (may damage your retina).
