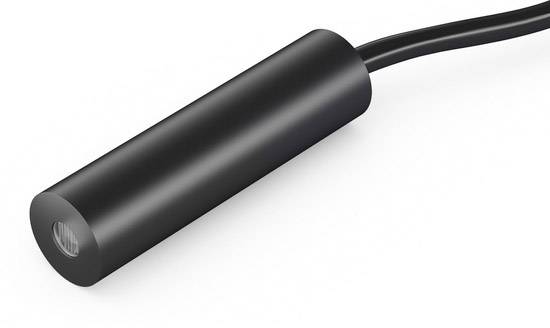

Picotronic Laser module Line Red 16 mW LH 650-16-3 (14x45)-C 2500
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 142.85 / piece)
€ 142.85
plus VAT.
Only 1 Piece(s) available
Highlights & Details
Laser module line
- Red
- Laser category: 2
- Emission characteristics: Line
Technical specifications
- Connection cable 2500 mm
- Type
LH 650-16-3 (14x45)-C 2500
- Emission characteristics
Line
- Focus properties
3000 mm fixed-focus
- Factory colour
Red
- Wavelength
650 nm
16 mW
- Laser category
2
- Angular aperture
90°
- Beam divergence
1.0 mrad
- Clearance
5 m
- Operating voltage
3 V DC
- Operating current
65 mA
- Material
Aluminium
- RoHS-compliant
Yes
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- Product type
Laser module
Documents & Downloads
Datasheet
Datasheet 1695928 Picotronic Laser module Line Red 16 mW LH 650-16-3 (14x45)-C 2500
User & Safety Instructions
User & Safety Instructions 1695928 Picotronic Laser module Line Red 16 mW LH 650-16-3 (14x45)-C 2500
Information
Information 1695928 Picotronic Laser module Line Red 16 mW LH 650-16-3 (14x45)-C 2500
Conformity certificate
Conformity certificate 1695928 Picotronic Laser module Line Red 16 mW LH 650-16-3 (14x45)-C 2500
Description
Hints
Class 2 laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
