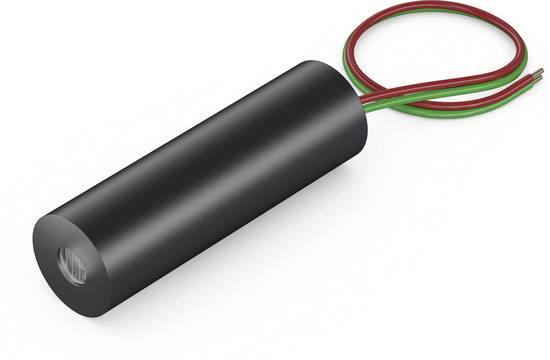

Picotronic Laser module Line Red 2.5 mW LI 635-2. 5-3 (8 x 26) 45-F100
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 57.13 / piece)
€ 57.13
plus VAT.
Highlights & Details
Laser module line
- Red
- Laser category: 1
- Emission characteristics: Line
Technical specifications
- Connection cable 100 mm
- Type
LI 635-2. 5-3 (8 x 26) 45-F100
- Emission characteristics
Line
- Focus properties
100 mm fixed-focus
- Factory colour
Red
- Wavelength
635 nm
2.5 mW
- Laser category
1
- Angular aperture
45°
- Beam divergence
1.5 mrad
- Clearance
0.1 m
- Operating voltage
3 V DC
- Operating current
40 mA
- Material
Aluminium
- RoHS-compliant
Yes
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- Product type
Laser module
Documents & Downloads
Datasheet
Datasheet 1695876 Picotronic Laser module Line Red 2.5 mW LI 635-2. 5-3 (8 x 26) 45-F100
User & Safety Instructions
User & Safety Instructions 1695876 Picotronic Laser module Line Red 2.5 mW LI 635-2. 5-3 (8 x 26) 45-F100
Information
Information 1695876 Picotronic Laser module Line Red 2.5 mW LI 635-2. 5-3 (8 x 26) 45-F100
Conformity certificate
Conformity certificate 1695876 Picotronic Laser module Line Red 2.5 mW LI 635-2. 5-3 (8 x 26) 45-F100
Description
Hints
Class 1: laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
