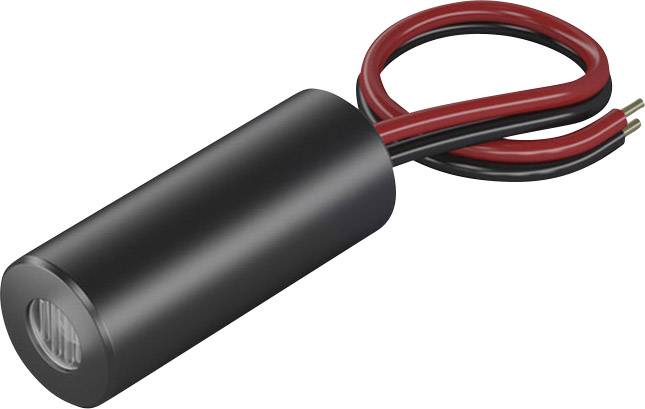

A cylindrical, black detonator with red and black wires, suitable for electrical connections or electronic devices.

A cylindrical, black detonator with red and black wires, suitable for electrical connections or electronic devices.

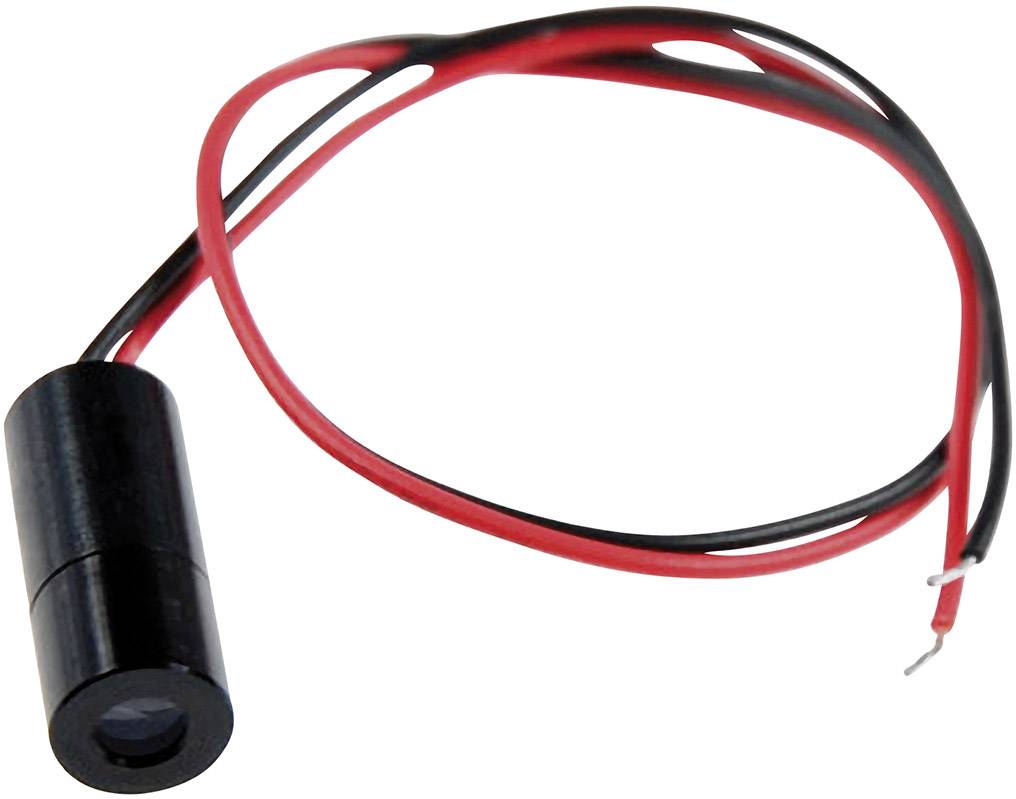

Cable with a black cylinder and red and black wires, likely an electrical or electronic component.

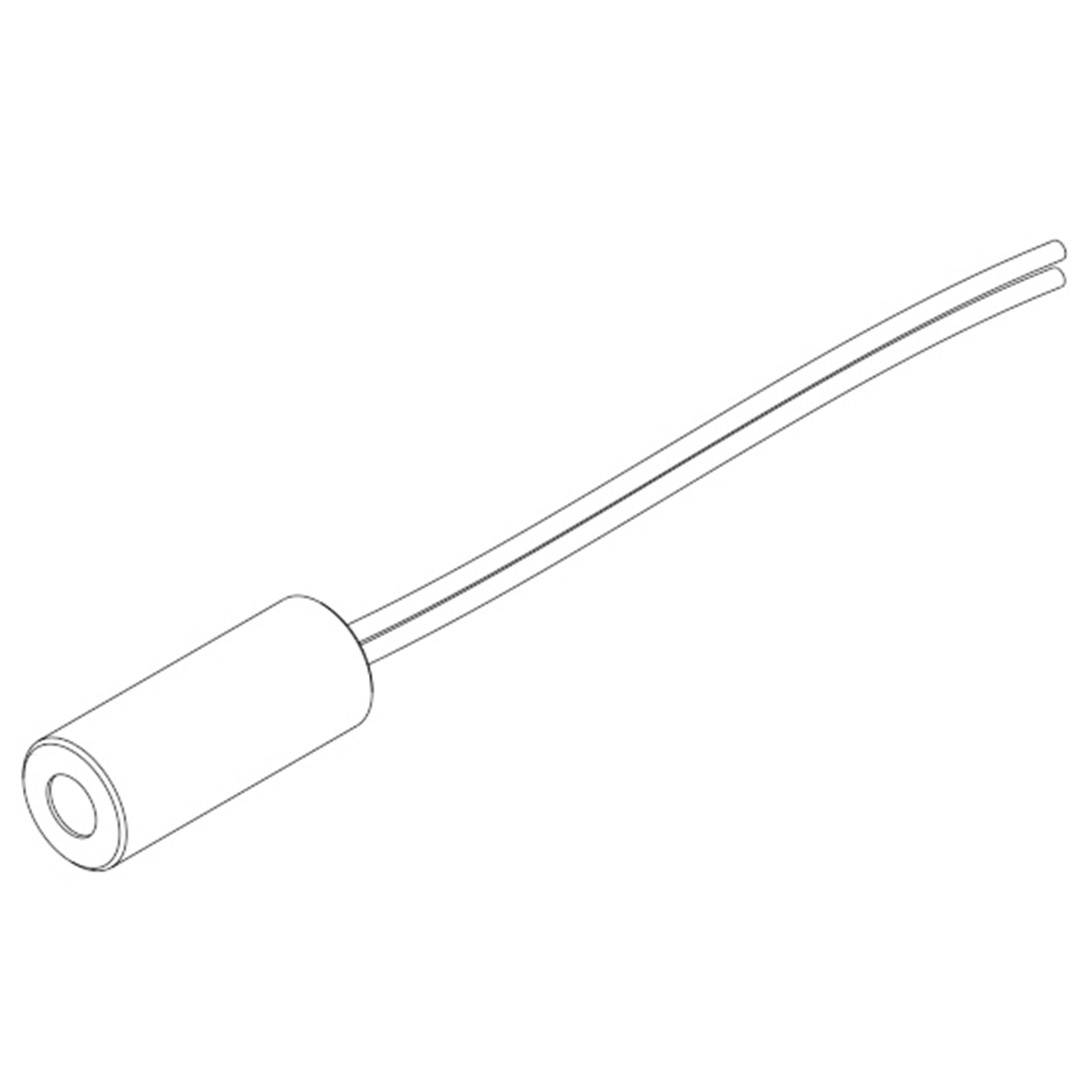

Line drawing of a cylindrical object with two extending wires, potentially an electronic component or sensor.

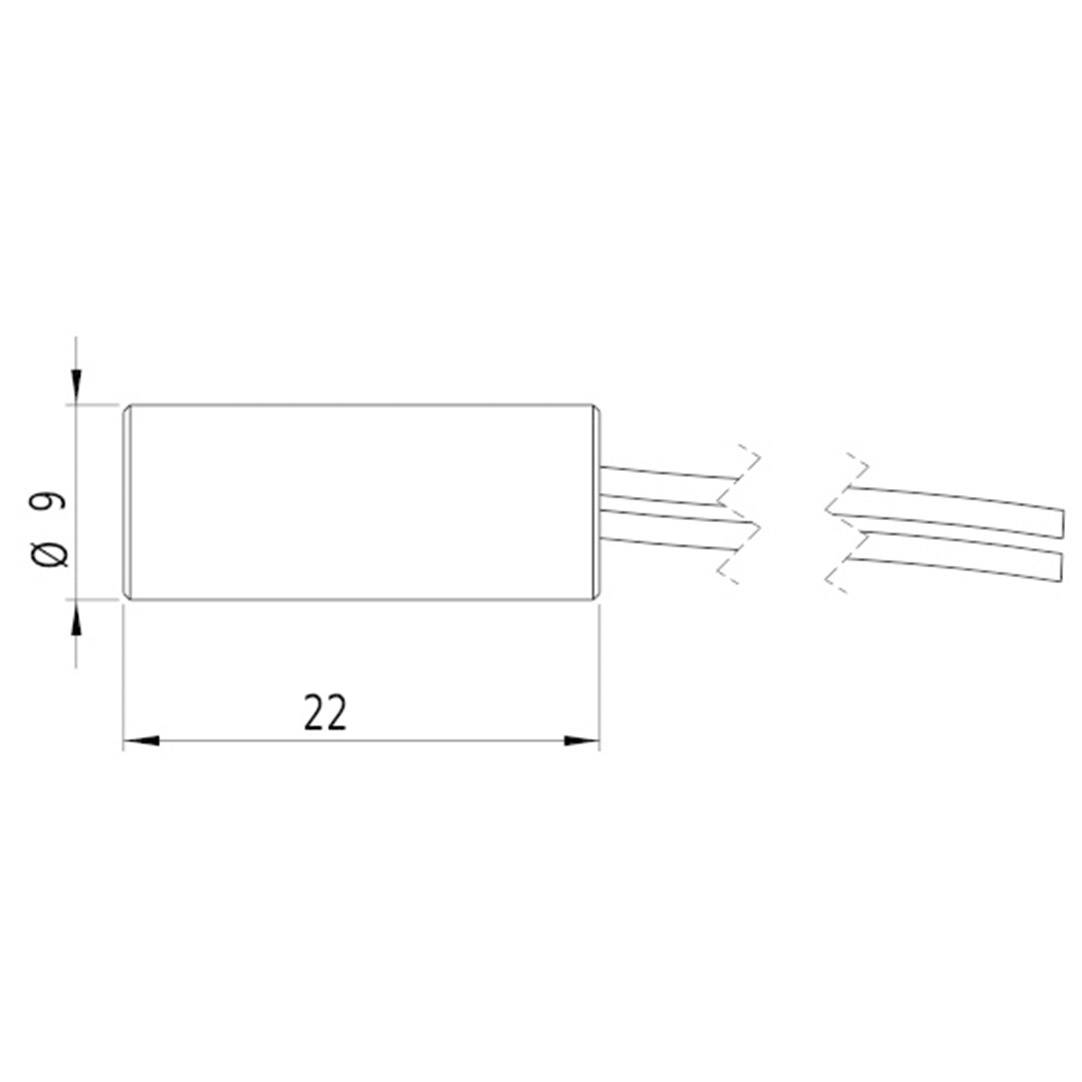

A technical diagram shows a rectangular cylinder with a diameter of 9 mm and a length of 22 mm. Two cables protrude from it.

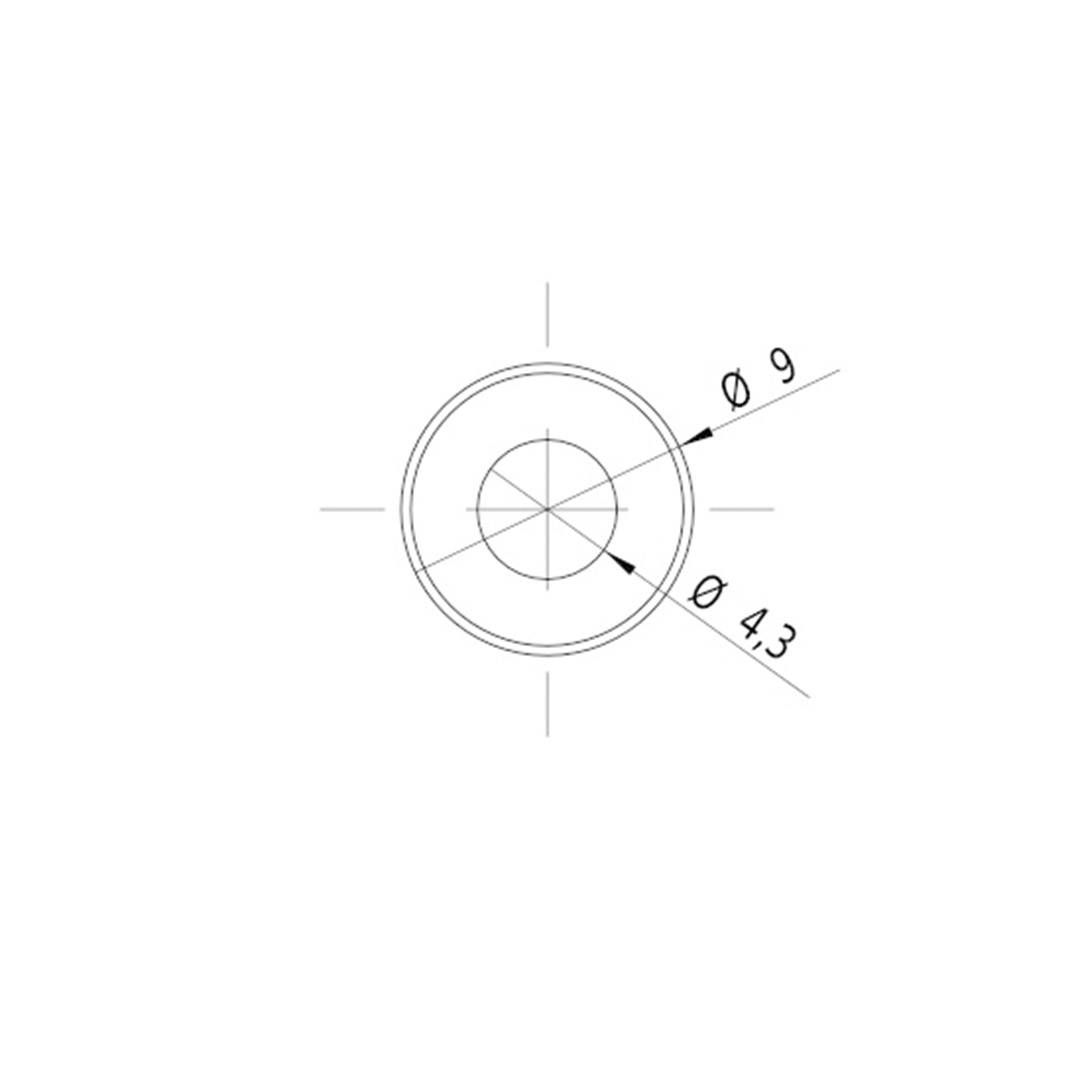

Technical drawing of a circular component with two diameters, Ø9 and Ø4.3, showing the size and relationship of the inner and outer circles.

1/5

Product type

Laser module

Emission characteristics

Line

Wavelength

650 nm

Power

2.8 mW

(Ø)

9 mm

Datasheet (PDF)

English

Picotronic

Dispatches on Thu, 8 Oct

340 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 65.54 / piece)

€ 65.54

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Insulated line laser, red

Red
Laser category: 1
Emission characteristics: Line

Technical specifications

Line width:< 1 mm (1 m)

Product type: Laser module

Type: 8-5 (9 x 22) 650-2. LI-PL-C210

Emission characteristics: Line

Focus properties: 1000 mm fixed-focus

Factory colour: Red

Wavelength: 650 nm

: 2.8 mW

(Ø): 9 mm

Length: 22 mm

Laser category: 1

Angular aperture: 90°

Clearance: 1 m

Operating voltage: 5 V DC

Operating current: 24 mA

Material: Aluminium

Dim: (Ø x L) 9 mm x 22 mm

Weight: 4 g

RoHS-compliant: Yes

Max. temperature: 50 °C

Min. temperature: -20 °C

Documents & Downloads

Datasheet

English

Datasheet 1283384 Picotronic Laser module Line Red 2.8 mW 8-5 (9 x 22) 650-2. LI-PL-C210

User & Safety Instructions

User & Safety Instructions 1283384 Picotronic Laser module Line Red 2.8 mW 8-5 (9 x 22) 650-2. LI-PL-C210

Information

European union

Information 1283384 Picotronic Laser module Line Red 2.8 mW 8-5 (9 x 22) 650-2. LI-PL-C210

Conformity certificate

Conformity certificate 1283384 Picotronic Laser module Line Red 2.8 mW 8-5 (9 x 22) 650-2. LI-PL-C210

Description

Hints

Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
