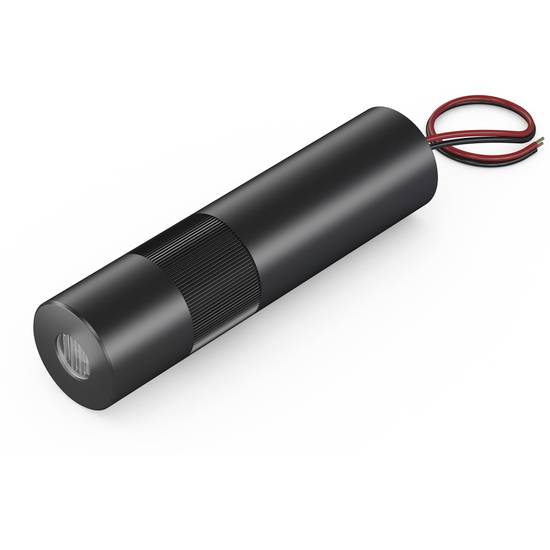

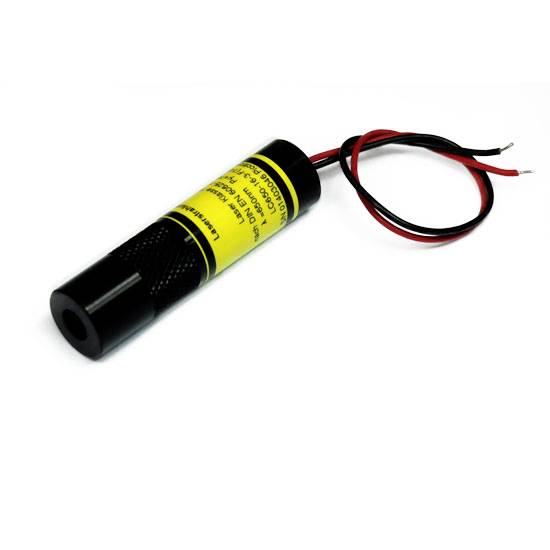

Picotronic Line laser level
EAN:
Part number:
Item no:
Product type
Line laser level
(Ø)
14 mm
Length
62 mm
Laser category
2M
Angular aperture
45 °
Highlights & Details
Adjustable isolated lines laser module, red, 45°, 650nm, typ. 20mW, 24V DC, 14x62mm, class 2M
- Laser category: 2M
Technical specifications
- Material: Aluminium
- Optical power 20 mW
- Lifetime 5000 h
- Operating temperature: - 20 °C to 50 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Line
- Class 2M laser
- Divergence C - 0.4 mrad
- Aperture angle: 45 °
- 4 m operating distance
- Optics: Anti-reflex coated glass lenses
- Laser technology: Single mode diode
- Focus adjustable
- Potential of the housing: Isolated
- Potential of the housing: IsoletFocus: Adjustable
- Cable color GND: Black
- Cable length 100 mm
- Cable type Belden 1007 26AWG
- Outlet diameter of optical 3.5 mm
- Black enclosure
- Product type
Line laser level
- (Ø)
14 mm
- Length
62 mm
- Laser category
2M
- Angular aperture
45°
- Operating voltage
24 V DC
- Operating current
15 mA
- Material
Aluminium
- Dim
(Ø x L) 14 mm x 62 mm
- Weight
16.5 g
- RoHS-compliant
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987504 Picotronic Line laser level
Information
Information 2987504 Picotronic Line laser level
Conformity certificate
Conformity certificate 2987504 Picotronic Line laser level
Description
Features
- Adjustable isolated lines laser module, red, 45°, 650nm, typ. 20mW, 24V DC, 14x62mm, class 2M
- Class 2M laser
- Operating voltage: 24 V DC
- Focus adjustable
- Small opening angle
- Image processing
- This text is machine translated.
