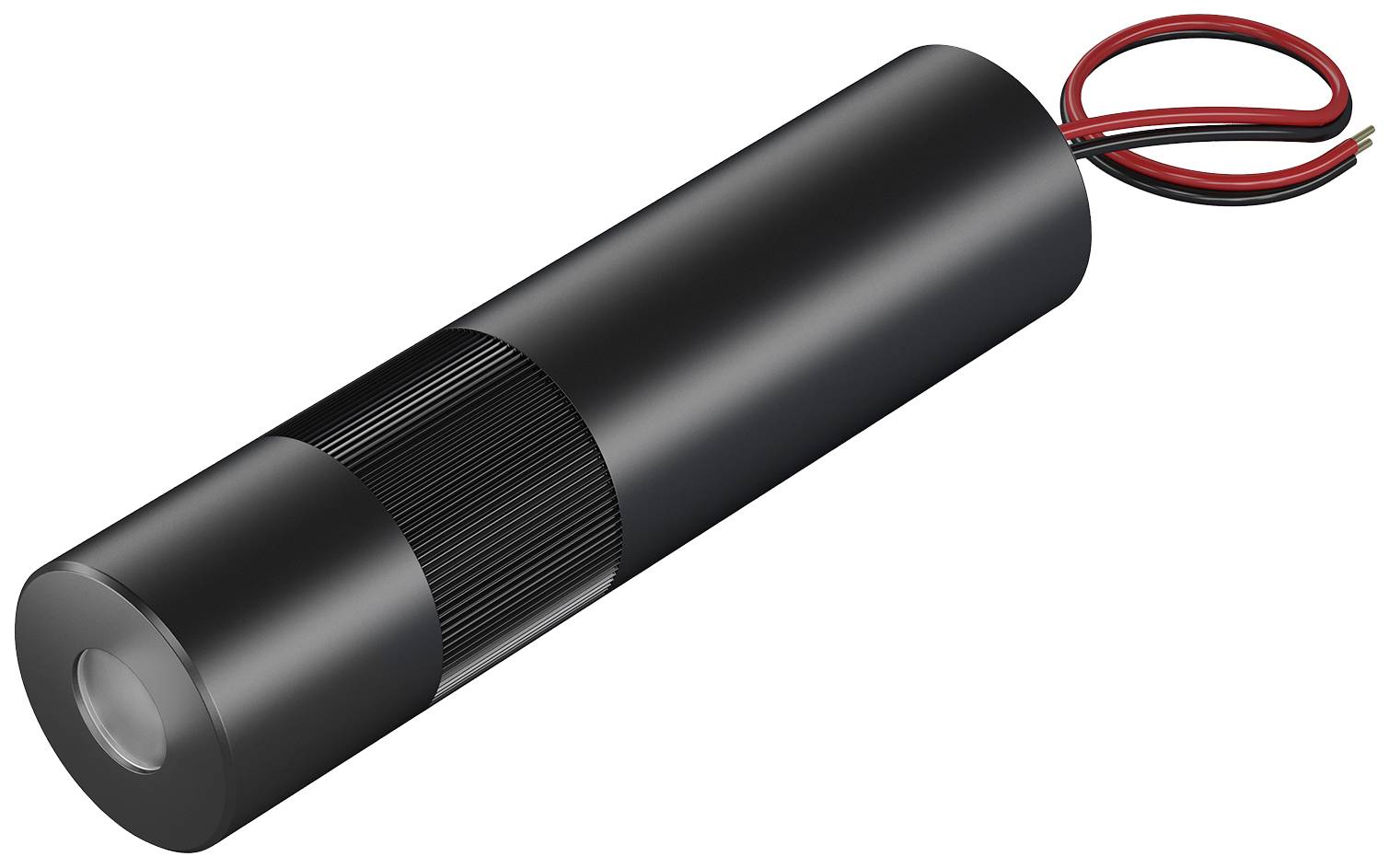

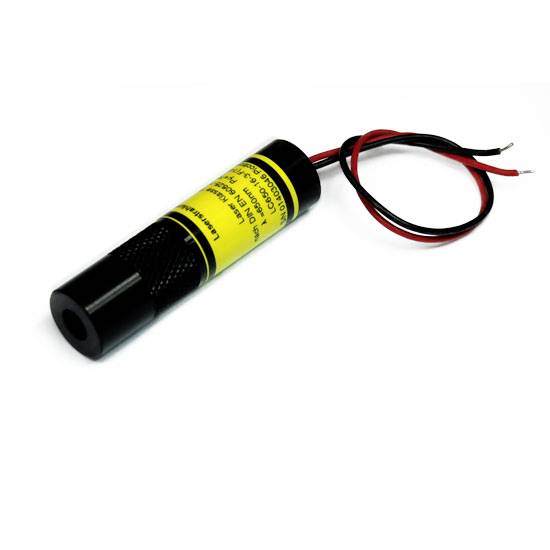

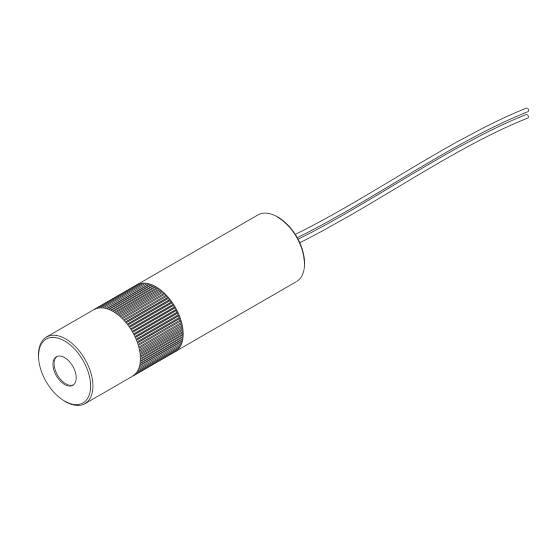

Picotronic Line laser level
EAN:
Part number:
Item no:
Product type
Line laser level
(Ø)
14 mm
Length
45 mm
Laser category
3R
Angular aperture
30 °
Highlights & Details
Adjustable insulated line laser module, infrared, 30°, 850nm, 16mW, 3V DC, 14x45mm, laser class 3R,
- Laser category: 3R
Technical specifications
- Material: Aluminium
- Optical power 16 mW
- Lifetime 5000 h
- Operating temperature: - 20 °C to 50 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Line
- Laser class 3R
- Divergence C - 0.4 mrad
- Aperture angle: 30 °
- 5 m operating distance
- Optics: Anti-reflex coated glass lenses
- Laser technology: Single mode diode
- Focus adjustable
- Potential of the housing: Isolated
- Potential of the housing: IsoletFocus: Adjustable
- Cable color GND: Black
- Cable length 100 mm
- Cable type: 26AWG, 0.14mm²
- Outlet diameter of optical 4 mm
- Black enclosure
- Product type
Line laser level

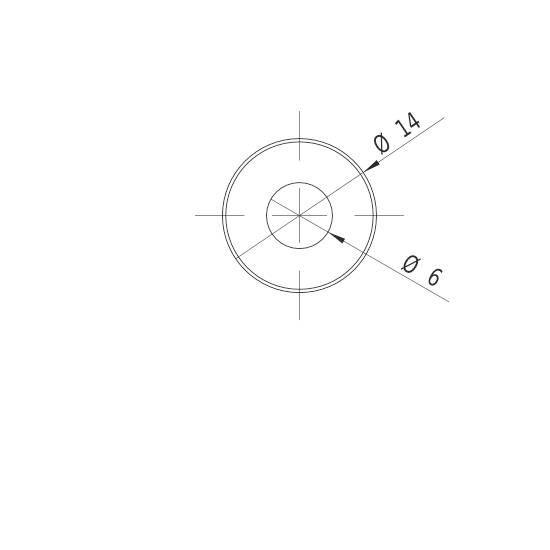

- (Ø)
14 mm
- Length
45 mm
- Laser category
3R
- Angular aperture
30°
- Operating voltage
3 V DC
- Operating current
30 mA
- Material
Aluminium
- Dim
(Ø x L) 14 mm x 45 mm
- Weight
20 g
- RoHS-compliant
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987591 Picotronic Line laser level
Information
Information 2987591 Picotronic Line laser level
Conformity certificate
Conformity certificate 2987591 Picotronic Line laser level
Description
Features
- Adjustable insulated line laser module, infrared, 30°, 850nm, 16mW, 3V DC, 14x45mm, laser class 3R,
- Operating voltage: 3 V DC
- Class 3R laser
- Focus adjustable
- Low power consumption
- Compact design
