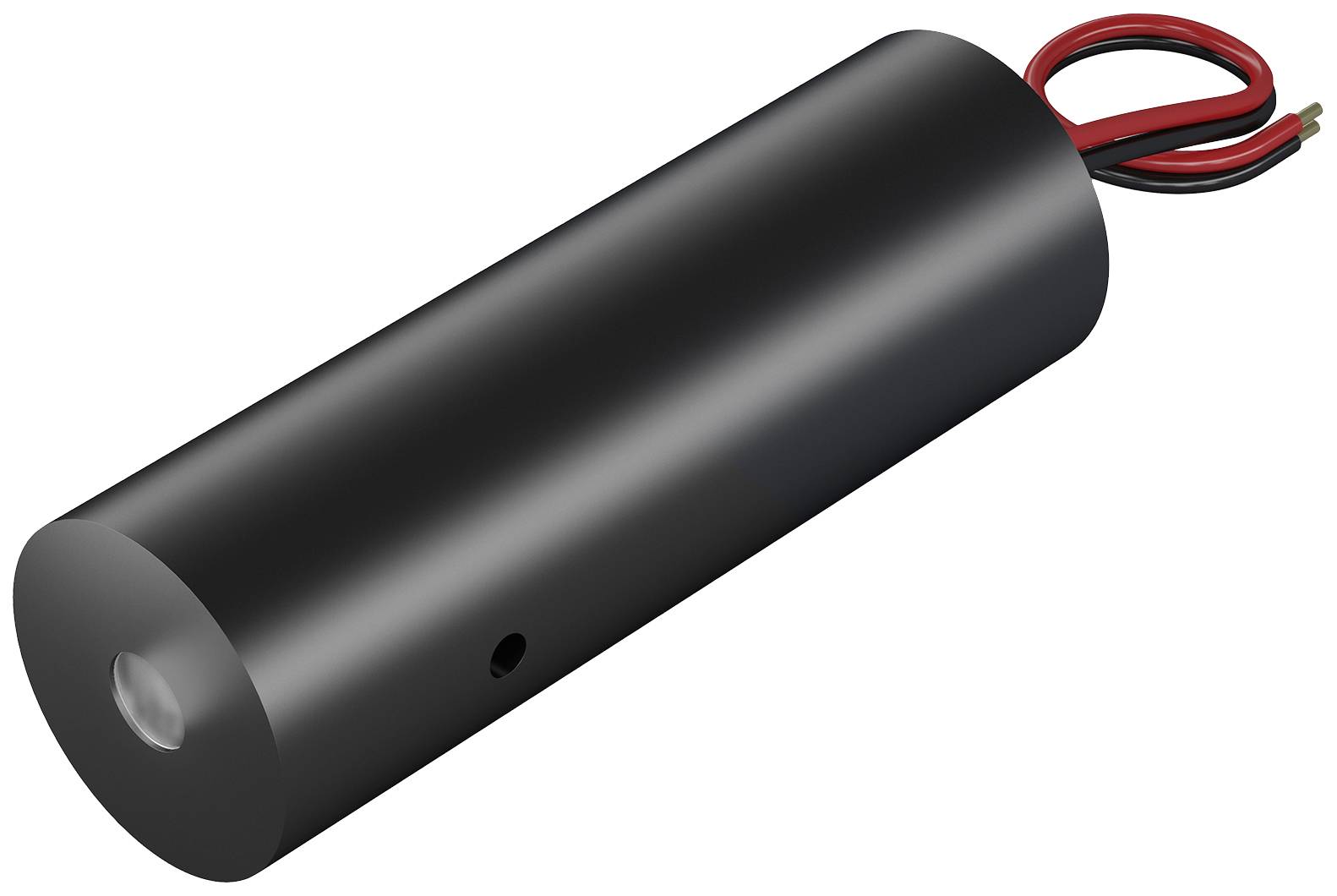

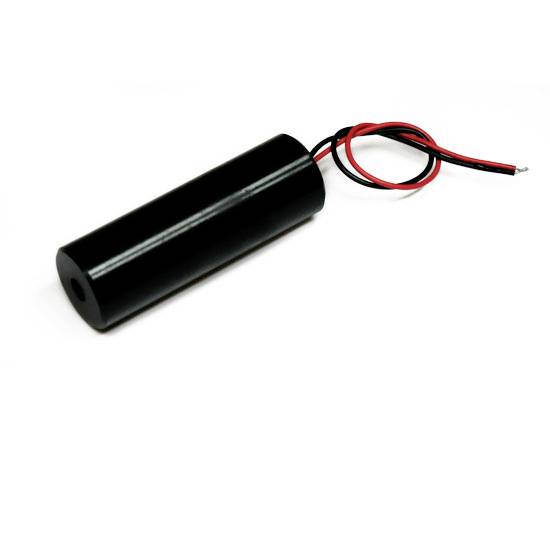

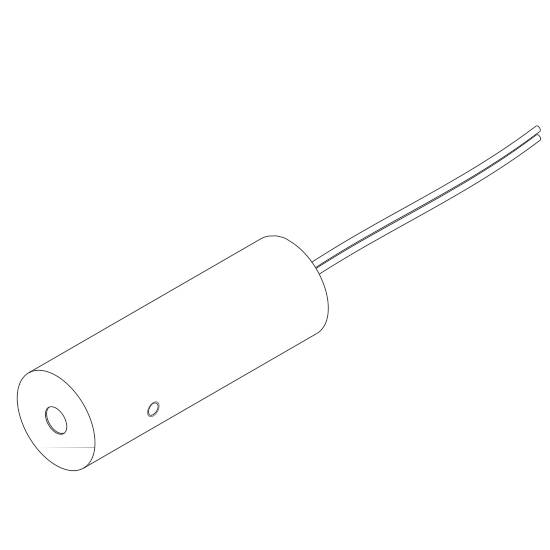

Picotronic Line laser level
EAN:
Part number:
Item no:
Product type
Line laser level
(Ø)
20 mm
Length
60 mm
Laser category
3B
Angular aperture
60 °
Highlights & Details
Insulated line laser module, infrared, 60°, 808nm, 200mW, 3V DC, 20x60mm, class 3B
- Laser category: 3B
Technical specifications
- Material: Aluminium
- Optical power 200 mW
- Lifetime 5000 h
- Operating temperature: - 20 °C to 50 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Line
- Class 3B laser
- Divergent: H - 1.0 mrad
- Aperture angle: 60 °
- 1 m operating distance
- Optics: Anti-reflex coated glass lenses
- Laser technology: Single mode diode
- Focus: Fixed (1000mm)
- Potential of the housing: Isolated
- Potential of the housing: IsolatenFocus: Fixed (1000mm)
- Cable color GND: Black
- Cable length 100 mm
- Cable type: 26AWG, 0.14mm²

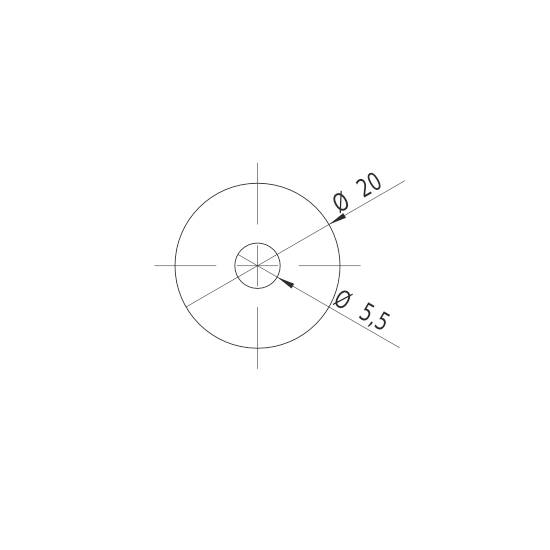

- Outlet diameter of optical 5.5 mm
- Black enclosure
- Product type
Line laser level
- (Ø)
20 mm
- Length
60 mm
- Laser category
3B
- Angular aperture
60°
- Operating voltage
3 V DC
- Operating current
380 mA
- Material
Aluminium
- Dim

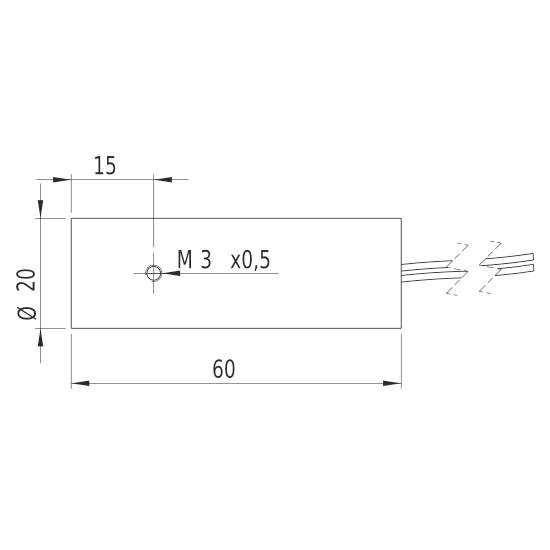

(Ø x L) 20 mm x 60 mm
- Weight
43 g
- RoHS-compliant
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987623 Picotronic Line laser level
Information
Information 2987623 Picotronic Line laser level
Conformity certificate
Conformity certificate 2987623 Picotronic Line laser level
Description
Features
- Insulated line laser module, infrared, 60°, 808nm, 200mW, 3V DC, 20x60mm, class 3B
- Image processing
- Compact design
- Uniform line width
- High performance
- Operating voltage: 3 V DC
