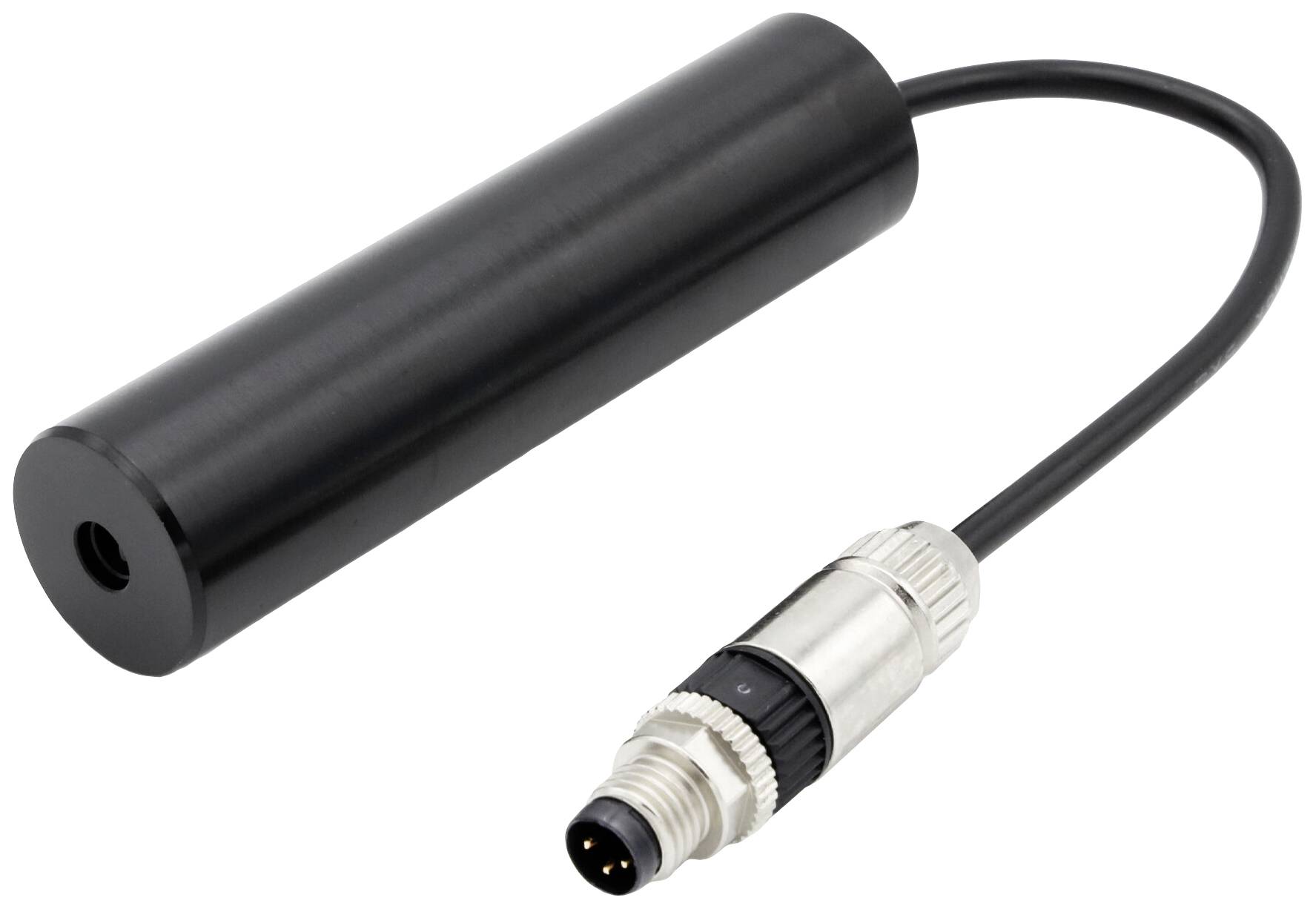

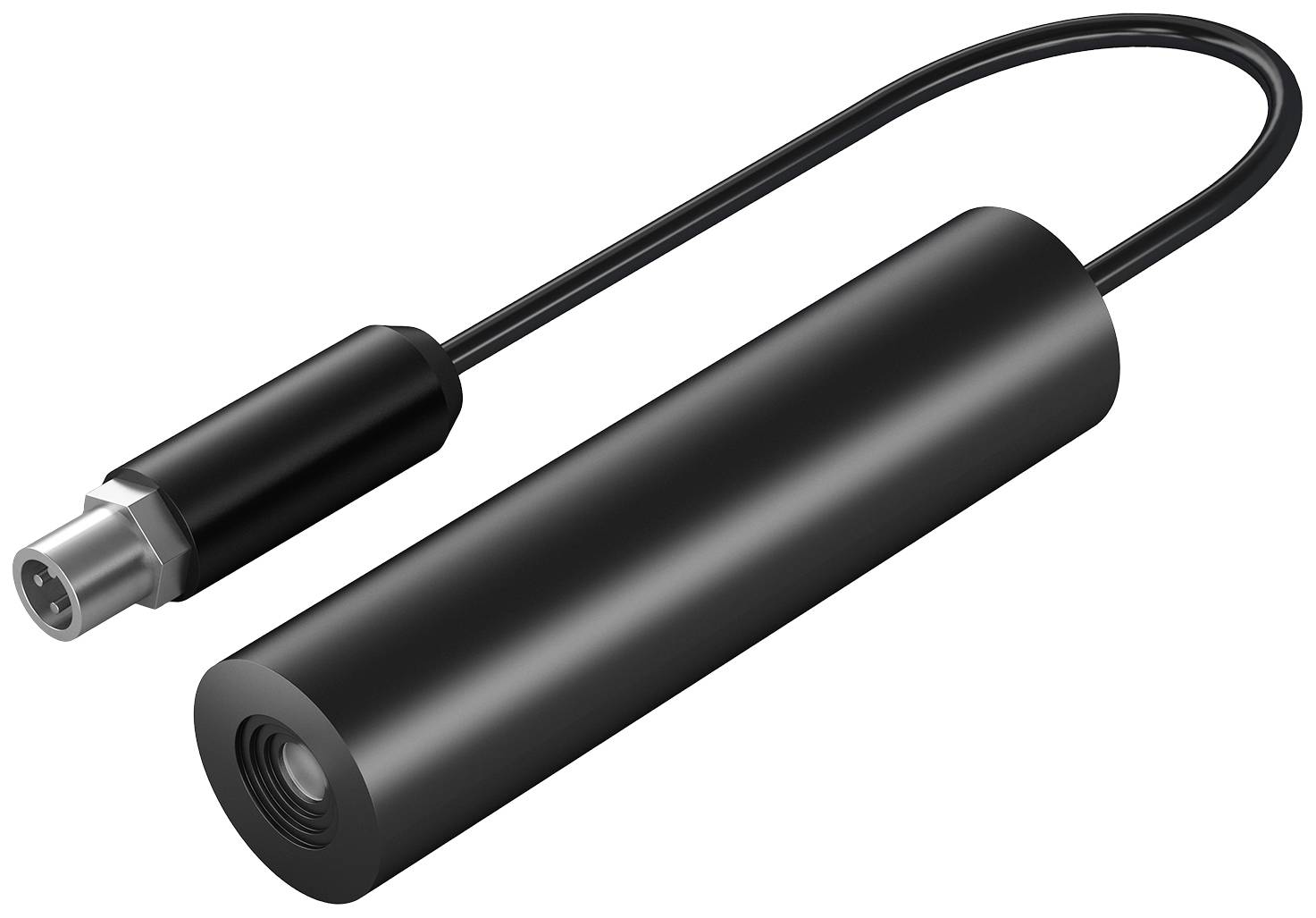

Picotronic Line laser level Line 10 mW
EAN:
Part number:
Item no:
Product type
Line laser level
Emission characteristics
Line
Wavelength
532 nm
Power
10 mW
(Ø)
20 mm
Highlights & Details
Line laser, green, 532nm, 10mW, 90°, Laser class 1, focus 0.8 m, 24V DC, 20x80mm, plug-con_7000-08331-0000000
- Laser category: 1
- Emission characteristics: Line
Technical specifications
- Material: Aluminium
- Optical power 10 mW
- Lifetime 10,000 h
- Operating temperature 15°C - 30 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Line
- Class 1 laser
- Divergence D - 0.5 mrad
- Aperture angle: 90 °
- 0.8 m operating distance
- Optics: Anti-reflex coated glass lenses
- Laser technology: YVO4+KTP
- Focus: Fixed (800mm)
- Potential of the housing: Isolated
- Potential of the housing: IsolatenFocus: Fixed (800mm)
- Cable color GND: Black
- Cable length 100 mm
- Cable type 22AWG, black, 3.6mm
- Outlet diameter of optical 6 mm
- Protective lens: No.
- Product type
Line laser level
- Emission characteristics
Line
- Focus properties
800 mm fixed-focus
- Wavelength
532 nm
10 mW
- (Ø)
20 mm
- Length
80 mm
- Laser category
1
- Angular aperture
90°
- Beam divergence
0.5 mrad
- Clearance
0.8 m
- Operating voltage
24 V DC
- Operating current
55 mA
- Material
Aluminium

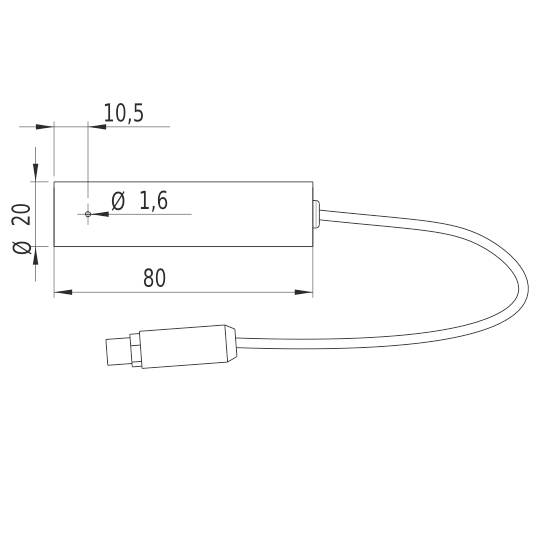

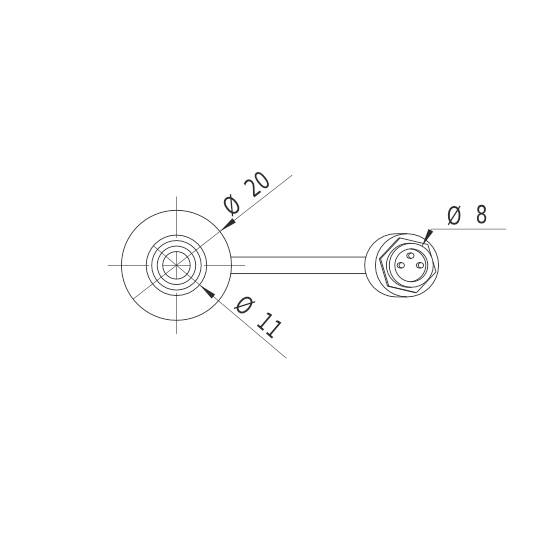

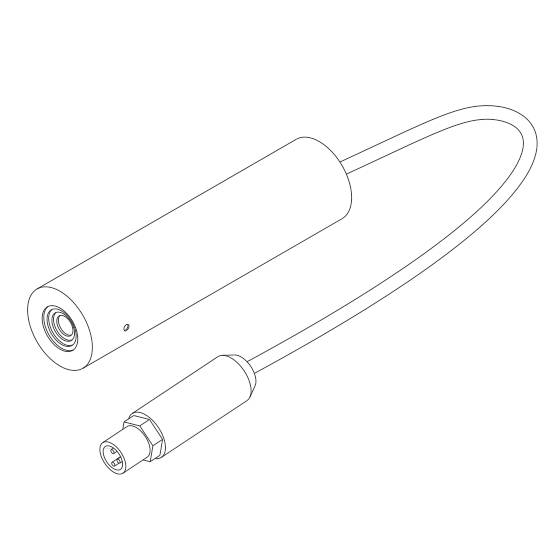

- Dim
(Ø x L) 20 mm x 80 mm
- Weight
68 g
- RoHS-compliant
Yes
- Max. temperature
30 °C
- Min. temperature
15 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987585 Picotronic Line laser level Line 10 mW
Information
Information 2987585 Picotronic Line laser level Line 10 mW
Conformity certificate
Conformity certificate 2987585 Picotronic Line laser level Line 10 mW
Description
Features
- Line laser, green, 532nm, 10mW, 90°, Laser class 1, focus 0.8 m, 24V DC, 20x80mm, plug-con_7000-08331-0000000
- The LD532-10-24(20x80)-70115666 is a green line laser module with a wavelength of 532nm (DPSS). The laser has a compact design (20x80mm). The service life of the laser module is greater than 10,000 hours. The 90° opening angle creates a line of 1.6m length at a distance of 0.8m. This line laser is used for example in leveling devices, laser marking systems, for component positioning, in industry, handicraft, Hobby and the show area. This module falls into the laser class 1.
- Radiation characteristics: Line, line thickness 1mm@0.8m
- Optical power: 10mW (laser class 1); focus 0.8m
- Compact design: 20x80mm; opening angle: 90°; axis deviation: Up to 3.0°, connector CON_7000-08331-0000000

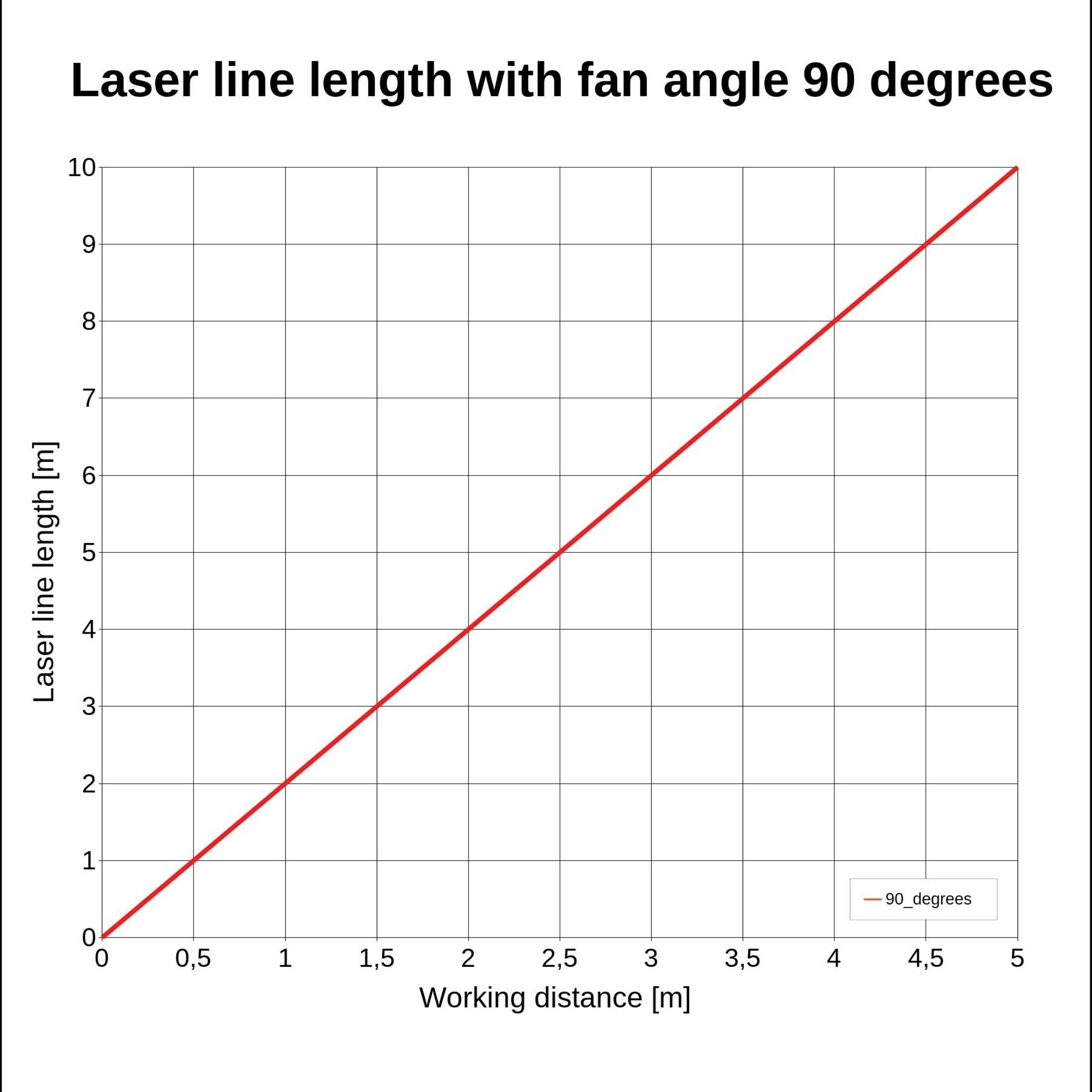

- The opening angle (90°) generates a laser line length of 1.6m at a working distance of 0.8m.

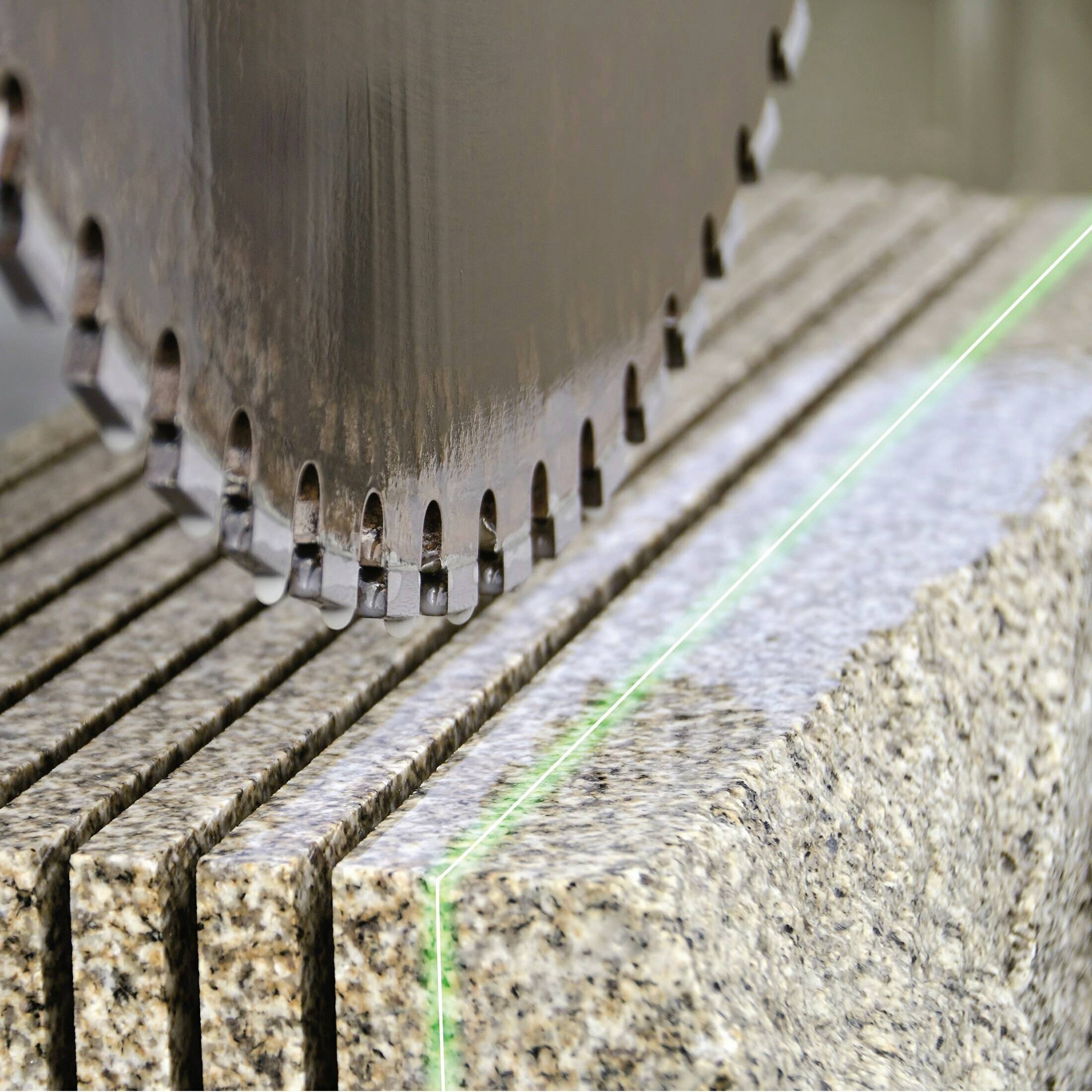

- For applications in e.g. laser spirit levels, laser marking systems, in industry and trade, hobby and the show sector. Voltage supply 24V.
- This text is machine translated.
