Name: Picotronic Line laser level Line 15 mW 70120455
Brand: Picotronic
SKU: 2987651

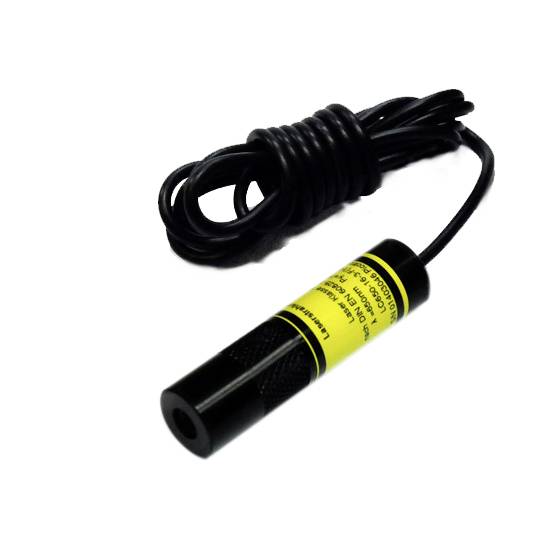

A black laser pointer with a yellow warning label and cable. It is lying on a white surface.

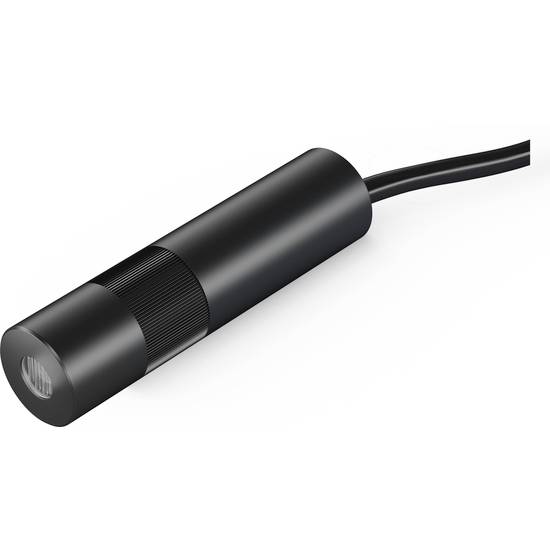

A cylindrical, black sensor body with a cable, suitable for precise optical measurements in industrial applications.

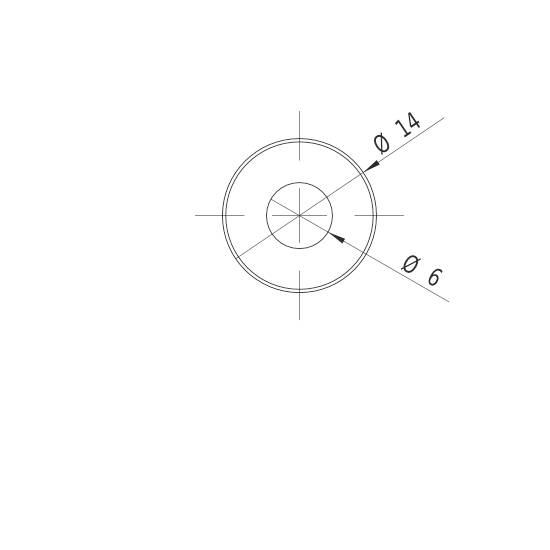

Technical drawing of a circle with two radial dimensions: outer diameter 14, inner diameter 6.

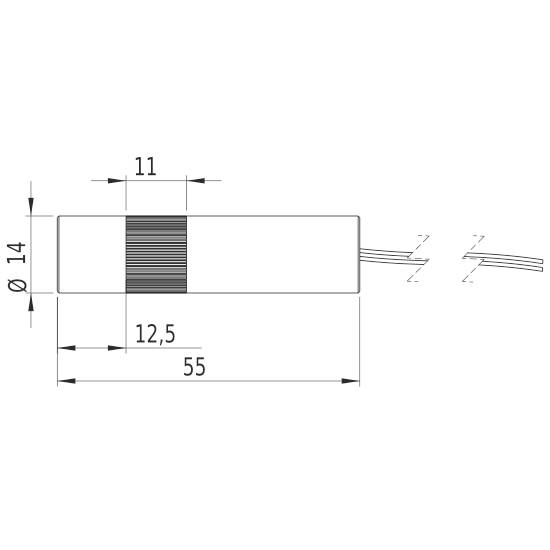

Technical drawing of a cylindrical component with dimensions: diameter 14 mm, total length 55 mm, ribbed section 11 mm.

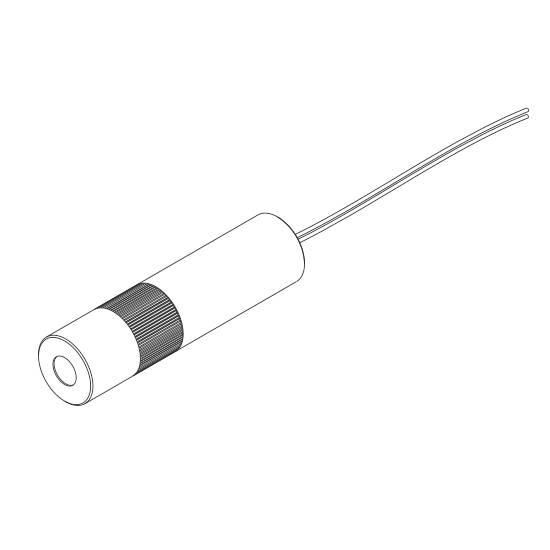

Cylindrical microphone in a black and white drawing with cable. It shows the typical shape and details of a microphone without colour details.

1/5

Product type

Line laser level

Emission characteristics

Line

Wavelength

635 nm

Power

15 mW

(Ø)

5.5 mm

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Insulated line laser module, red, 45°, 635nm, 15mW, 5V DC, 14x55mm, focus 0.4m, class 2

Laser category: 2
Emission characteristics: Line

Technical specifications

Material: Aluminium
Optical power 15 mW
Lifetime 5000 h
Operating temperature: - 20 °C to 50 °C
Storage temperature: -40°C to 80 °C.
Beam form: Line
Class 2 laser
Divergence E-0.6 mrad
Aperture angle: 45 °
0.4 m operating distance
Optics: Anti-reflex coated glass lenses
Laser technology: Single mode diode
Focus: Fixed (400mm)
Potential of the housing: Isolated
Potential of the housing: IsolatenFocus: Fixed (400mm)
Cable color GND: Black
Cable length: 500 mm
Cable type 18AWG, black, 3.6mm
Outlet diameter of optical 5.5 mm
Black enclosure
Stripping length of cable sleeve 50 mm

Product type: Line laser level

Type: 70120455

Emission characteristics: Line

Focus properties: 400 mm fixed-focus

Wavelength: 635 nm

: 15 mW

(Ø): 5.5 mm

Length: 55 mm

Laser category: 2

Angular aperture: 45°

Beam divergence: 0.6 mrad

Clearance: 0.4 m

Operating voltage: 5 V DC

Operating current: 80 mA

Material: Aluminium

Dim: (Ø x H) 5.5 mm x 55 mm

Weight: 28 g

RoHS-compliant: Yes

Width: 14 mm

Height: 55 mm

Max. temperature: 50 °C

Min. temperature: -20 °C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2987651 Picotronic Line laser level Line 15 mW 70120455

Information

Information 2987651 Picotronic Line laser level Line 15 mW 70120455

Conformity certificate

Conformity certificate 2987651 Picotronic Line laser level Line 15 mW 70120455

Features

Insulated line laser module, red, 45°, 635nm, 15mW, 5V DC, 14x55mm, focus 0.4m, class 2, with aperture for more homogeneous beam profile.
500mm cable length
Class 2 laser
Low power consumption
Uniform line width
Image processing
This text is machine translated.

Description

Features

Insulated line laser module, red, 45°, 635nm, 15mW, 5V DC, 14x55mm, focus 0.4m, class 2, with aperture for more homogeneous beam profile.
500mm cable length
Class 2 laser
Low power consumption
Uniform line width
Image processing
This text is machine translated.
