Picotronic Line laser level Line 25 mW
EAN:
Part number:
Item no:
Product type
Line laser level
Emission characteristics
Line
Wavelength
635 nm
Power
25 mW
(Ø)
20 mm
Highlights & Details

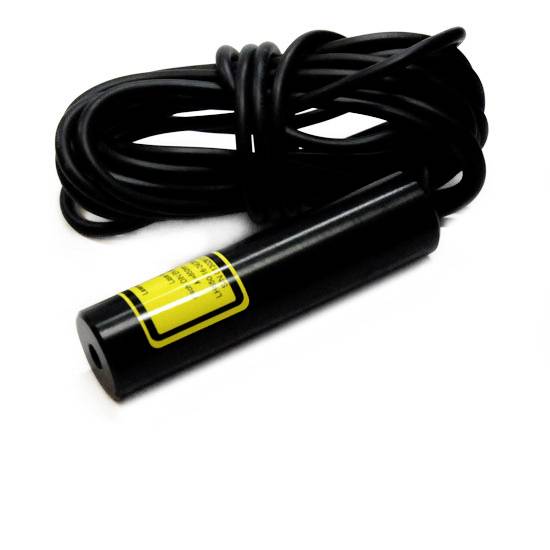

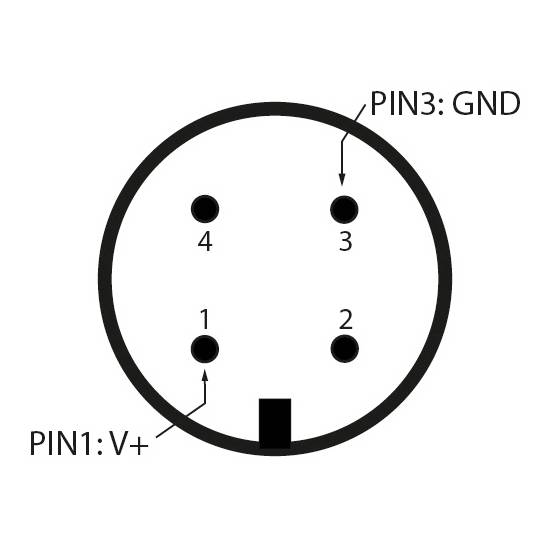

Insulated line laser module, red, 90°, 635nm, 25mW, 24V DC, 20x80mm, class 2M, cable length 200m, M12x1 connector
- Laser category: 2M
- Emission characteristics: Line
Technical specifications
- Material: Aluminium
- Optical power 25 mW
- Lifetime 10,000 h
- Operating temperature: - 20 °C to 50 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Line
- Class 2M laser
- Divergence D - 0.5 mrad
- Aperture angle: 90 °
- 7 m operating distance
- Optics: Anti-reflex coated glass lenses
- Laser technology: Single mode diode
- Focus: Fixed (5.0m)
- Potential of the housing: Isolated
- Potential of the housing: IsolatenFocus: Fixed (5.0m)
- Cable color GND: White
- Cable length 200 mm
- Cable type 18AWG, black, 3.6mm
- Outlet diameter of optical 5.5 mm
- Black enclosure
- Product type
Line laser level
- Emission characteristics
Line
- Focus properties
Fixed-focus
- Wavelength
635 nm
25 mW
- (Ø)
20 mm
- Length
80 mm
- Laser category
2M
- Angular aperture
90°
- Beam divergence
0.5 mrad
- Clearance
7 m
- Operating voltage
24 V DC
- Operating current
140 mA
- Material
Aluminium
- Dim
(Ø x L) 20 mm x 80 mm
- Weight
98 g
- RoHS-compliant
Yes
- Max. temperature
50 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987404 Picotronic Line laser level Line 25 mW
Information
Information 2987404 Picotronic Line laser level Line 25 mW
Conformity certificate
Conformity certificate 2987404 Picotronic Line laser level Line 25 mW
Description
Features
- Insulated line laser module, red, 90°, 635nm, 25mW, 24V DC, 20x80mm, class 2M, cable length 200m, M12x1 connector
- Operating voltage: 24 V DC
- Class 2M laser
- Uniform line width
- High output power
- Compact laser head
