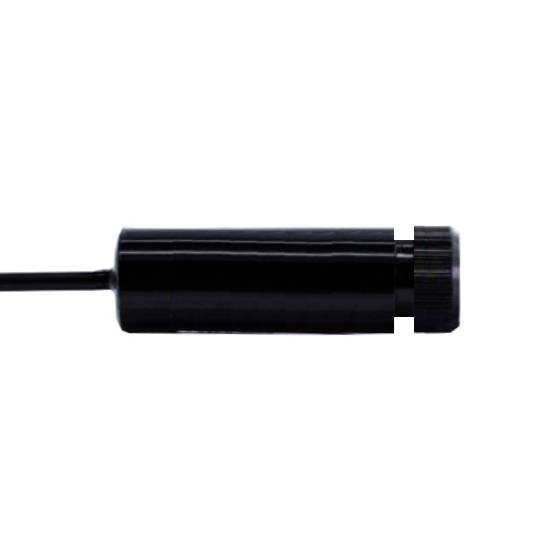

Picotronic Line laser level Line 3 mW
EAN:
Part number:
Item no:
Product type
Line laser level
Emission characteristics
Line
Wavelength
650 nm
Power
3 mW
(Ø)
6 mm
Highlights & Details
Adjustable line laser module, red, 110°, 650nm, 3mW, 3-5V DC, 12x45mm, class 1
- Laser category: 1
- Emission characteristics: Line
Technical specifications
- Material: Aluminium
- Optical power 3 mW
- Lifetime 10,000 h
- Operating temperature: -10°C - 40 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Line
- Class 1 laser
- Divergent: H - 1.0 mrad
- Aperture angle: 110 °
- 0.8 m operating distance
- Optics: Anti-reflex coated glass lenses
- Laser technology: Single mode diode
- Focus adjustable
- Potential of the housing: Isolated
- Potential of the housing: IsoletFocus: Adjustable
- Cable color GND: Black
- Cable length: 150 mm.
- Cable type 24AWG, black, 3mm
- Outlet diameter of optical 6 mm
- Black enclosure
- Product type
Line laser level
- Emission characteristics
Line
- Focus properties
Selectable focus
- Wavelength
650 nm
3 mW
- (Ø)
6 mm
- Length
45 mm
- Laser category
1
- Angular aperture
110°
- Beam divergence
1.0 mrad
- Clearance
0.8 m
- Operating voltage
4.5 V DC
- Operating current
20 mA
- Material
Aluminium
- Dim
(Ø x L) 6 mm x 45 mm
- Weight
7.3 g
- RoHS-compliant
Yes
- Width
12 mm
- Max. temperature
80 °C
- Min. temperature
-40 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987518 Picotronic Line laser level Line 3 mW
Information
Information 2987518 Picotronic Line laser level Line 3 mW
Conformity certificate
Conformity certificate 2987518 Picotronic Line laser level Line 3 mW
Description
Features
- Adjustable line laser module, red, 110°, 650nm, 3mW, 3-5V DC, 12x45mm, class 1
- Operating voltage 3 V DC
- Laser Class 1
- Low-cost laser
- 110 ° aperture angle
- Compact design
