1/5
Picotronic Line laser level Line 4 mW
EAN:
Part number:
Item no:
Product type
Line laser level
Emission characteristics
Line
Wavelength
635 nm
Power
4 mW
(Ø)
12 mm
Highlights & Details

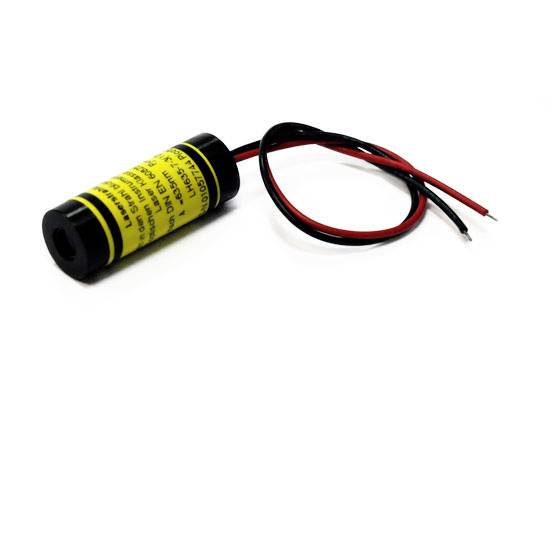

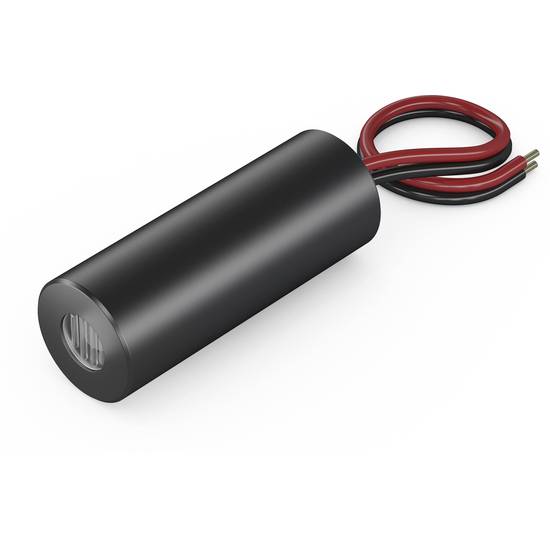

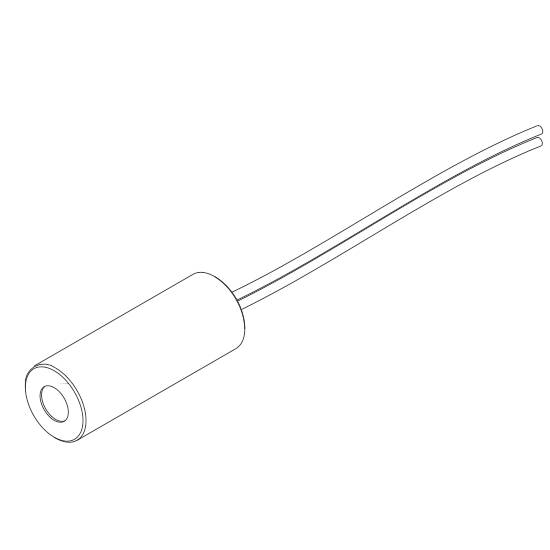

Insulated line laser module, red, 90°, 635nm, 4mW, 5V DC, 12x32mm, class 1
- Laser category: 1
- Emission characteristics: Line
Technical specifications
- Material: Aluminium
- Optical power 4 mW
- Life: 6000 h
- Operating temperature: - 20 °C to 50 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Line
- Class 1 laser
- Divergent: H - 1.0 mrad
- Aperture angle: 90 °
- 3 m operating distance
- Optics: Anti-reflex coated glass lenses
- Laser technology: Single mode diode
- Focus: Fixed (3000mm)
- Potential of the housing: Isolated
- Potential of the housing: IsolatenFocus: Fixed (3000mm)
- Cable color GND: Black
- Cable length 100 mm
- Cable type Belden 1007 26AWG

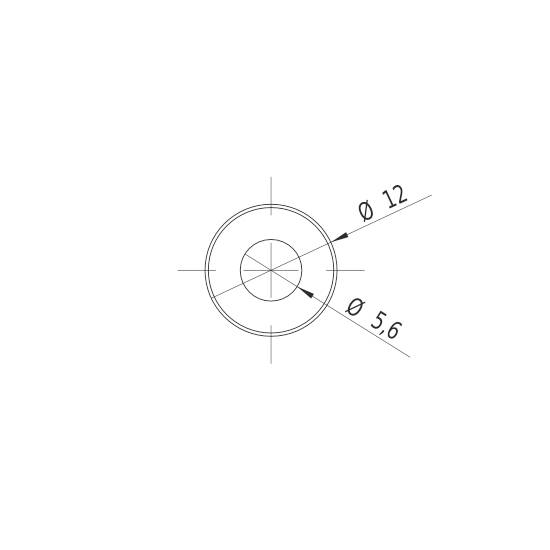

- Outlet diameter of optical 5 mm
- Black enclosure
- Product type
Line laser level
- Emission characteristics
Line
- Focus properties
3000 mm fixed-focus
- Wavelength
635 nm
4 mW
- (Ø)
12 mm
- Length
32 mm
- Laser category
1
- Angular aperture
90°
- Beam divergence
1.0 mrad
- Clearance
3 m
- Operating voltage
5 V DC
- Operating current
50 mA
- Material
Aluminium
- Dim

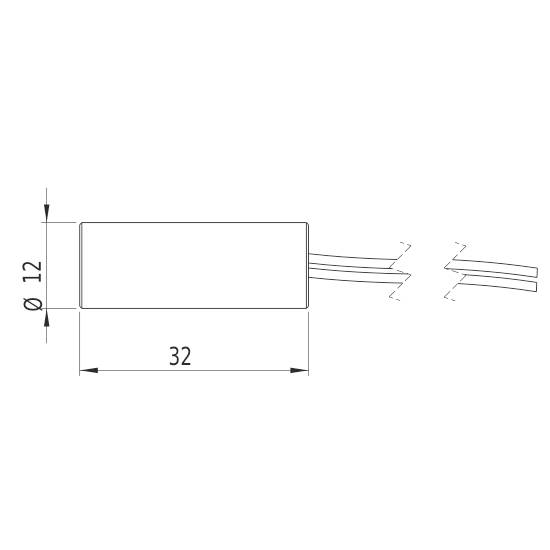

(Ø x H) 12 mm x 32 mm
- Weight
7 g
- RoHS-compliant
Yes
- Width
12 mm
- Height
32 mm
- Max. temperature
50 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987457 Picotronic Line laser level Line 4 mW
Information
Information 2987457 Picotronic Line laser level Line 4 mW
Conformity certificate
Conformity certificate 2987457 Picotronic Line laser level Line 4 mW
Description
Features
- Insulated line laser module, red, 90°, 635nm, 4mW, 5V DC, 12x32mm, class 1
- Operating voltage: 5V DC
- Laser Class 1
- Aperture angle 90°
- Preset focus
- Compact design
