Picotronic Line laser level Line 5 mW
EAN:
Part number:
Item no:
Product type
Line laser level
Emission characteristics
Line
Wavelength
650 nm
Power
5 mW
(Ø)
14 mm
Highlights & Details
Insulated linear laser, red, 650nm, 5mW 3V DC, 90 degree, 14x45mm, class 1, focus 100mm, waterproof, IP67
- Laser category: 1
- Emission characteristics: Line
Technical specifications
- Material: Aluminium
- Optical power 5 mW
- Lifetime 5000 h
- Operating temperature: - 20 °C to 50 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Line
- Class 1 laser
- Divergence D - 0.5 mrad
- Aperture angle: 90 °
- 0.1 m operating distance
- Optics: Anti-reflex coated glass lenses
- Laser technology: Single mode diode
- Focus: Fixed
- Potential of the housing: Isolated
- Potential of the housing: IsolatenFocus: Fixed
- Cable color GND: Black
- Cable length: 300 mm
- Cable type 18AWG, black, 3.6mm
- Black enclosure
- Protective lens: Yes
- IP 67 protection
- Stripping length of cable sleeve 20 mm
- Product type
Line laser level
- Emission characteristics
Line
- Focus properties
100 mm fixed-focus
- Wavelength
650 nm
5 mW
- (Ø)
14 mm
- Length
45 mm
- Laser category
1
- Angular aperture
90°
- Beam divergence
0.5 mrad
- Clearance
0.1 m
- Operating voltage
3 V DC
- Operating current
25 mA
- Material
Aluminium

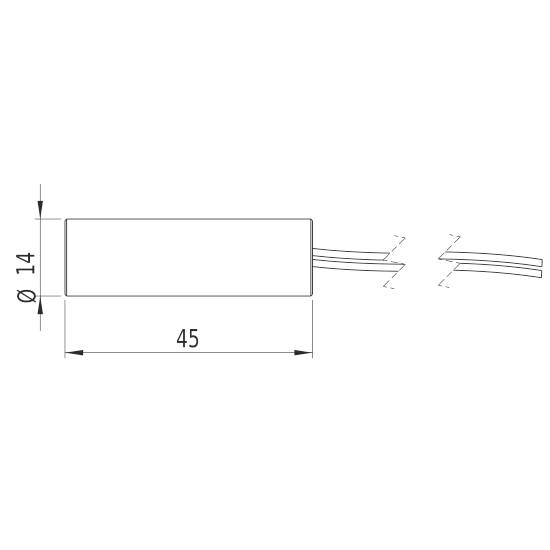

- Dim
(Ø x H) 14 mm x 45 mm
- Weight
7 g
- RoHS-compliant
Yes
- Width
14 mm
- Height
45 mm
- Max. temperature
50 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987425 Picotronic Line laser level Line 5 mW
Information
Information 2987425 Picotronic Line laser level Line 5 mW
Conformity certificate
Conformity certificate 2987425 Picotronic Line laser level Line 5 mW
Description
Features
- Insulated linear laser, red, 650nm, 5mW 3V DC, 90 degree, 14x45mm, class 1, focus 100mm, waterproof, IP67
- Watertight: (IP67)
- Low power consumption
- Compact design
- Laser Class 1
