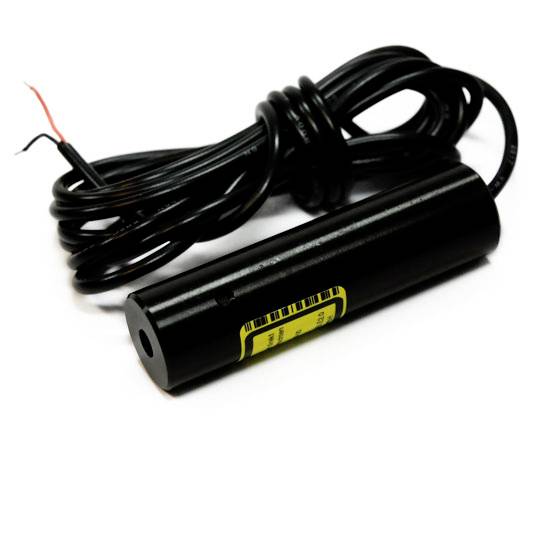

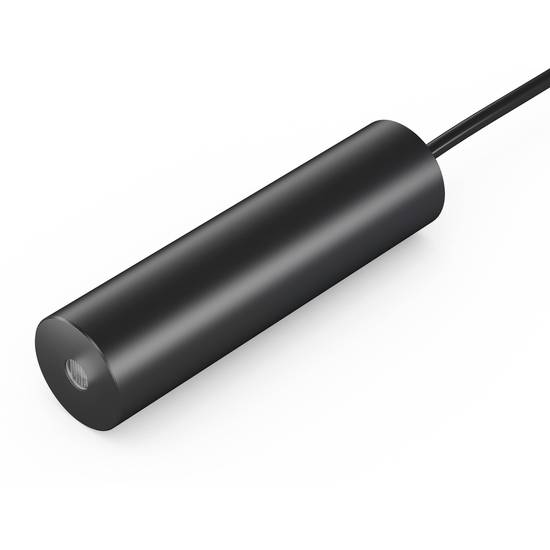

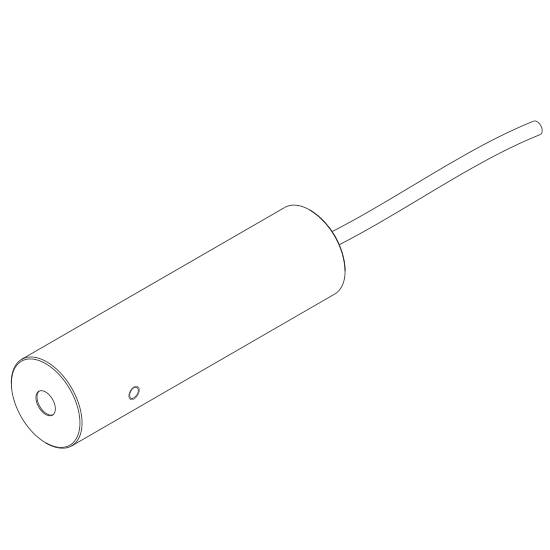

Picotronic Line laser level Line 5 mW
EAN:
Part number:
Item no:
Product type
Line laser level
Emission characteristics
Line
Wavelength
650 nm
Power
5 mW
(Ø)
5.5 mm
Highlights & Details
Insulated lines laser module, red, 45°, 650nm, 5mW, 3V DC, 20x75mm, class 1
- Laser category: 1
- Emission characteristics: Line
Technical specifications
- Material: Aluminium
- Optical power 5 mW
- Lifetime 5000 h
- Operating temperature: - 20 °C to 50 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Line
- Class 1 laser
- Divergence E-0.6 mrad
- Aperture angle: 45 °
- 0.5 m operating distance
- Optics: Anti-reflex coated glass lenses
- Laser technology: Diode
- Focus: Fixed (500mm)
- Potential of the housing: Isolated
- Potential of the housing: IsolatenFocus: Fixed (500mm)
- Cable color GND: Black
- Cable length 2,000 mm
- Cable type 18AWG, black, 3.6mm

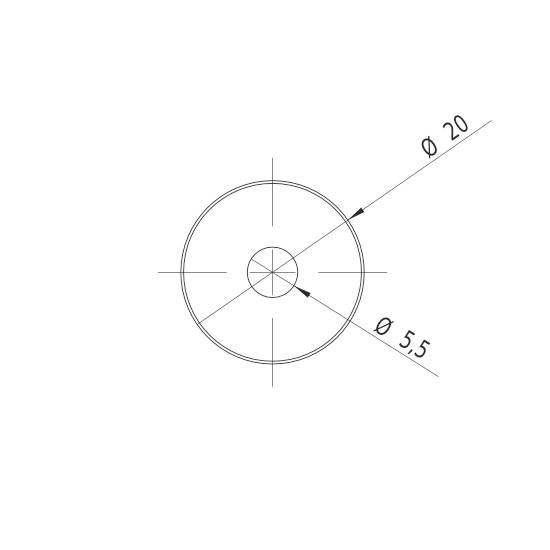

- Outlet diameter of optical 5.5 mm
- Product type
Line laser level
- Emission characteristics
Line
- Focus properties
500 m fixed-focus
- Wavelength
650 nm
5 mW
- (Ø)
5.5 mm
- Length
75 mm
- Laser category
1
- Angular aperture
45°
- Beam divergence
0.6 mrad
- Clearance
0.5 m
- Operating voltage
3 V DC
- Operating current
30 mA
- Material
Aluminium

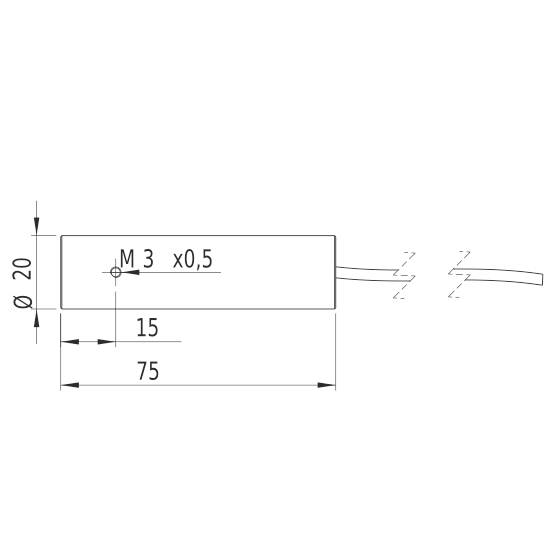

- Dim
(Ø x L) 5.5 mm x 75 mm
- Weight
73 g
- RoHS-compliant
Yes
- Width
20 mm
- Max. temperature
50 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987439 Picotronic Line laser level Line 5 mW
Information
Information 2987439 Picotronic Line laser level Line 5 mW
Conformity certificate
Conformity certificate 2987439 Picotronic Line laser level Line 5 mW
Description
Features
- Insulated lines laser module, red, 45°, 650nm, 5mW, 3V DC, 20x75mm, class 1
- Laser Class 1
- Operating voltage: 3 V DC
- Uniform line width
- Aperture angle 45 °
- Anti-reflex coated glass lenses
