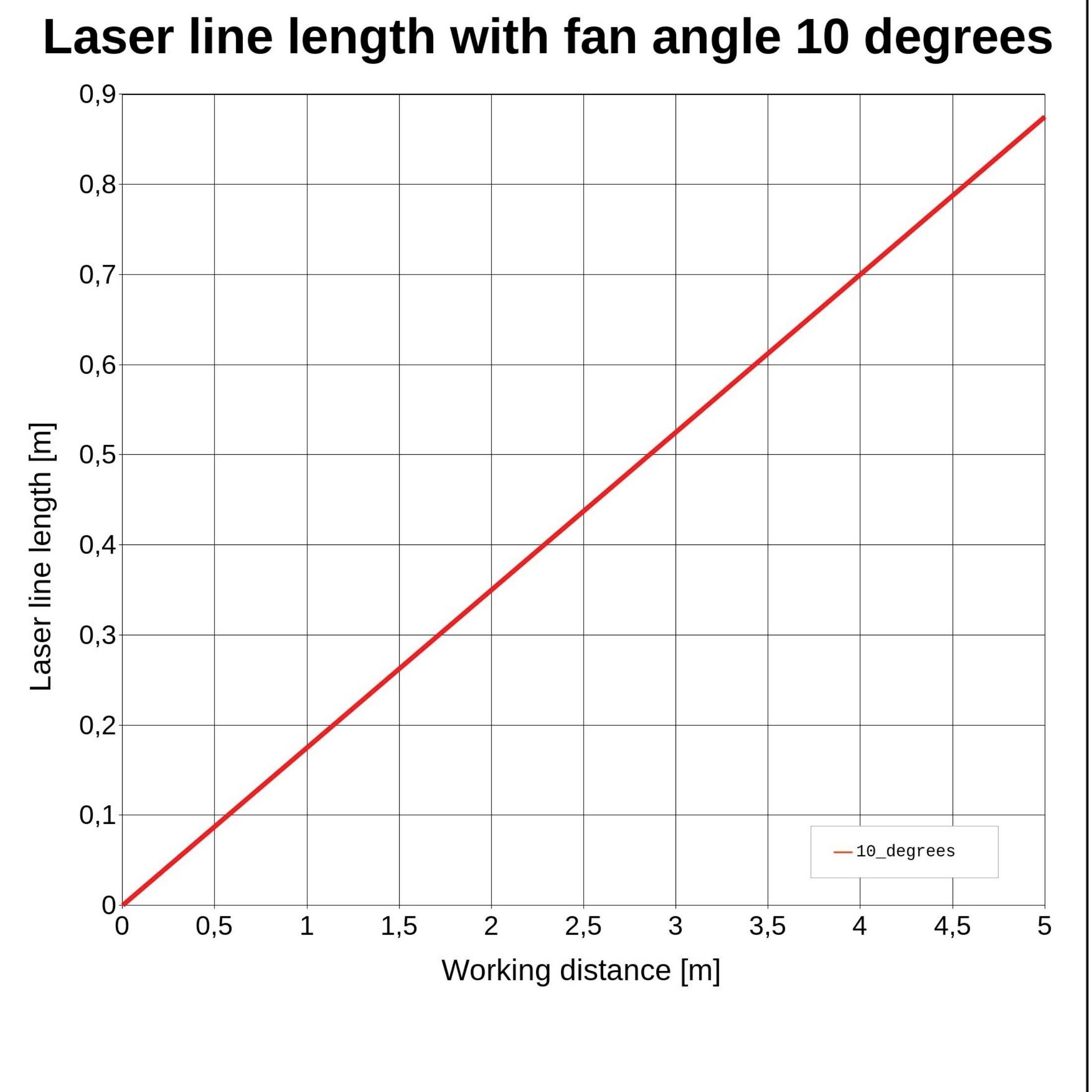

!['Diagram: Laser Line Length with Fan Angle of 10 Degrees. Axes: Working Distance [m], Laser Line Length [m]. Shows Linear Growth.'](https://asset.conrad.com/media10/isa/160267/c1/-/en/002987473TI03/image.jpg?x=400&y=400&format=jpg&ex=400&ey=400&align=center)
1/9

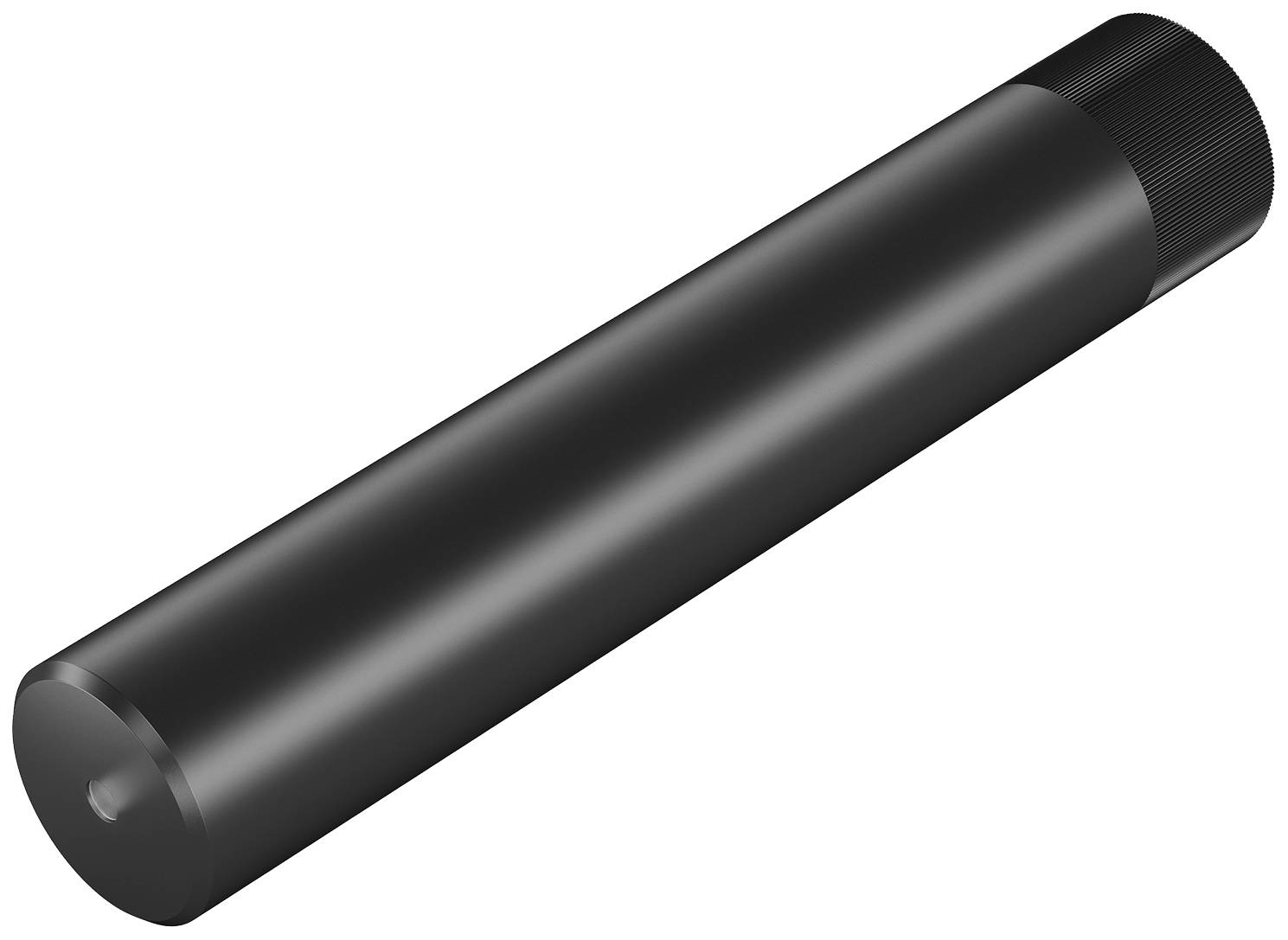

Picotronic Line laser level Line 5 mW
EAN:
Part number:
Item no:
Product type
Line laser level
Emission characteristics
Line
Wavelength
650 nm
Power
5 mW
(Ø)
22 mm
Highlights & Details
Line laser, red, 650nm, 5mW, 10°, Laser class 2M, focus 1m, 3V DC, 22x120mm, axis parallel, Battery operation
- Laser category: 2M
- Emission characteristics: Line
Technical specifications
- Material: Aluminium
- Optical power 5 mW
- Lifetime 10,000 h
- Operating temperature: - 20 °C to 50 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Line
- Class 2M laser
- Divergence B-0.3 mrad
- Aperture angle: 10 °
- 1 m operating distance
- Optics: Anti-reflex coated glass lenses
- Laser technology: Single mode diode
- Focus: Fixed (1000mm)
- Potential of the enclosure: VDD(+)

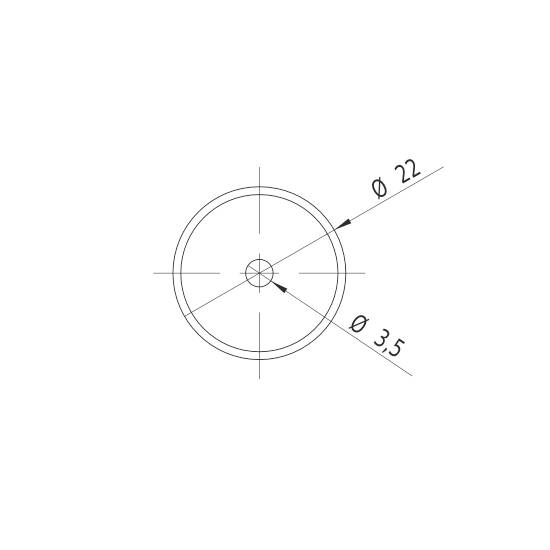

- Outlet diameter of optical 3.5 mm
- Black enclosure
- Product type
Line laser level
- Emission characteristics
Line
- Focus properties
1000 mm fixed-focus
- Wavelength
650 nm
5 mW
- (Ø)
22 mm
- Length
120 mm
- Laser category
2M
- Angular aperture
10°
- Beam divergence
0.3 mrad
- Clearance
1 m
- Operating voltage
3 V DC
- Operating current
20 mA
- Material
Aluminium
- Dim

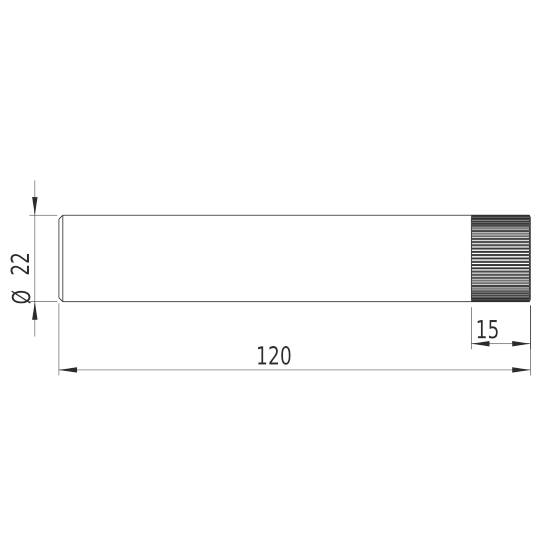

(Ø x H) 22 mm x 120 mm
- Weight
94.6 g
- RoHS-compliant
Yes
- Width
22 mm
- Height
120 mm
- Max. temperature
50 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987473 Picotronic Line laser level Line 5 mW
Information
Information 2987473 Picotronic Line laser level Line 5 mW
Conformity certificate
Conformity certificate 2987473 Picotronic Line laser level Line 5 mW
Description
Features
- Line laser, red, 650nm, 5mW, 10°, Laser class 2M, focus 1m, 3V DC, 22x120mm, axis parallel, Battery operation

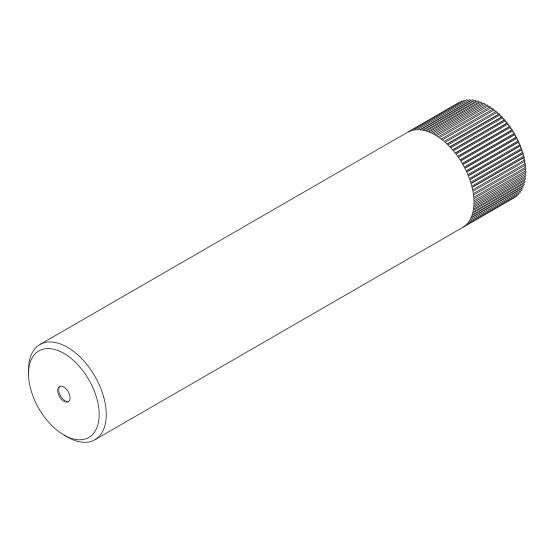

- Type LB650-5-3(22x120)10DEG-AP-F1000 is a laser for projection of a red laser line. The laser module emits 650nm wavelength radiation. The module requires a battery (CR123A), which is included in the delivery and enables a wireless operation over several hours. The laser has a compact design (22x120mm). Press the switch at the end of the laser module once and the laser is switched on permanently. Repeated operation switches off the laser again. At a working distance of 1m, the opening angle (10°) generates a laser line length of 0.17m. For applications in industry, trade, hobby or show sector. This module is in the class 2M laser.

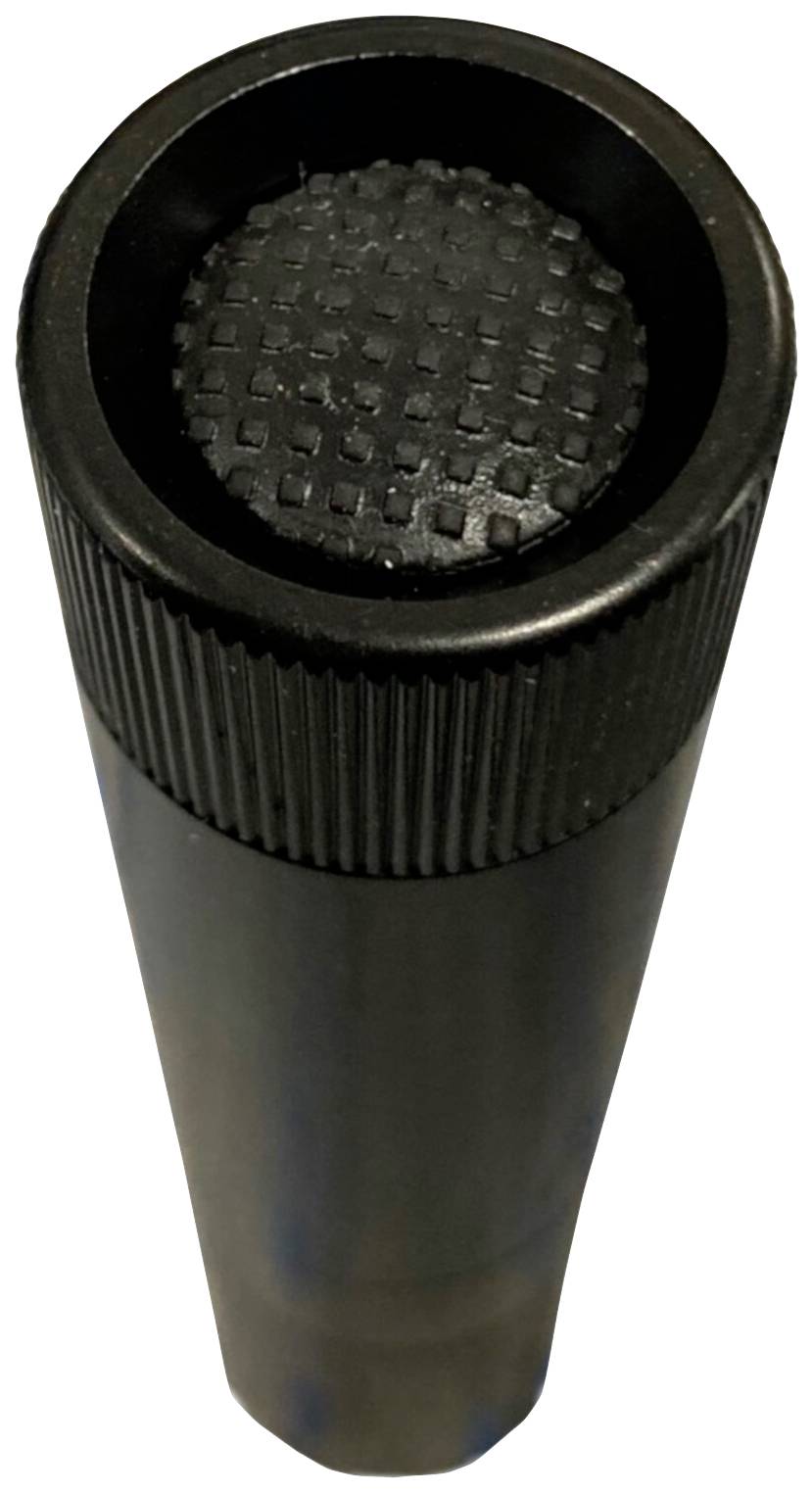

- Latch switch: Press the switch at the end of the laser module once and the laser is permanently switched on. Repeated operation switches off the laser again.
- Radiation characteristics: Line, line thickness 1mm@1m
- Optical output: 5mW (laser class 2M); focus: 1m
- Compact design: 22x120mm; opening angle: 10°; axis deviation up to 1.0°; the opening angle (10°) produces a laser line length of 0.17m at a working distance of 1m.
- For marking and positioning of objects and applications in industry, trade, hobby or show sector. A CR123A battery is required for operation (included).

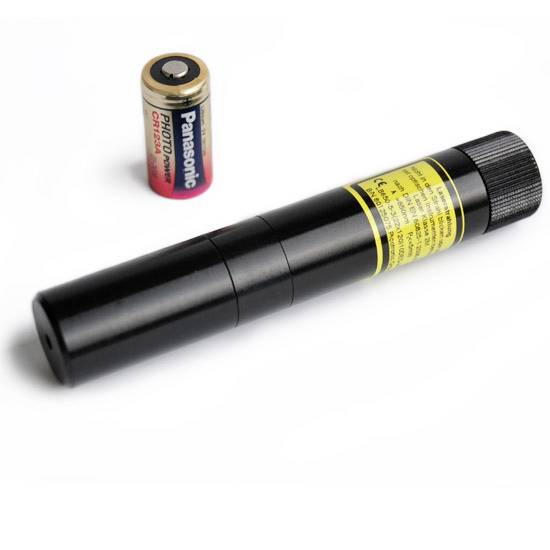

- Delivery includes a CR123A type battery.
- This text is machine translated.
