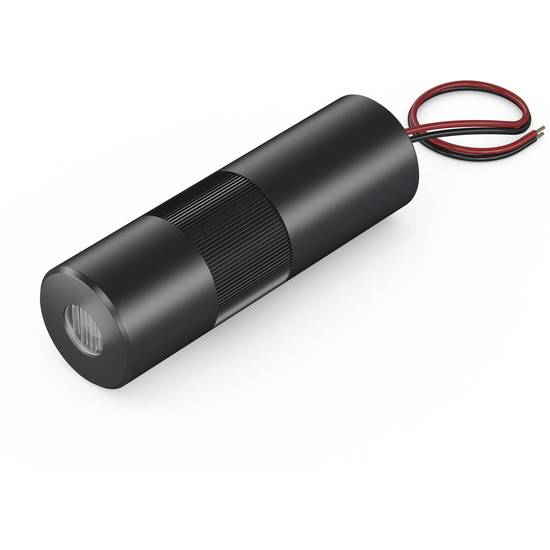

Picotronic Line laser level Line 5 mW
EAN:
Part number:
Item no:
Product type
Line laser level
Emission characteristics
Line
Wavelength
650 nm
Power
5 mW
(Ø)
4 mm
Highlights & Details
Line laser, red, 650nm, 5mW, 3-5V, 14x45mm, focus adjustable, opening angle 90°, laser class 1, incl. Mains adapter
- Laser category: 1
- Emission characteristics: Line
Technical specifications
- Material: Aluminium
- Optical power 5 mW
- Lifetime 5000 h
- Operating temperature: - 20 °C to 50 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Line
- Class 1 laser
- Divergence C - 0.4 mrad
- Aperture angle: 90 °
- 3 m operating distance
- Optics: Anti-reflex coated glass lenses
- Laser technology: Diode
- Focus adjustable
- Potential of the housing: Isolated
- Cable length 1,130 mm
- Cable type 22AWG, black, 3.6mm
- Outlet diameter of optical 4 mm
- Product type
Line laser level
- Emission characteristics
Line
- Focus properties
Selectable focus
- Wavelength
650 nm
5 mW
- (Ø)
4 mm
- Length
45 mm
- Laser category
1
- Angular aperture
90°
- Beam divergence
0.4 mrad
- Clearance
3 m
- Operating voltage
5 V DC
- Operating current
30 mA
- Material
Aluminium
- Dim
(Ø x L) 4 mm x 45 mm
- Weight
40 g
- RoHS-compliant
Yes
- Width
14 mm
- Max. temperature
50 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987722 Picotronic Line laser level Line 5 mW
Information
Information 2987722 Picotronic Line laser level Line 5 mW
Conformity certificate
Conformity certificate 2987722 Picotronic Line laser level Line 5 mW
Description
Features
- Line laser, red, 650nm, 5mW, 3-5V, 14x45mm, focus adjustable, opening angle 90°, laser class 1, incl. Mains adapter
- The LC650-5-5-F(14x45)-NT is a red line laser with a wavelength of 650nm. This laser module is characterized by its compact design (14x45mm). The service life of the laser module is greater than 5,000 hours. The angle of detection of 90° generates a line of 2m length at a distance of 1m. The accompanying power supply provides a stable and reliable power supply HER. This line laser is used in e.g. leveling devices, laser marking systems and for accurate positioning of objects. For industrial, handicraft, hobby or the show area. This module falls into the laser class 1.
- Radiation characteristic: Line, line thickness can be varied
- Optical power: 5mW (laser class 1); adjustable focus

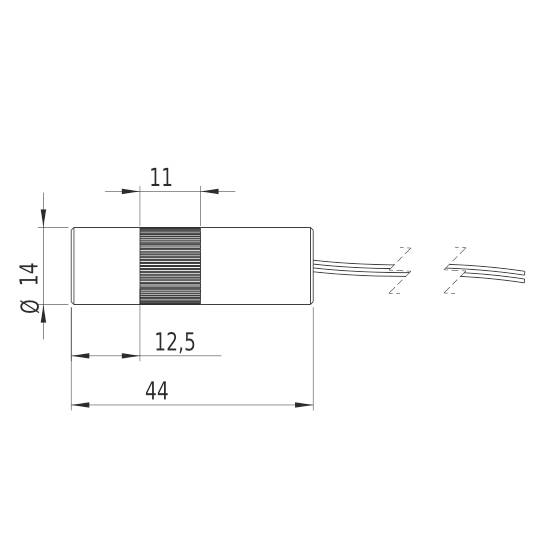

- Compact design: 14x45mm; opening angle: 90°; axis deviation: Up to 3.0°; DC-hollow plug 2.1mm

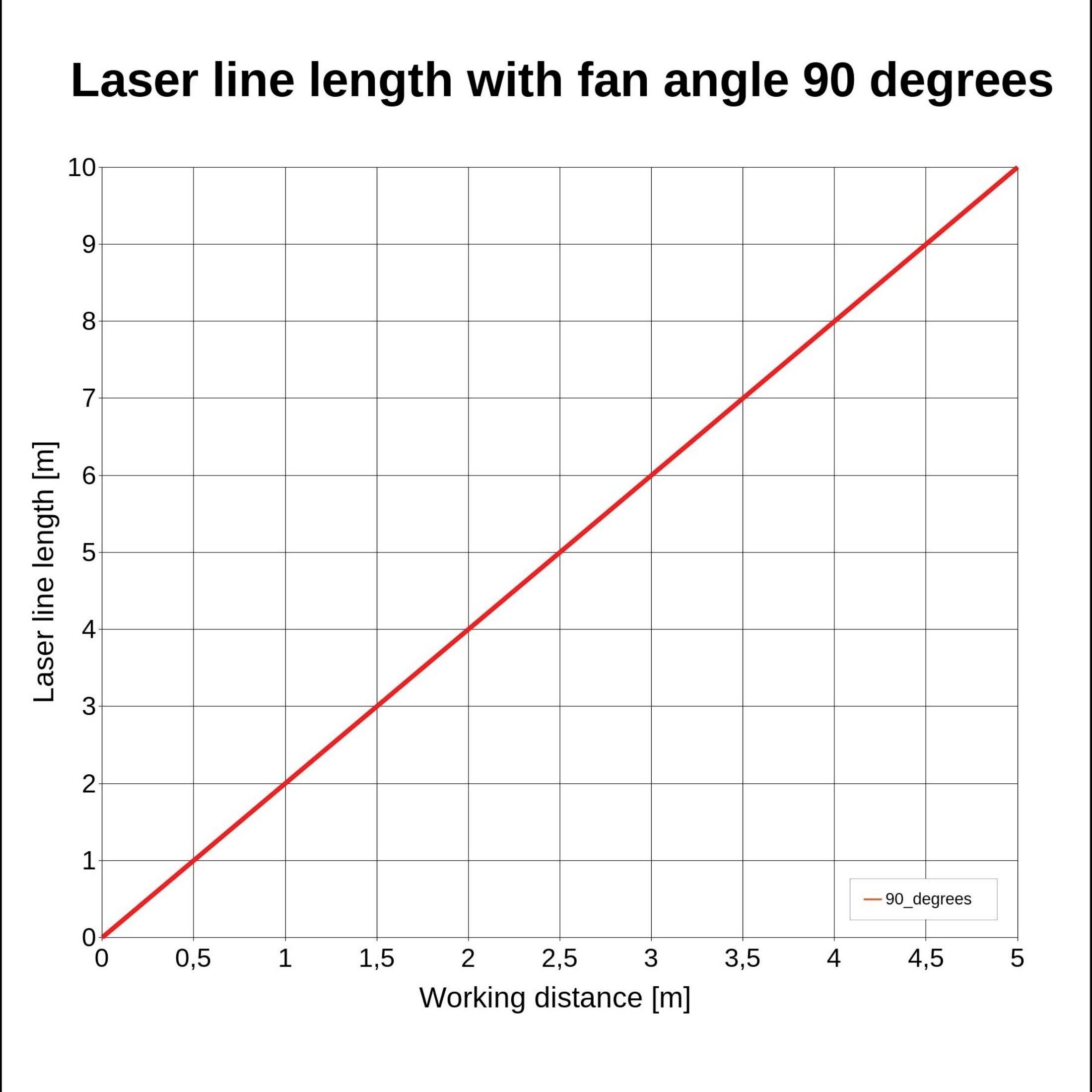

- At a working distance of 1m, the opening angle (90°) generates a laser line length of 2m.
- For applications in e.g. laser spirit levels, laser marking systems, robot technology, hobby and show range. The power supply unit included in the delivery is connected separable with the laser module.

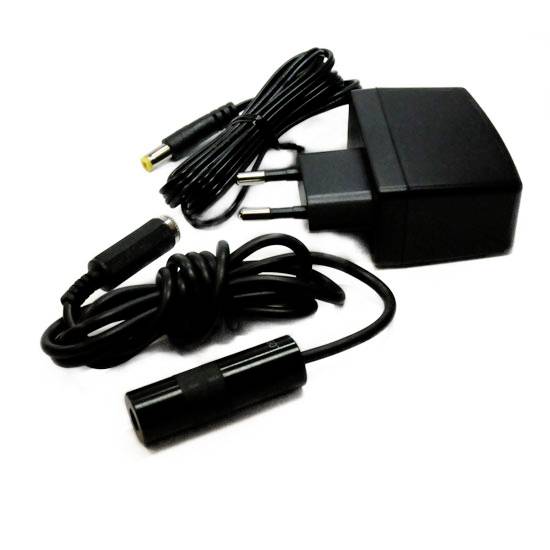

- Including a Picotronic power supply LFNT-5-C.
- This text is machine translated.
