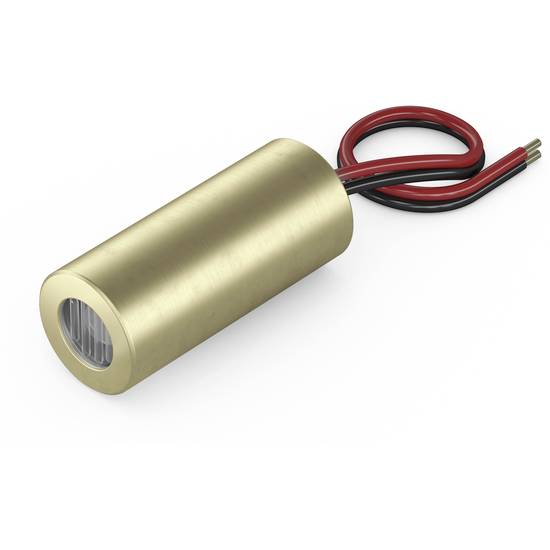

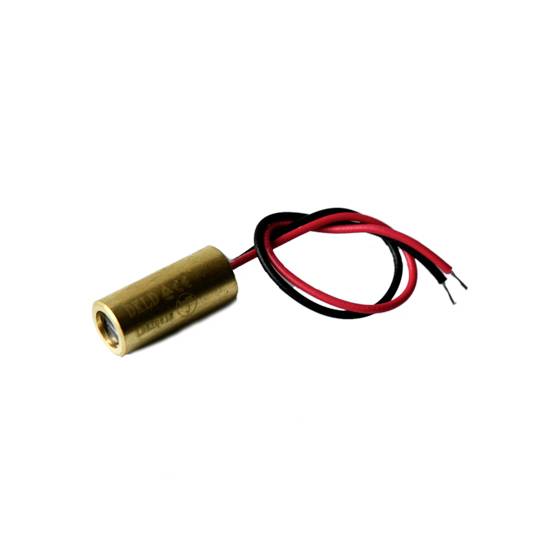

Picotronic Line laser level Line Brass 1 mW
EAN:
Part number:
Item no:
Product type
Line laser level
Emission characteristics
Line
Wavelength
650 nm
Power
1 mW
(Ø)
9 mm
Highlights & Details
Line laser module, 90°, red, 650nm, 1mW, 3-5V DC, 9x26mm, class 1
- Brass
- Laser category: 1
- Emission characteristics: Line
Technical specifications
- Material: Brass
- Optical power 1 mW
- Lifetime 10,000 h
- Operating temperature 15°C - 30 °C
- Storage temperature: -20°C to 60 °C.
- Beam form: Line
- Class 1 laser
- Divergent: H - 1.0 mrad
- Aperture angle: 90 °
- 1 m operating distance
- Acrylic lens
- Laser technology: Single mode diode
- Focus: Fixed (1000mm)
- Focus: Fixed (1000mm)
- Cable color GND: Black
- Cable length 115 mm
- Cable type: 26AWG, 0.14mm²
- Housing color: Brass
- Product type
Line laser level
- Emission characteristics
Line
- Focus properties
1000 mm fixed-focus
- Factory colour
Brass
- Wavelength
650 nm
1 mW
- (Ø)
9 mm
- Length
26 mm
- Laser category
1
- Angular aperture
90°
- Beam divergence
1.0 mrad
- Clearance
1 m
- Operating voltage
3 V DC
- Operating current
30 mA
- Material
Brass
- Dim
(Ø x L) 9 mm x 26 mm
- Weight
6 g
- RoHS-compliant
Yes
- Max. temperature
60 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987640 Picotronic Line laser level Line Brass 1 mW
Information
Information 2987640 Picotronic Line laser level Line Brass 1 mW
Conformity certificate
Conformity certificate 2987640 Picotronic Line laser level Line Brass 1 mW
Description
Features
- Line laser module, 90°, red, 650nm, 1mW, 3-5V DC, 9x26mm, class 1
- Operating voltage 3 V DC
- Laser Class 1
- Compact design
- Preset focus
- This text is machine translated.
