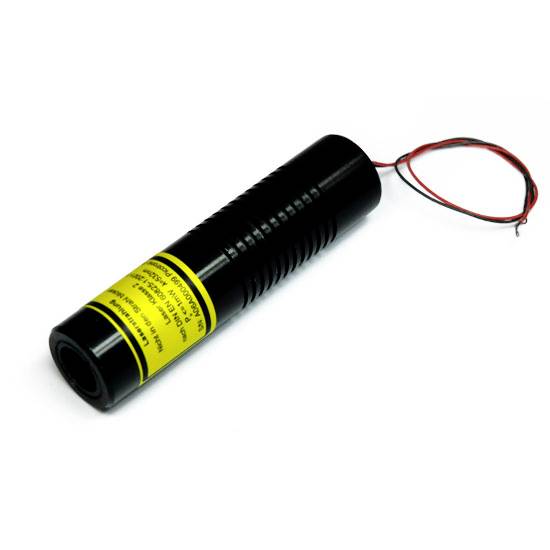

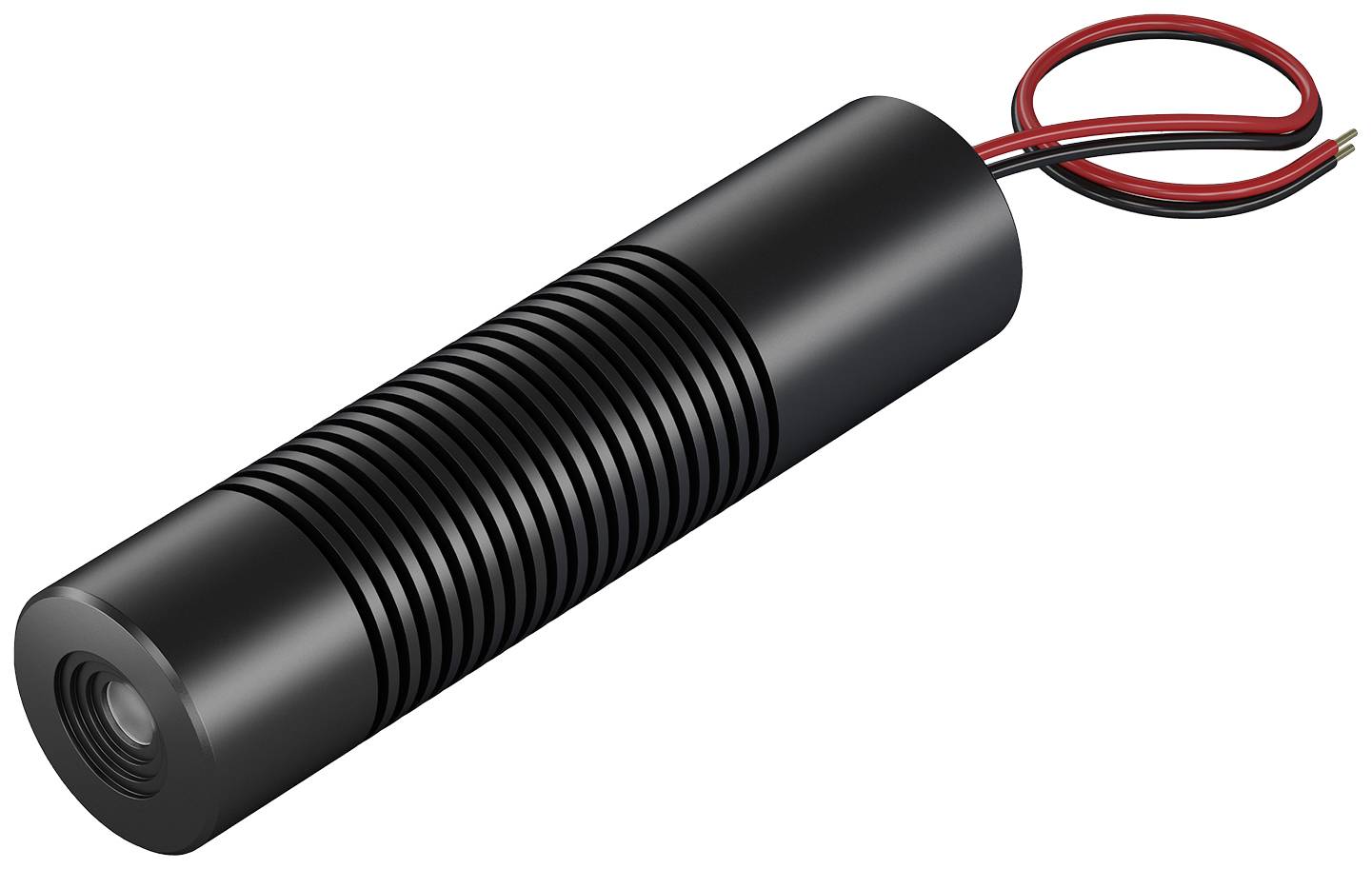

Picotronic Plumb dot laser
EAN:
Part number:
Item no:
Product type
Plumb dot laser
(Ø)
20 mm
Length
80 mm
Laser category
3R
Operating voltage
3 V DC
Highlights & Details
Insulated point laser module, green, 532nm, 5mW, 3V DC, 20x80mm, class 3R
- Laser category: 3R
Technical specifications
- Material: Aluminium
- Optical power 5 mW
- Lifetime 5000 h
- Operating temperature 15°C - 30 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Point
- Laser class 3R
- Divergence D - 0.5 mrad
- 50 m operating distance
- Optics: Anti-reflex coated glass lenses
- Laser technology: Solid state (YVO4+KTP)
- Focus: Collides
- Potential of the housing: Isolated
- Potential of the housing: IsoletFocus: Collimated
- Cable color GND: Blue
- Cable length 100 mm
- Cable type Belden 1007 26AWG
- Outlet diameter of optical 5 mm
- Black enclosure
- Beam diameter 4 mm
- Product type
Plumb dot laser

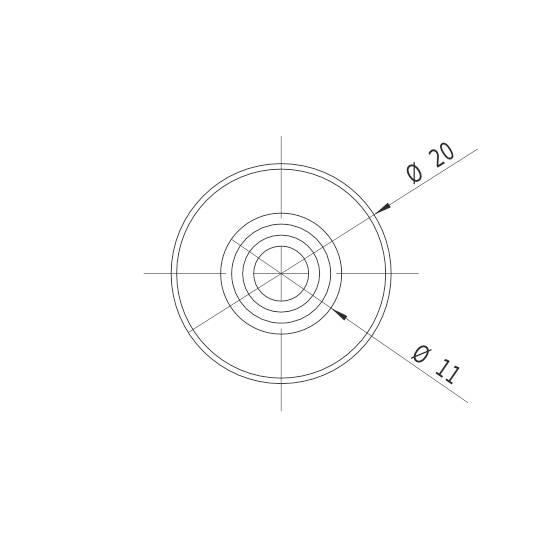

- (Ø)
20 mm
- Length
80 mm
- Laser category
3R
- Operating voltage
3 V DC
- Operating current
200 mA
- Material
Aluminium

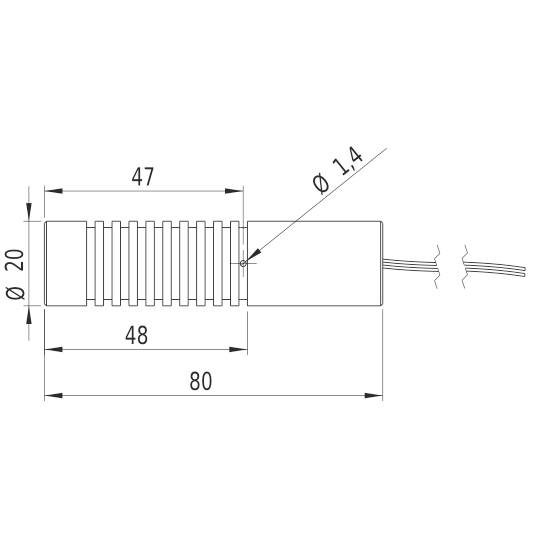

- Dim
(Ø x L) 20 mm x 80 mm
- Weight
60 g
- RoHS-compliant
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987345 Picotronic Plumb dot laser
Information
Information 2987345 Picotronic Plumb dot laser
Conformity certificate
Conformity certificate 2987345 Picotronic Plumb dot laser
Description
Features
- Insulated point laser module, green, 532nm, 5mW, 3V DC, 20x80mm, class 3R
- Class 3R laser
- Operating voltage: 3 V DC
- Compact design
- Preset focus
- Image processing
