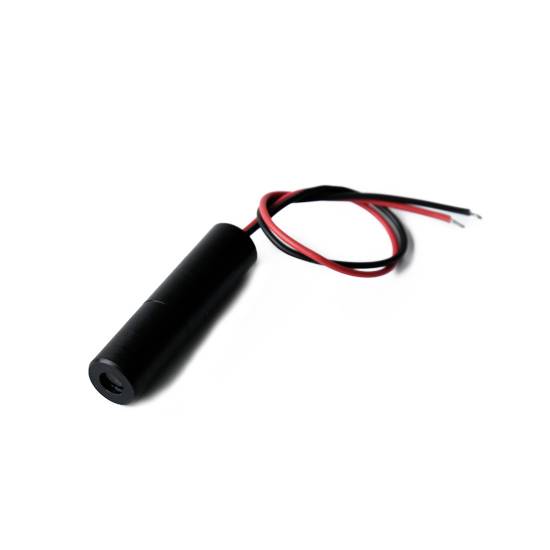

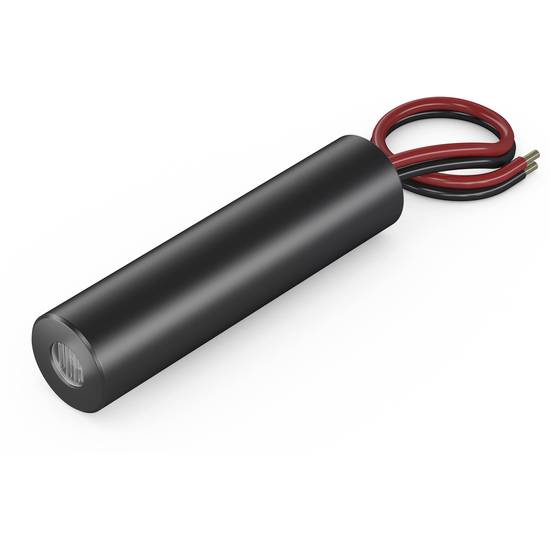

Picotronic Plumb dot laser
EAN:
Part number:
Item no:
Product type
Plumb dot laser
(Ø)
16 mm
Length
45 mm
Laser category
3B
Operating voltage
5 V DC
Highlights & Details
Insulated point laser module, red, 650nm, 30mW, 5V DC, 16x45 mm, Laser class 3B
- Laser category: 3B
Technical specifications
- Material: Aluminium
- Optical power 30 mW
- Lifetime 5000 h
- Operating temperature: - 20 °C to 50 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Point
- Class 3B laser
- Divergence B-0.3 mrad
- 100 m operating distance
- Optics: Anti-reflex coated glass lenses
- Laser technology: Single mode diode
- Focus: Collides
- Potential of the housing: Isolated
- Potential of the housing: IsoletFocus: Collimated
- Cable color GND: Black
- Cable length 100 mm
- Cable type Belden 1007 26AWG
- Outlet diameter of optical 4.5 mm
- Black enclosure
- Product type
Plumb dot laser
- (Ø)
16 mm
- Length
45 mm
- Laser category
3B
- Operating voltage
5 V DC
- Operating current
100 mA
- Material
Aluminium
- Dim
(Ø x L) 16 mm x 45 mm
- Weight
20 g
- RoHS-compliant
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987441 Picotronic Plumb dot laser
Information
Information 2987441 Picotronic Plumb dot laser
Conformity certificate
Conformity certificate 2987441 Picotronic Plumb dot laser
Description
Features
- Isolated point laser module, red, 650nm, 30mW, 5V DC, 16x45 mm, Laser class 3B
- Operating voltage: 5 V DC
- Image processing
- Compact design
- Class 3B laser
