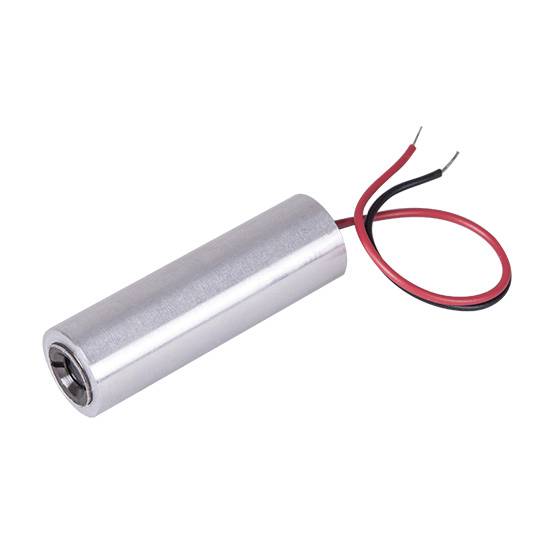

Picotronic Plumb dot laser
EAN:
Part number:
Item no:
Product type
Plumb dot laser
Length
21 mm
Laser category
2
Operating voltage
4.5 V DC
Operating current
25 mA
Highlights & Details
Insulated point laser module, red, 650nm, 1mW, 5V DC, 7x21mm, class 2, 10000h lifetime MTTF @ 25°C.
- Laser category: 2
Technical specifications
- Material: Aluminium
- Optical power 1 mW
- Lifetime 10,000 h
- Operating temperature 15°C - 30 °C
- Storage temperature: -20°C to 60 °C.
- Beam form: Point
- Class 2 laser
- Divergence E-0.6 mrad
- 5 m operating distance
- Acrylic lens
- Laser technology: Single mode diode
- Focus: Collides
- Potential of the enclosure: VDD(+)
- Potential of the enclosure: VDD(+)Focus: Collimated
- Cable color GND: Black
- Cable length 127 mm
- Cable type: 26AWG, 0.14mm²
- Outlet diameter of optical 5.5 mm
- Housing color: Silver
- Product type
Plumb dot laser
- Length
21 mm
- Laser category
2
- Operating voltage
4.5 V DC
- Operating current
25 mA
- Material
Aluminium
- Dim
(L x W) 21 mm x 7 mm
- Weight
3.5 g
- RoHS-compliant
Yes
- Width
7 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987506 Picotronic Plumb dot laser
Information
Information 2987506 Picotronic Plumb dot laser
Conformity certificate
Conformity certificate 2987506 Picotronic Plumb dot laser
Description
Features
- Isolated point laser module, red, 650nm, 1mW, 5V DC, 7x21mm, class 2, 10000h lifetime MTTF @ 25°C.
- This text is machine translated.
