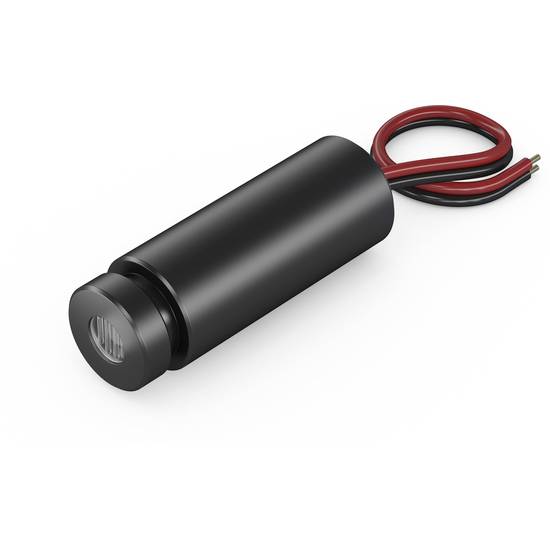

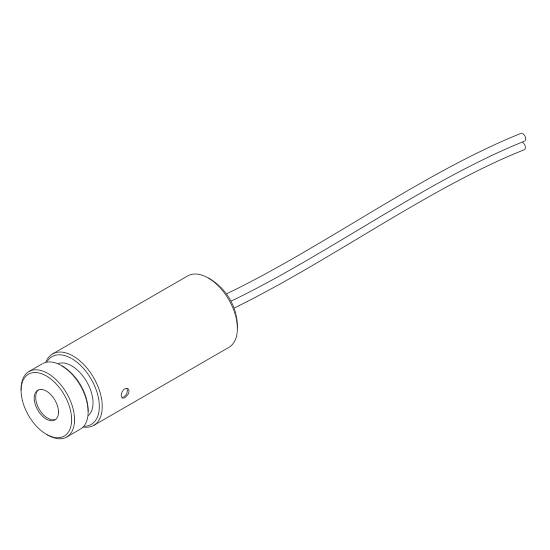

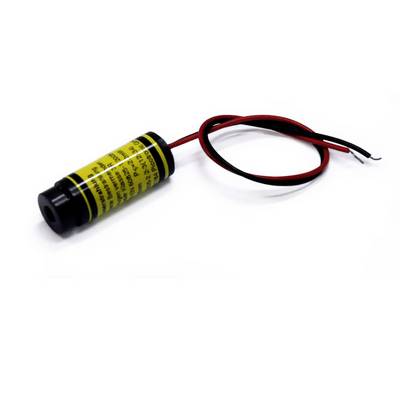

Picotronic Plumb dot laser
EAN:
Part number:
Item no:
Product type
Plumb dot laser
(Ø)
12 mm
Length
34 mm
Laser category
3R
Operating voltage
3 V DC
Highlights & Details
Adjustable isolated point laser module, red, 650nm, 3mW, 3V DC, 12x34mm, class 3R
- Laser category: 3R
Technical specifications
- Material: Brass
- Optical power 3 mW
- Lifetime 5000 h
- Operating temperature: - 20 °C to 50 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Point
- Laser class 3R
- Divergence G - 0.8 mrad
- 50 m operating distance
- Optics: Anti-reflex coated glass lenses
- Laser technology: Single mode diode
- Focus adjustable
- Potential of the housing: Isolated
- Potential of the housing: IsoletFocus: Adjustable
- Cable color GND: Black
- Cable length 100 mm
- Cable type: 26AWG, 0.14mm²

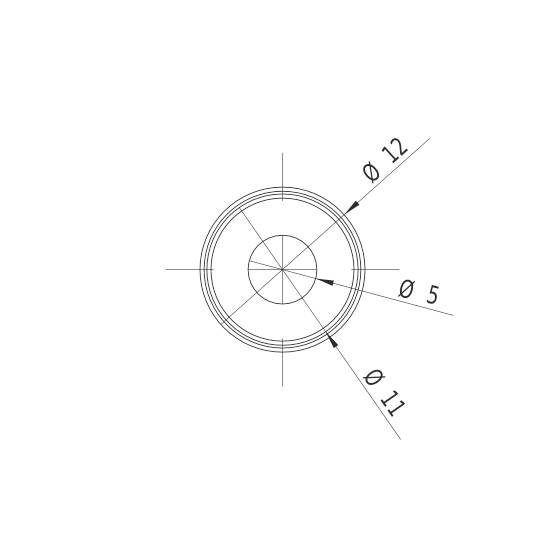

- Outlet diameter of optical 5 mm
- Black enclosure
- Product type
Plumb dot laser
- (Ø)
12 mm
- Length
34 mm
- Laser category
3R
- Operating voltage
3 V DC
- Operating current
25 mA
- Material
Brass

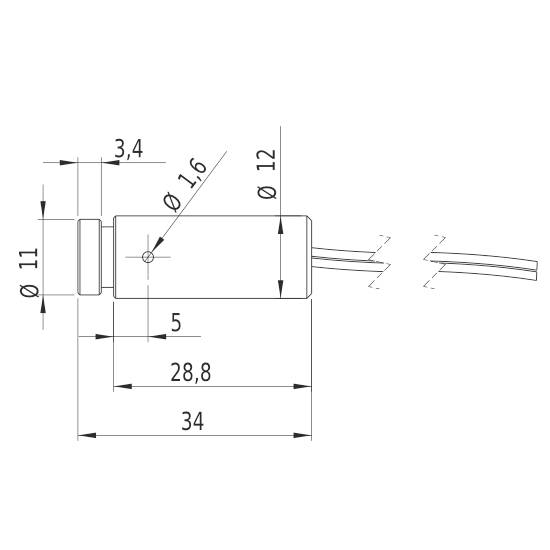

- Dim
(Ø x L) 12 mm x 34 mm
- Weight
18 g
- RoHS-compliant
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987552 Picotronic Plumb dot laser
Information
Information 2987552 Picotronic Plumb dot laser
Conformity certificate
Conformity certificate 2987552 Picotronic Plumb dot laser
Description
Features
- Adjustable isolated point laser module, red, 650nm, 3mW, 3V DC, 12x34mm, class 3R
- Operating voltage: 3 V DC
- Class 3R laser
- Anti-reflex coated glass lenses
- Focus adjustable
- Compact design
