1/2

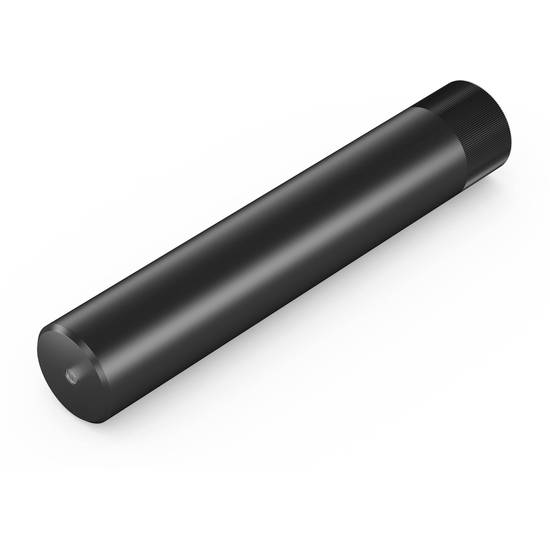

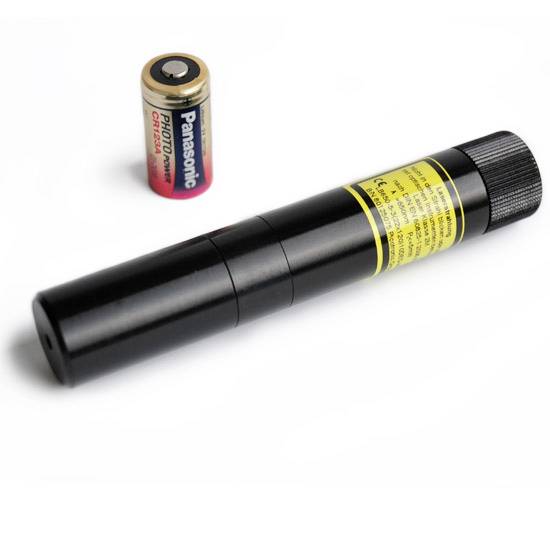

Picotronic Plumb dot laser
EAN:
Part number:
Item no:
Product type
Plumb dot laser
(Ø)
22 mm
Length
112 mm
Laser category
3R
Operating voltage
3 V DC
Highlights & Details
DOE laser module, red, 635nm, 5mW, 3V DC, 22x112mm, Class 3R
- Laser category: 3R
Technical specifications
- Material: Aluminium
- Optical power 5 mW
- Lifetime 10,000 h
- Operating temperature: - 20 °C to 50 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Point
- Laser class 3R
- Divergence E-0.6 mrad
- 0.4 m operating distance
- Optics: Anti-reflex coated glass lenses
- Laser technology: Single mode diode
- Focus: Fixed (4.0m)
- Potential of the enclosure: VDD(+)
- Outlet diameter of optical 5 mm
- Black enclosure
- Product type
Plumb dot laser
- (Ø)
22 mm
- Length
112 mm
- Laser category
3R
- Operating voltage
3 V DC
- Operating current
60 mA
- Material
Aluminium
- Dim
(Ø x L) 22 mm x 112 mm
- Weight
87 g
- RoHS-compliant
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987576 Picotronic Plumb dot laser
Information
Information 2987576 Picotronic Plumb dot laser
Conformity certificate
Conformity certificate 2987576 Picotronic Plumb dot laser
Description
Features
- DOE laser module, red, 635nm, 5mW, 3V DC, 22x112mm, Class 3R
- Operating voltage: 3 V DC
- Compact design
- Class 3R laser
- Inclusive 400 g incl. Battery
- Focus adjustable
- This text is machine translated.
