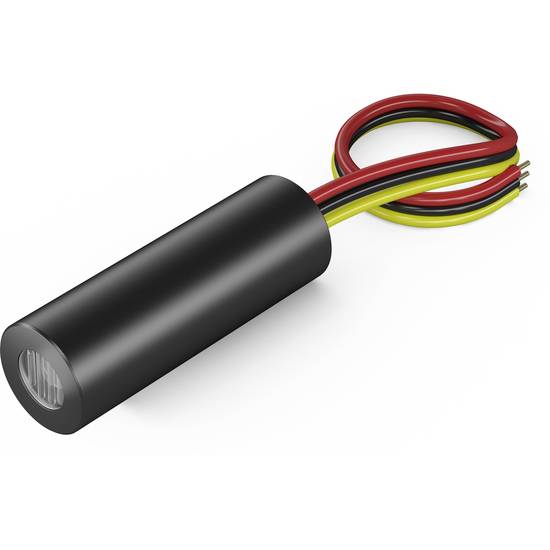

Picotronic Plumb dot laser
EAN:
Part number:
Item no:
Product type
Plumb dot laser
(Ø)
14 mm
Length
45 mm
Laser category
3B
Operating voltage
5 V DC
Highlights & Details
Modular point laser module, red, 658nm, 40mW, 5V DC, 14x45mm, class 3B
- Laser category: 3B
Technical specifications
- Material: Aluminium
- Optical power 40 mW
- Lifetime 5000 h
- Operating temperature: - 20 °C to 50 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Point
- Class 3B laser
- Divergence C - 0.4 mrad
- 10 m operating distance
- Optics: Anti-reflex coated glass lenses
- Laser technology: Single mode diode
- Focus: Collides
- Potential of the housing: Isolated
- Potential of the housing: IsoletFocus: Collimated
- Cable color GND: Black
- Cable length: 250 mm
- Cable type Belden 1007 26AWG

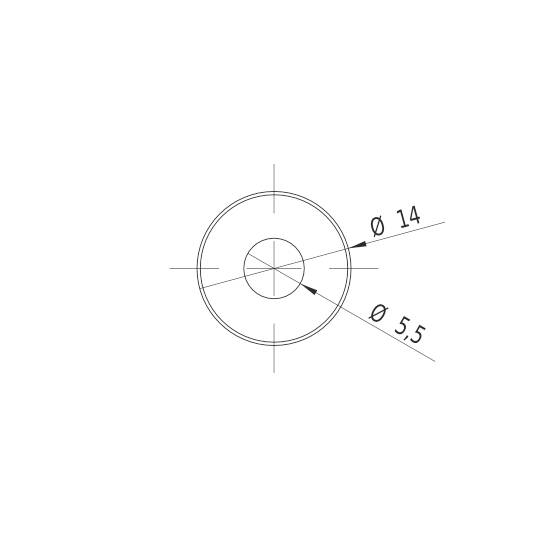

- Outlet diameter of optical 3 mm
- Black enclosure
- Maximum modulation frequency 100 kHz
- Cable color modulation: Yellow
- Product type
Plumb dot laser
- (Ø)
14 mm
- Length
45 mm
- Laser category
3B
- Operating voltage
5 V DC
- Operating current
130 mA
- Material
Aluminium

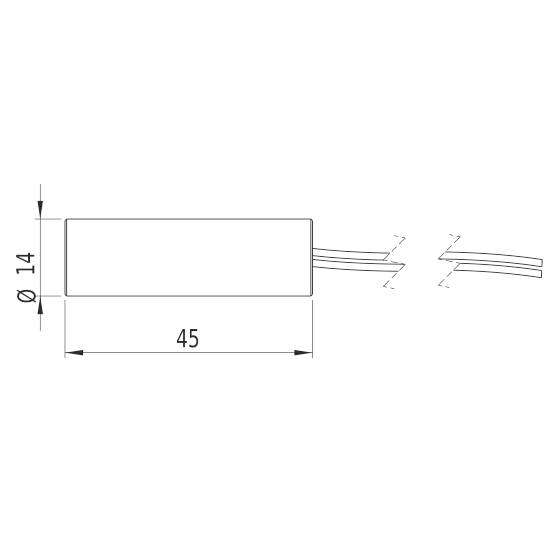

- Dim
(Ø x L) 14 mm x 45 mm
- Weight
22.3 g
- RoHS-compliant
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987613 Picotronic Plumb dot laser
Information
Information 2987613 Picotronic Plumb dot laser
Conformity certificate
Conformity certificate 2987613 Picotronic Plumb dot laser
Description
Features
- Modular point laser module, red, 658nm, 40mW, 5V DC, 14x45mm, class 3B
- Operating voltage: 5 V DC
- Compact design
- High output power
- Class 3B laser
- This text is machine translated.
