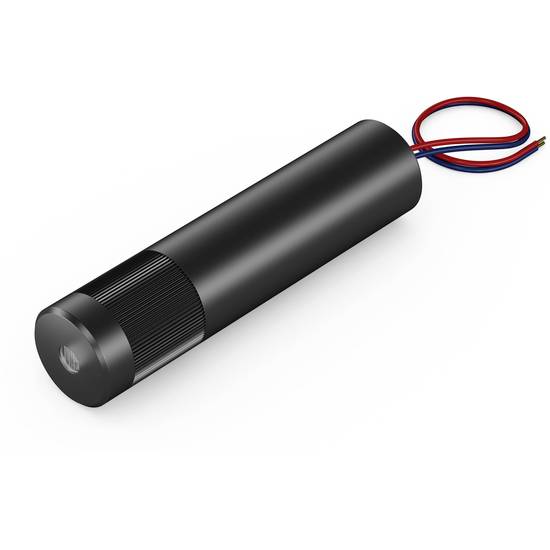

Picotronic Plumb dot laser
EAN:
Part number:
Item no:
Product type
Plumb dot laser
Length
90 mm
Laser category
3B
Operating voltage
3 V DC
Operating current
300 mA
Highlights & Details
Adjustable High Power DOE laser, green, 532nm, 30mW, 3V DC, 20x90mm, class 3B, with connector plug
- Laser category: 3B
Technical specifications
- Material: Aluminium
- Optical power 30 mW
- Lifetime 5000 h
- Operating temperature 15°C - 30 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Point
- Class 3B laser
- Divergence D - 0.5 mrad
- 50 m operating distance
- Optics: Anti-reflex coated glass lenses
- Laser technology: Solid state (YVO4+KTP)
- Focus adjustable
- Potential of the housing: Isolated
- Cable length 200 mm
- Cable type 18AWG, black, 3.6mm
- Outlet diameter of optical 5 mm
- Black enclosure
- Stripping length of cable sleeve 50 mm
- Product type
Plumb dot laser
- Length
90 mm
- Laser category
3B
- Operating voltage
3 V DC
- Operating current
300 mA
- Material
Aluminium

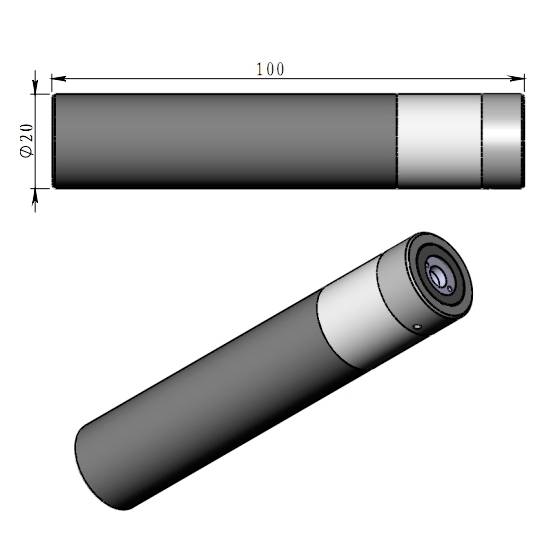

- Dim
(L x W) 90 mm x 20 mm
- Weight
50 g
- RoHS-compliant
Yes
- Width
20 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987636 Picotronic Plumb dot laser
Information
Information 2987636 Picotronic Plumb dot laser
Conformity certificate
Conformity certificate 2987636 Picotronic Plumb dot laser
Description
Features
- Adjustable High Power DOE laser, green, 532nm, 30mW, 3V DC, 20x90mm, class 3B, with connector plug
