Picotronic Plumb dot laser
EAN:
Part number:
Item no:
Product type
Plumb dot laser
(Ø)
9 mm
Length
21 mm
Laser category
3R
Operating voltage
5 V DC
Highlights & Details

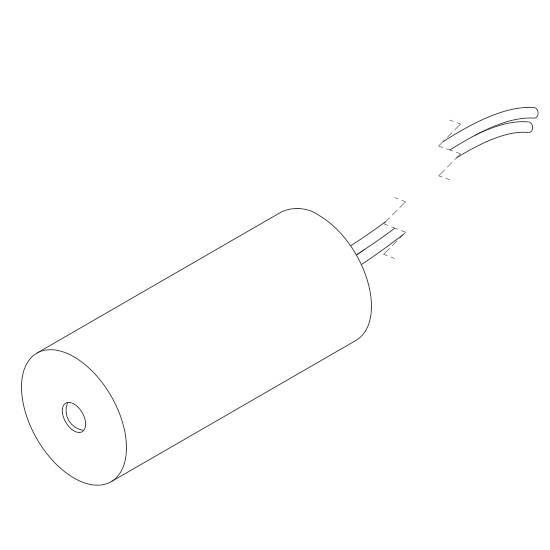

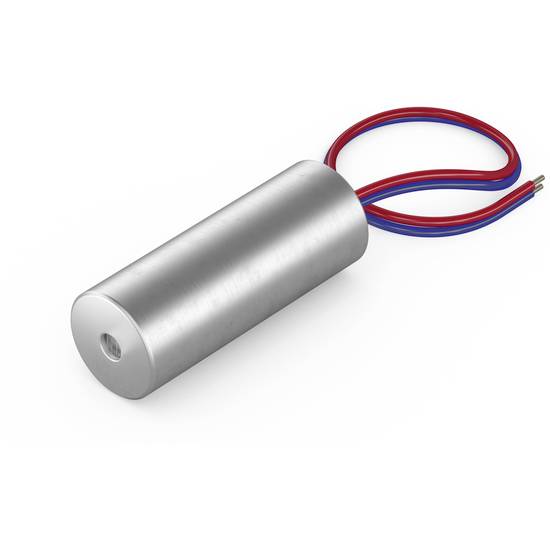

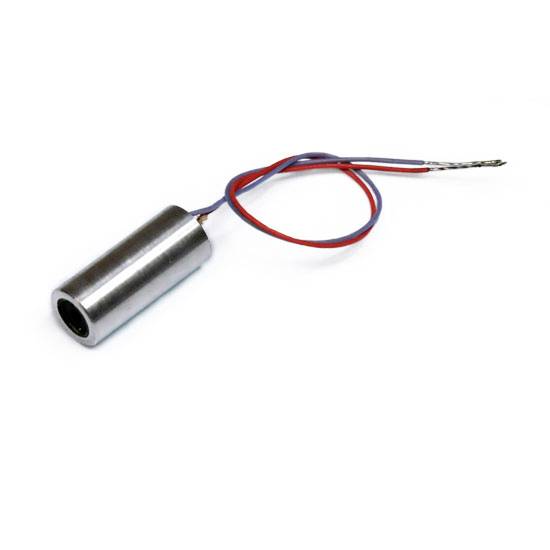

Insulated point laser module, red, 635nm, 5mW, 5V DC, 9x21mm, class 3R, focus 100mm
- Laser category: 3R
Technical specifications
- Material: Aluminium
- Optical power 5 mW
- Lifetime 5000 h
- Operating temperature: - 20 °C to 50 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Point
- Laser class 3R
- Divergence I - 1.5 mrad
- 0.1 m operating distance
- Optics: Anti-reflex coated glass lenses
- Laser technology: Single mode diode
- Focus: Fixed (100 mm)
- Potential of the housing: Isolated
- Potential of the housing: IsoletFocus: Fixed (100mm)
- Cable color GND: Blue
- Cable length 100 mm
- Cable type: 26AWG, 0.14mm²

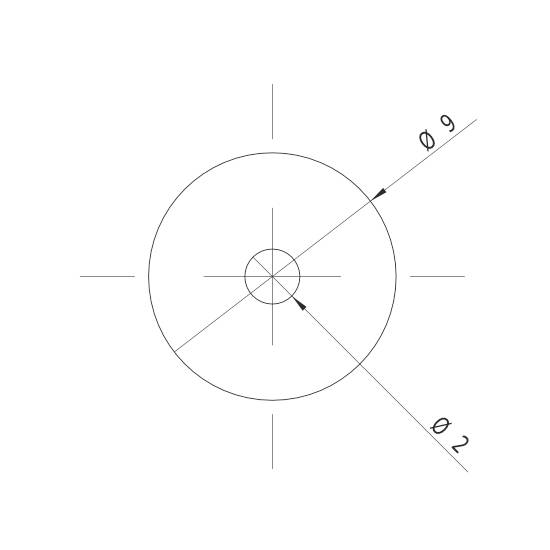

- Outlet diameter of optical 2 mm
- Housing color: Silver
- Beam diameter 2 mm
- Product type
Plumb dot laser
- (Ø)
9 mm
- Length
21 mm
- Laser category
3R
- Operating voltage
5 V DC
- Operating current
60 mA
- Material
Aluminium
- Dim

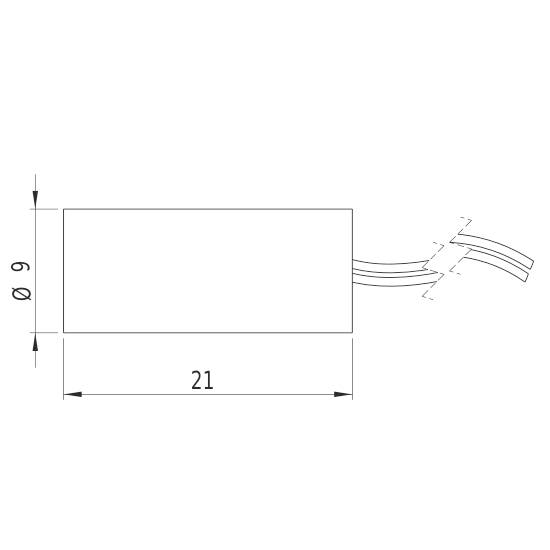

(Ø x L) 9 mm x 21 mm
- Weight
3.5 g
- RoHS-compliant
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987647 Picotronic Plumb dot laser
Information
Information 2987647 Picotronic Plumb dot laser
Conformity certificate
Conformity certificate 2987647 Picotronic Plumb dot laser
Description
Features
- Insulated point laser module, red, 635nm, 5mW, 5V DC, 9x21mm, class 3R, focus 100mm
- Axially parallel housing
- Anti-reflex coated glass lenses
- Small housing design
- Operating voltage: 5 V DC
- Class 3R laser
