Picotronic Plumb dot laser Dot 0.4 mW
EAN:
Part number:
Item no:
Product type
Plumb dot laser
Emission characteristics
Dot
Wavelength
650 nm
Power
0.4 mW
(Ø)
8 mm
Highlights & Details

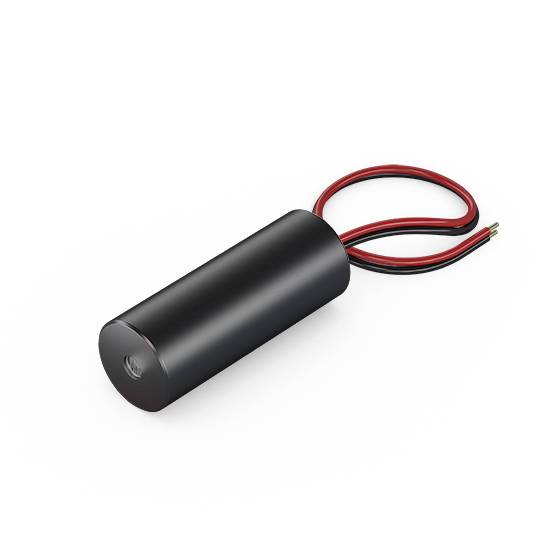

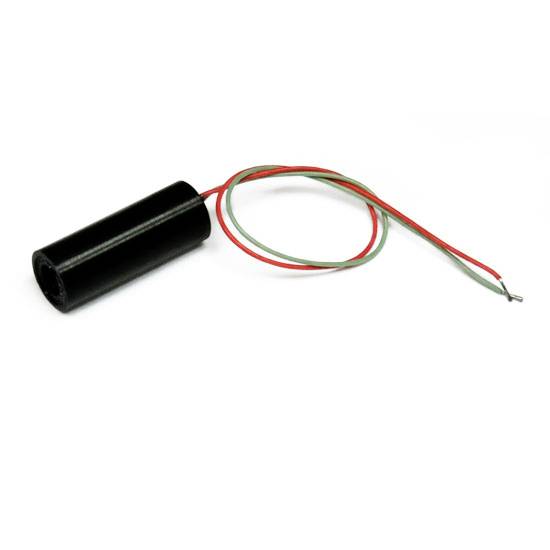

Insulated point laser module, red, 650nm, 0.4mW, 5V DC, 8x21 mm, laser class 1
- Laser category: 1
- Emission characteristics: Dot
Technical specifications
- Material: Aluminium
- Optical power 0.4 mW
- Lifetime 5000 h
- Operating temperature: - 20 °C to 50 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Point
- Class 1 laser
- Divergence I - 1.5 mrad
- 10 m operating distance
- Optics: Anti-reflex coated glass lenses
- Laser technology: Single mode diode
- Focus adjustable
- Potential of the housing: Isolated
- Potential of the housing: IsoletFocus: Adjustable
- Cable color GND: Blue
- Cable length: 150 mm.
- Cable type: AFR200, 0.1mm², 0.78mm

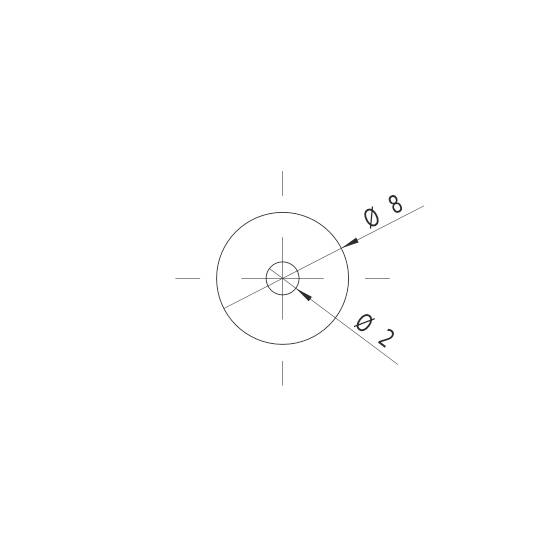

- Outlet diameter of optical 2 mm
- Black enclosure
- Product type
Plumb dot laser
- Emission characteristics
Dot
- Focus properties
adjustable
- Wavelength
650 nm
0.4 mW
- (Ø)
8 mm
- Length
21 mm
- Laser category
1
- Beam divergence
1.5 mrad
- Clearance
10 m
- Operating voltage
5 V DC
- Operating current
18 mA
- Material
Aluminium
- Dim

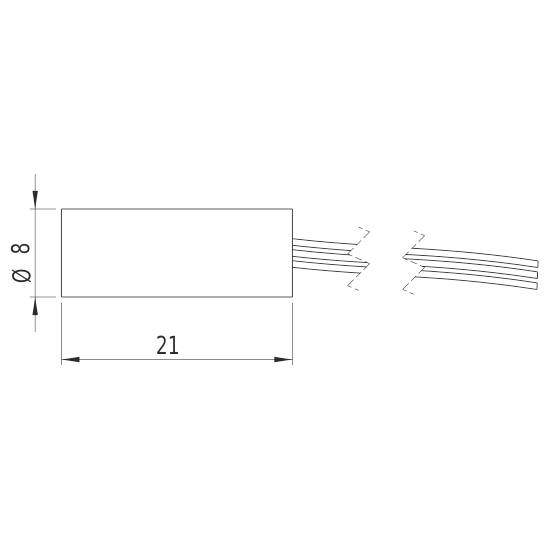

(Ø x L) 8 mm x 21 mm
- Weight
3 g
- RoHS-compliant
Yes
- Max. temperature
50 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987406 Picotronic Plumb dot laser Dot 0.4 mW
Information
Information 2987406 Picotronic Plumb dot laser Dot 0.4 mW
Conformity certificate
Conformity certificate 2987406 Picotronic Plumb dot laser Dot 0.4 mW
Description
Features
- Focusable, isolated point laser module, red, 650nm, 0.4mW, 5V DC, 8x21mm, laser class 1
- Operating voltage: 5 V DC
- Laser Class 1
- Image processing
- Focus adjustable
- Compact design
