Picotronic Plumb dot laser Dot 0.4 mW
EAN:
Part number:
Item no:
Product type
Plumb dot laser
Emission characteristics
Dot
Wavelength
650 nm
Power
0.4 mW
(Ø)
12 mm
Highlights & Details

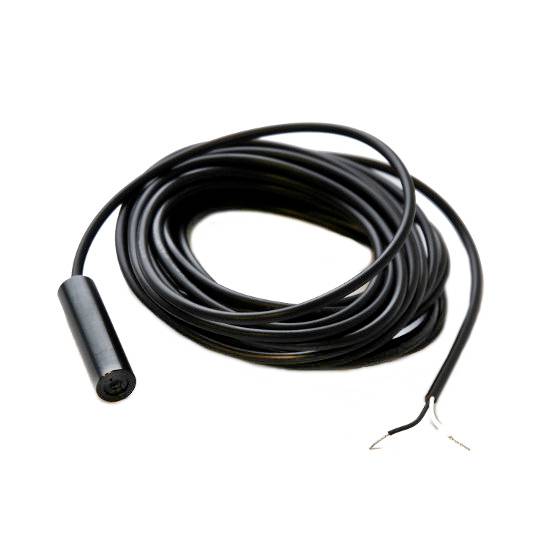

Insulated point laser module, red, 650nm, 0.4mW, 24V DC, 12x45mm, class 1, 10m cable length
- Laser category: 1
- Emission characteristics: Dot
Technical specifications
- Material: Aluminium
- Optical power 0.4 mW
- Lifetime 5000 h
- Operating temperature: - 20 °C to 50 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Point
- Class 1 laser
- Divergence C - 0.4 mrad
- 10 m operating distance
- Optics: Anti-reflex coated glass lenses
- Laser technology: Single mode diode
- Focus: Collides
- Potential of the housing: Isolated
- Potential of the housing: IsoletFocus: Collimated
- Cable color GND: Black
- Cable length 10,000 mm
- Cable type 24AWG, black, 3mm
- Outlet diameter of optical 3.5 mm
- Black enclosure
- Protective lens: No.
- Stripping length of cable sleeve 50 mm
- Beam diameter 3 mm
- Product type
Plumb dot laser
- Emission characteristics
Dot
- Focus properties
collimated
- Wavelength
650 nm
0.4 mW
- (Ø)
12 mm
- Length
45 mm
- Laser category
1
- Beam divergence
0.4 mrad
- Clearance
10 m
- Operating voltage
24 V DC
- Operating current
5 mA
- Material
Aluminium
- Dim
(Ø x H) 12 mm x 45 mm
- Weight
190 g
- RoHS-compliant
Yes
- Width
12 mm
- Height
45 mm
- Max. temperature
50 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987488 Picotronic Plumb dot laser Dot 0.4 mW
Information
Information 2987488 Picotronic Plumb dot laser Dot 0.4 mW
Conformity certificate
Conformity certificate 2987488 Picotronic Plumb dot laser Dot 0.4 mW
Description
Features
- Insulated point laser module, red, 650nm, 0.4mW, 24V DC, 12x45mm, class 1, 10m cable length
- Operating voltage: 24 V DC
- Laser Class 1
- Low power consumption
- Compact design
